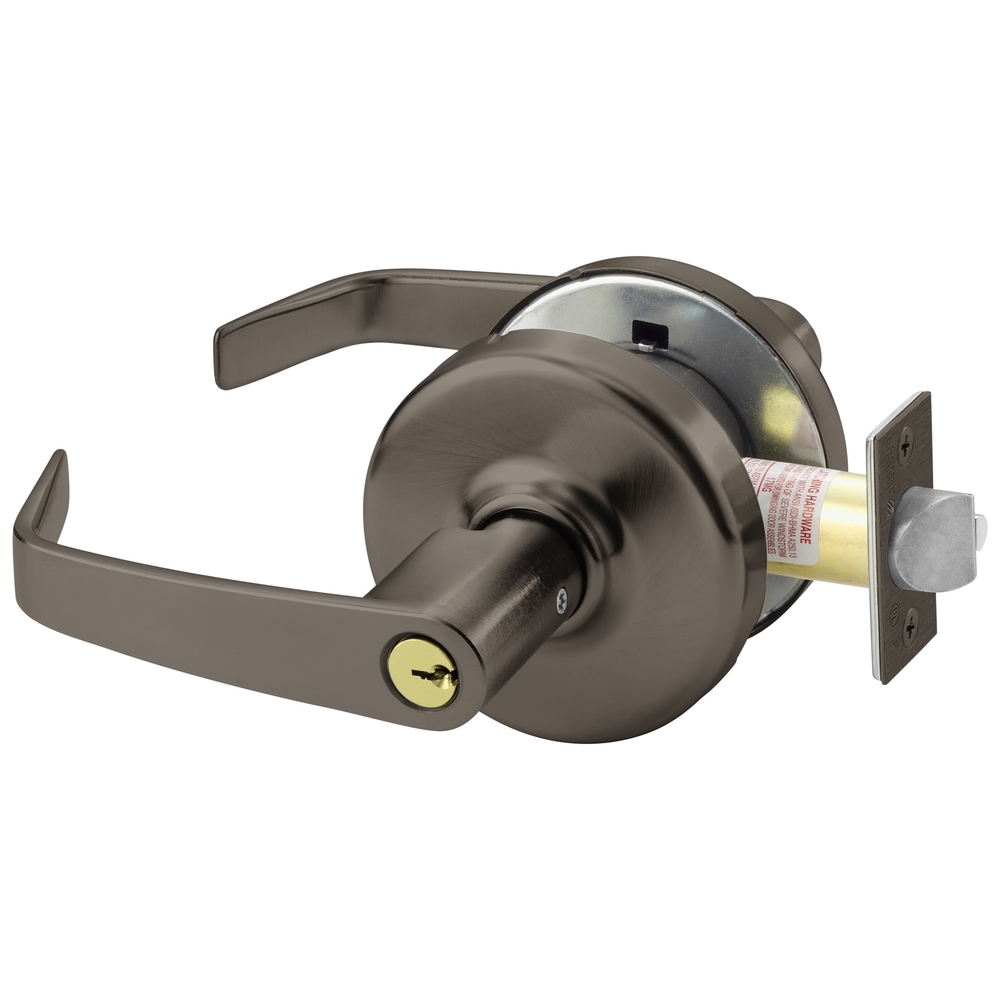

Corbin Russwin CL3151 NZD 613 Grade 1 Entrance Lock offers exceptional security and durability for high-traffic environments. This Grade 1 lever lockset is designed for commercial use, featuring the stylish Newport lever and a conventional cylinder. Its oil-rubbed bronze finish not only provides a classic aesthetic but also offers resistance to wear and tear, making it ideal for institutional and industrial applications. The CL3100 series boasts a robust construction that interlocks aligning and latch tubes, creating a torque-resistant "T" design in critical areas. With 18 available functions, including Hospital Privacy, and a simple cylinder removal for easy changes, this lockset is both versatile and user-friendly. It retrofits most standard 161 cylindrical lock door preparations and is non-handed for straightforward installation. Additional benefits include a 10-year limited warranty, compatibility with existing key systems, and an option for Microshield® antimicrobial coating. The lock is also environmentally friendly, made from 68% post-consumer recycled content and certified with an Environmental Product Declaration (EPD). With a fire rating of 3 hours and UL listing, the Corbin Russwin CL3151 ensures reliable performance in any commercial setting, offering peace of mind with every use.
Grade 1 Entrance/Office Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Oil-Rubbed Bronze Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
Attributes
Ansi: F81
Ansi Function: F81 - Entry/Office
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Function Family: Entrance
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F82
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
