Corbin Russwin CL3155 NZD 613 M08 Grade 1 Classroom Lock offers exceptional functionality and security for high-use environments. This Grade 1 lever lockset features the elegant Newport lever design and is finished in a rich oil-rubbed bronze, ensuring both durability and aesthetic appeal. Designed for commercial use, the CL3100 series is built with top-quality materials to provide long-lasting strength and quiet operation. The lockset is adaptable, accommodating a variety of functions with 18 available options, including Hospital Privacy, and requires minimal parts for changes. Its non-handed design allows for easy installation on doors with a thickness ranging from 1-3/4" to 2". The CL3155 is also engineered to fit standard 161 cylindrical lock door preps, making retrofitting straightforward. With a simple cylinder removal process, changing cores is hassle-free, and the lock integrates seamlessly into existing key systems, accepting Schlage® LFIC cylinders. Additionally, the product is made from 68% post-consumer recycled content, aligning with LEED MR credit 4. Certified with a 10-year limited warranty and UL listed for safety, the Corbin Russwin CL3155 ensures reliable performance for educational and institutional facilities.

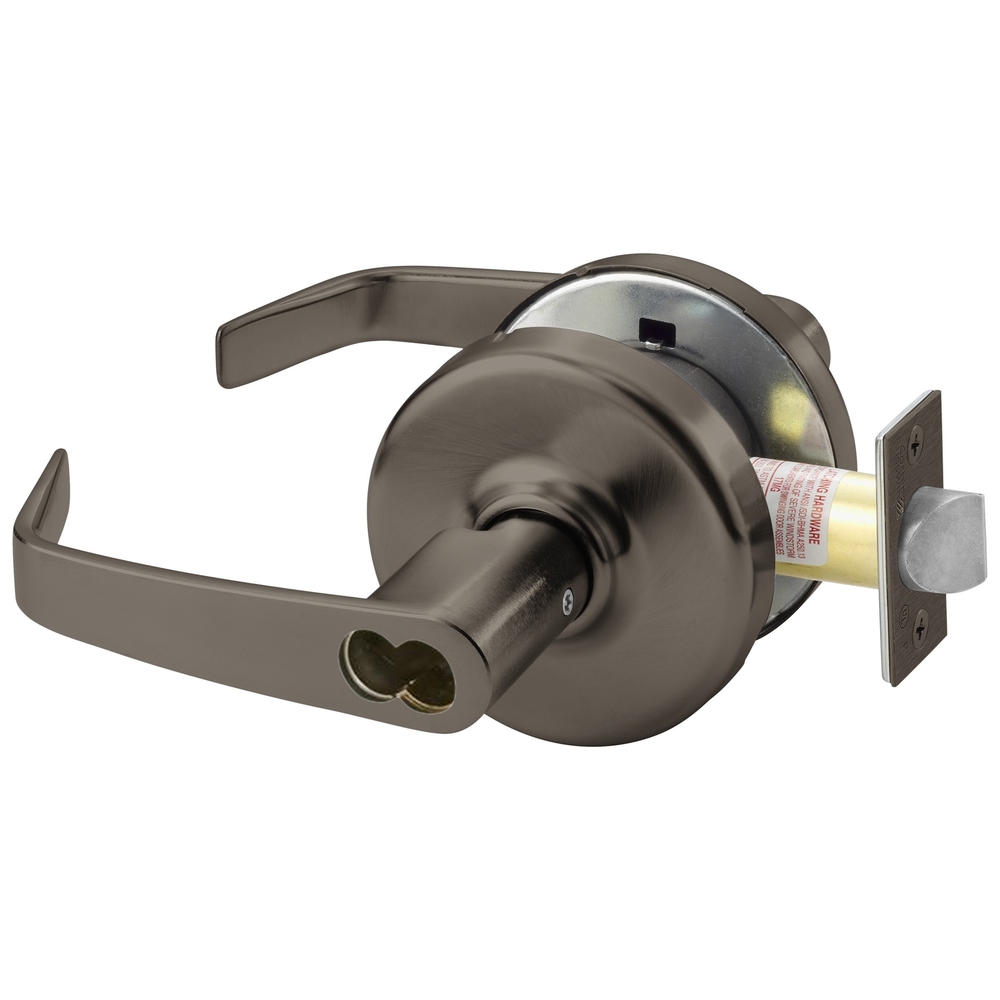

Grade 1 Classroom Cylindrical Lock, Newport Lever, D Rose, SFIC Less Core, Oil-Rubbed Bronze Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
Attributes
Ansi: F84
Ansi Function: F84 - Classroom
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Pins: 7-Jun
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F82
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
