Corbin Russwin CL3157 NZD 606 CL6 Grade 1 Storeroom Lock offers a robust solution for high-traffic areas needing reliable security. This Grade 1 cylindrical lock features a Newport lever design and is finished in a satin brass, providing a sleek, professional aesthetic suitable for commercial environments. Engineered for durability and quiet operation, the CL3100 series is crafted with premium materials, ensuring longevity in demanding settings. Designed with versatility in mind, this non-handed lock can retrofit most standard 161 cylindrical lock preps, accommodating door thicknesses from 1-3/4" to 2". With 18 available functions, including Hospital Privacy, changing the lock's function requires just two additional parts. The simple cylinder removal process further facilitates easy change-outs, enhancing its practicality for users. The Corbin Russwin CL3157 is environmentally friendly, made from 68% post-consumer recycled content and certified with an Environmental Product Declaration (EPD). It integrates seamlessly into existing key systems, accepting Schlage® LFIC cores. Backed by a 10-year limited warranty, this lock is UL Listed and fire-rated for three hours, ensuring compliance with safety standards. Choose the CL3157 for a dependable, stylish locking solution that meets the demands of any storeroom or closet application.

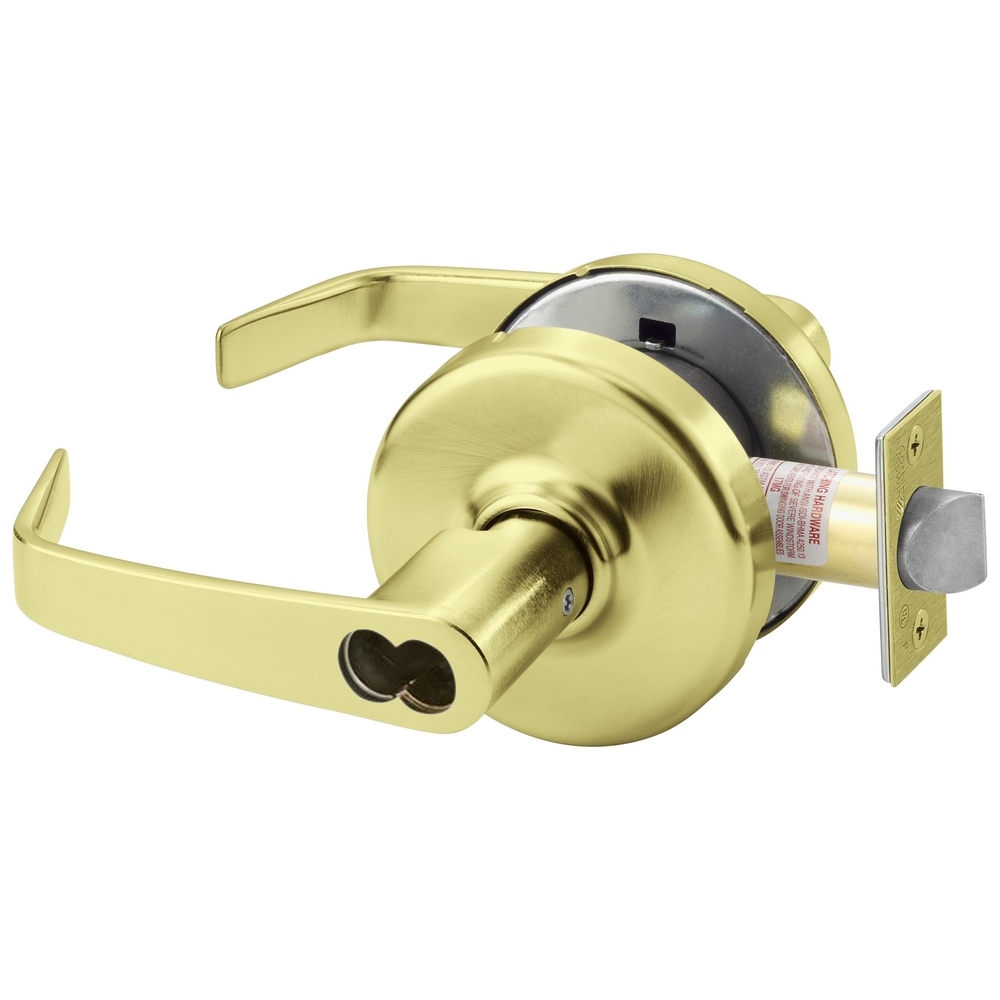

Grade 1 Storeroom/Closet Cylindrical Lock, Newport Lever, D Rose, LFIC Less Core, Satin Brass Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F82
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
