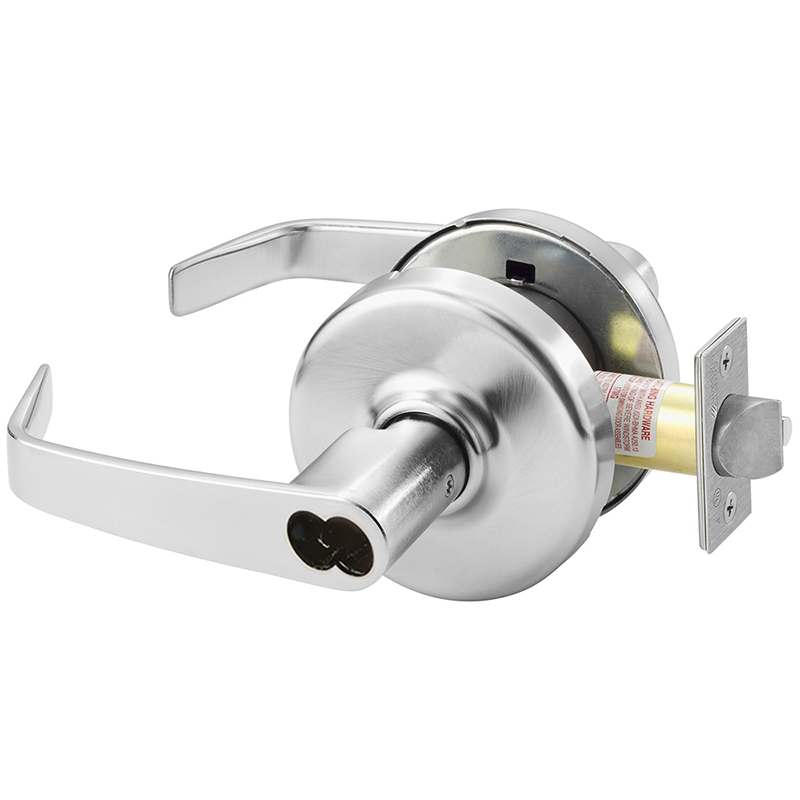

Corbin CL3161NZD626M08 Zinc Newport Lever and D Rose Single Cylinder Office Entry Grade 1 Vandal Resistant Cylindrical Lever Lock with Small Format Best Housing Satin Chrome Finish
Attributes
Ansi: F82A
Ansi Function: F82 - Entry
Ansi Function Description: Entry
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: Zinc Newport Lever and D Rose
Door Thickness: 1-3/4" - 2"
Finish: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 61-Entry or Office
Function Family: Office
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 780F85
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry/Office
Manufacturer Function Description: Operated by deadlocking latchbolt by lever either side except when push button locks outside lever, push button release by turning inside lever or by key in outside lever, closing door does not release push button, inside lever always free.
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Num Pins: 7-Jun
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Pins: 7-Jun
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 2-3/4"
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Combination
Series: CL3100 Series
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F85
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ANSI Curved Lip Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: M08
Structure Function: 61
Structure Latch Number: 780F85
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL31
Structure Strike Number: SA114
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
