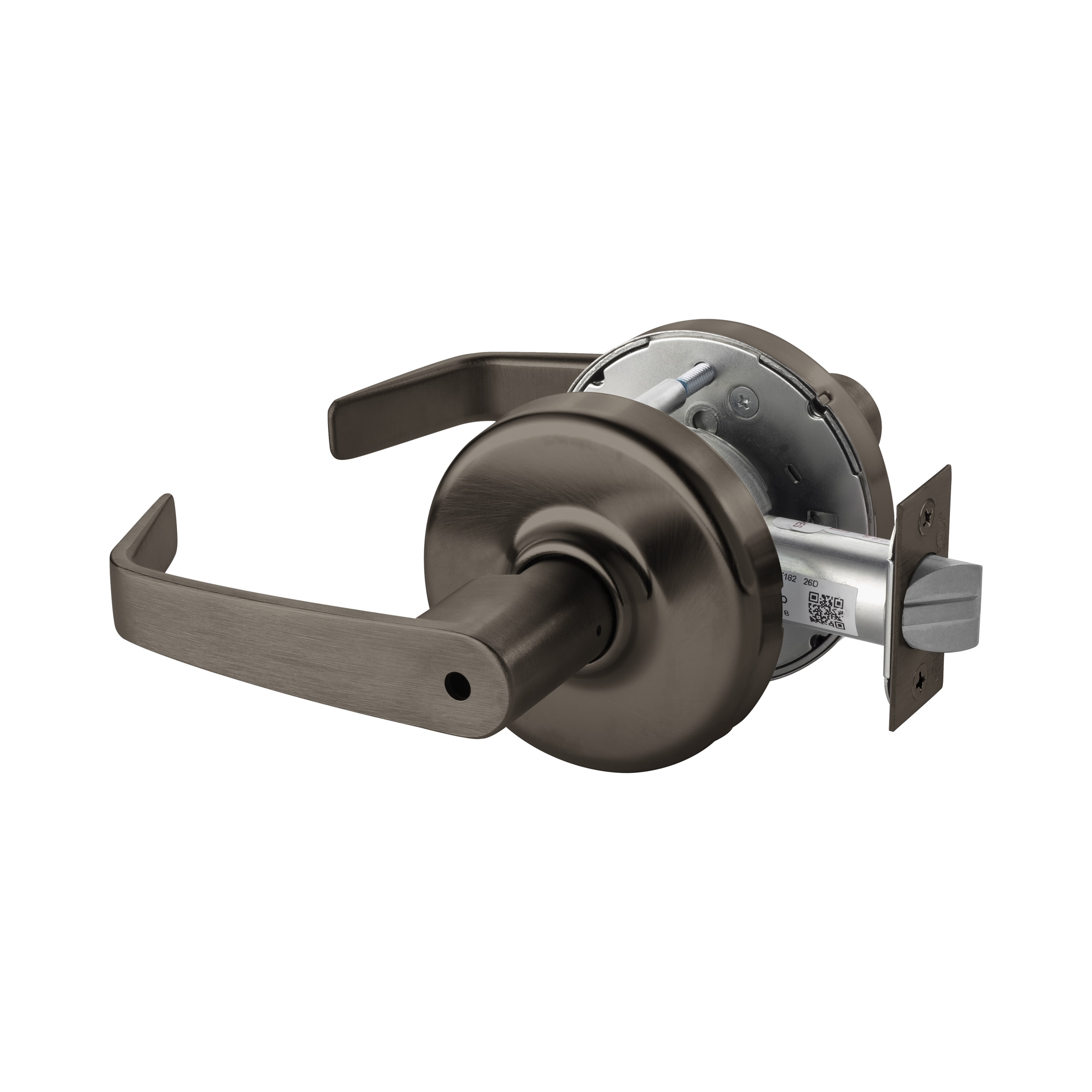

Corbin Russwin CL3320NZD613 Zinc Newport Lever and D Rose Privacy Grade 1 Extra Heavy Duty Cylindrical Lever Lock offers a robust security solution for commercial applications. Designed for doors ranging from 1-3/4" to 2" thick, this lockset features a durable oil-rubbed bronze finish that adds both style and resilience to any setting. The die-cast zinc construction ensures long-lasting performance, making it an ideal choice for high-traffic areas. This privacy lockset operates with a 2-3/4" backset and is equipped with a 2-1/8" crossbore size, including 5/16" thru bolt holes for easy installation. The ANSI curved lip strike complements its functionality, with strike dimensions of 1-1/4" x 4-7/8". The Newport lever design, paired with the elegant D Rose escutcheon, provides an aesthetically pleasing and ergonomic user experience. With a UL and cUL 3-hour rating, the CL3320NZD613 meets stringent safety standards, ensuring peace of mind in any environment. Backed by a limited 7-year warranty, this lockset is a reliable option for those seeking both security and style. Please note that this model has been discontinued, making it a unique find for discerning customers.
Attributes
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore with 5/16" Thru Bolt Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Zinc Newport Lever and D Rose
Discontinued: true
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4 In. - 2 In.
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 20-Privacy Bedroom or Bathroom
Function Family: Privacy
Grade: Grade 1
Hand: Not Handed
Hazardous Material: NO
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 586F18
Latch Type: Throw Off
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Newport
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Privacy
Manufacturer Function Description: Operated throw-off latchbolt by lever, outside lever locked by pushbutton, outside lever unlocked by emergency release tool inside by rotating inside lever or by closing door, inside lever always free.
Manufacturer Warranty: Limited 7 Year Warranty
Material: Die Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Projection: 2-13/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Screws: Combination
Series: CL3300 Series
Strike: ANSI Curved Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Function: 20
Structure Latch Number: 586F18
Structure Outside Finish: 613
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL33
Structure Strike Number: SA114
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL 3 Hour Rated
