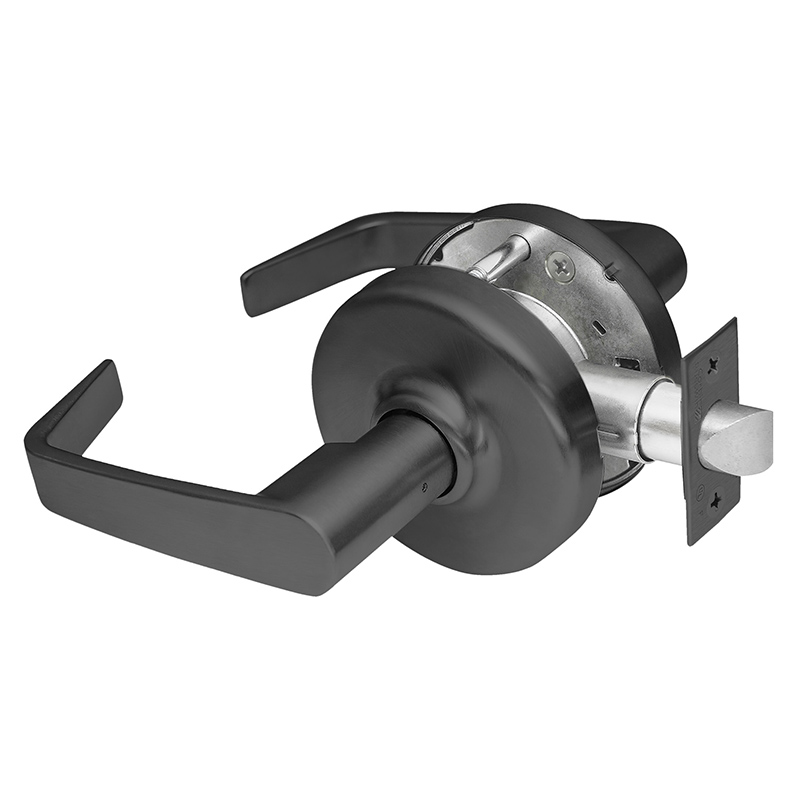

Corbin Russwin CL3810 NZD BSP Grade 2 Passage Latch offers a robust solution for interior spaces that require both function and style. Designed with the Newport lever and finished in a sleek Black Suede Powder Coat, this non-handed cylindrical lockset is perfect for various commercial applications, including offices, closets, multifamily housing, restaurants, and retail environments. This Grade 2 passage latch combines durability and aesthetic appeal, featuring solid cast levers and ANSI Grade 2 certification. Its Lever Release™ technology enhances vandal resistance, ensuring longevity in high-traffic areas. With a UL 3-hour fire rating, it adheres to safety standards while providing peace of mind. Installation is straightforward, accommodating door thicknesses from 1-3/8" to 1-3/4" and covering ANSI/DHI door prep specifications. The independent lever return springs and through-bolted attachments guarantee solid performance and reliability. Packaged with a limited seven-year warranty, the CL3810 NZD is both a practical and stylish choice for commercial settings. Weighing in at 4.1 lbs and featuring a bolt projection of 1/2", it is an excellent addition to any door hardware inventory. Upgrade your space with the quality that Corbin Russwin delivers.
Grade 2 Passage or Closet Cylindrical Lock, Newport Lever, Black Suede Powder Coat Finish, Non-Handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
Attributes
Ansi Function: F75 - Passage
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-keyed
Cylinders Present: Non-keyed
Door Thickness: 1-3/8" - 1-3/4"
Finish: BSP
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage or Closet Lock
Function Family: Passage
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F09
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
