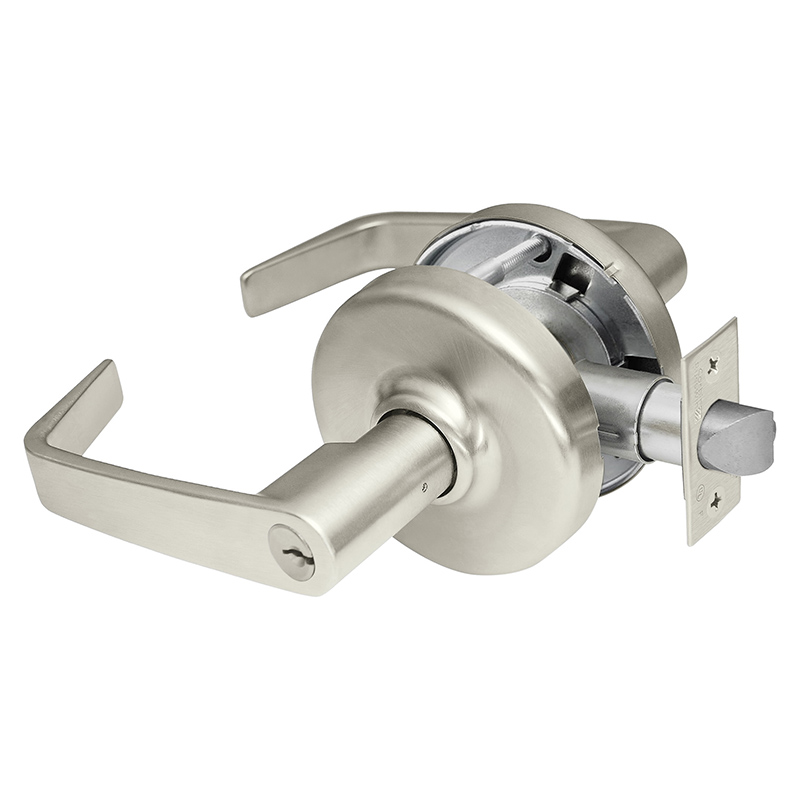

Corbin Russwin CL3851 NZD 619 Grade 2 Entrance Lock offers reliable security combined with a sleek design, making it an ideal choice for various commercial applications. This Grade 2 cylindrical lock features a Newport Lever and a conventional cylinder, finished in a stylish satin nickel that complements any décor. Designed to withstand the rigors of daily use, it is perfect for interior offices, closets, multifamily housing, restaurants, and retail spaces. Built with vandal resistance in mind, the Lever Release™ system enhances durability, while solid cast levers ensure long-lasting performance. The CL3800 Series is ANSI Grade 2 certified and boasts a 3-hour UL fire rating, providing peace of mind in high-traffic areas. With independent lever return springs and through-bolts for solid attachment, installation is straightforward and secure. The lock accommodates doors with a thickness of 1-3/8" to 1-3/4" and includes a 1/2" latch bolt projection. This entrance lock is keyed differently and comes with two cut keys. The Corbin Russwin CL3851 NZD is a dependable solution that balances functionality with aesthetic appeal, making it a smart addition to any commercial setting.
Grade 2 Entrance or Office Cylindrical Lock, Newport Lever, Conventional Cylinder, Satin Nickel Plated Clear Coated Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
Attributes
Ansi Function: F109 - Entry/Office
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office Lock
Function Family: Entrance
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Pins: 6
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
