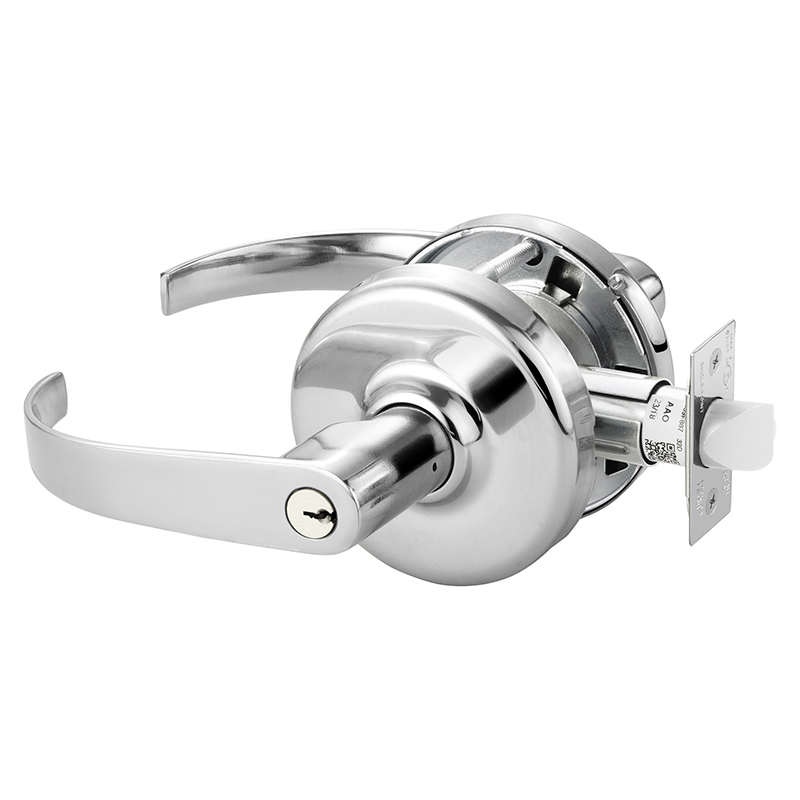

Corbin Russwin CL3851 PZD 625 Grade 2 Entrance Lock combines quality and durability in a sleek design, making it an ideal choice for various commercial applications. This Grade 2 standard-duty cylindrical lock features the elegant Princeton lever and a bright chrome finish, ensuring both aesthetic appeal and functionality. Its non-handed design simplifies installation, allowing for versatility across different door orientations. Engineered for performance, the CL3851 incorporates a Lever Release™ mechanism for enhanced vandal resistance and solid cast levers that provide a sturdy grip. With ANSI Grade 2 certification and a UL 3-hour fire rating, this lock meets essential safety standards for interior offices, closets, multifamily housing, restaurants, and retail complexes. Key specifications include a 1/2" latch bolt projection and compatibility with door thicknesses ranging from 1-3/8" to 1-3/4". The lock also features independent lever return springs and through-bolt installation for a secure fit. This model comes keyed different with two cut keys included, ensuring convenience and security for users. With a limited 7-year warranty, the Corbin Russwin CL3851 PZD 625 is a reliable choice for those seeking a robust locking solution.
Grade 2 Entrance or Office Cylindrical Lock, Princeton Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
Attributes
Ansi Function: F109 - Entry/Office
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Finish: 625/US26
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office Lock
Function Family: Entrance
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Princeton
Leverknob Design: PZ - Princeton Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Pins: 6
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
