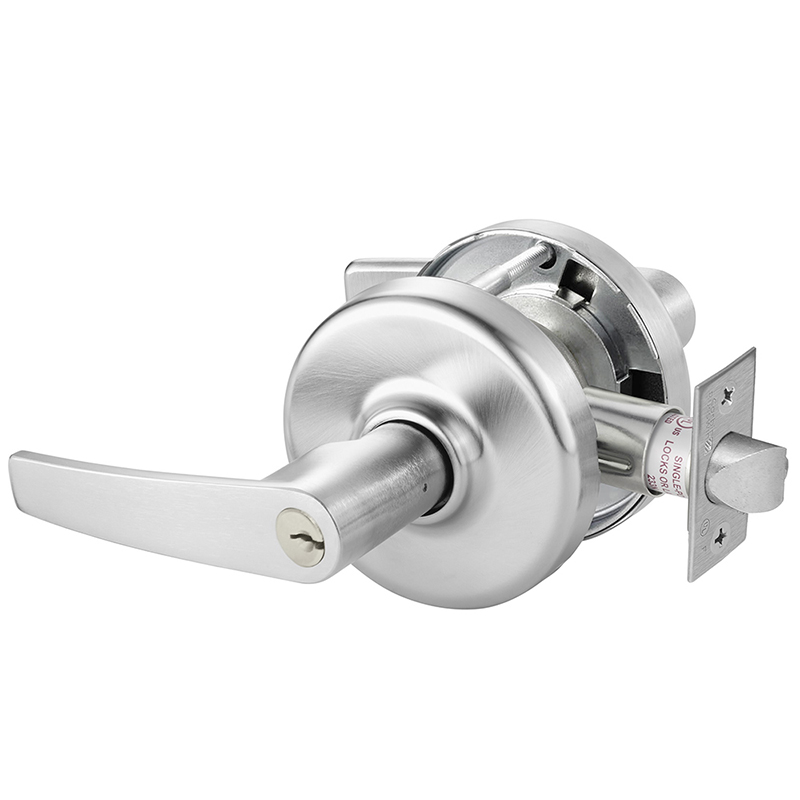

Corbin CL3855AZD626 Zinc Armstrong Lever and D Rose Single Cylinder Classroom Grade 2 Standard Duty Lever Lock L4 Keyway Satin Chrome Finish
Attributes
Ansi Function: F84 - Classroom
Backset: 2-3/4" Backset
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Design: Zinc Armstrong Lever and D Rose
Door Thickness: 1-3/8" - 1-3/4"
Finish: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 600F10
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: AZ - Armstrong
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Pins: 6
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Curved Lip Strike
Strike Height: 4-7/8"
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: 55
Structure Outside Finish: 626/US26D
Structure Outside Rose: D
Structure Outside Trim: AZ
Structure Series: CL38
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
