Corbin Russwin CL3857 NZD 606 CL6 Grade 2 Storeroom Lock offers a robust solution for securing storerooms and closets in commercial environments. This Grade 2 cylindrical lock features the elegant Newport lever design and is built from high-quality components to ensure durability and performance. Designed for standard commercial applications, the CL3800 Series is perfect for a variety of settings, including interior offices, multifamily housing, restaurants, and retail spaces. The lock is ANSI Grade 2 certified, ensuring it meets rigorous industry standards. With a UL 3-hour fire rating, it provides an added layer of safety. The non-handed design simplifies installation, and the Lever Release™ feature enhances vandal resistance, making it a smart choice for high-traffic areas. The solid cast levers and independent lever return springs contribute to its long-lasting functionality. The lock accommodates door thicknesses between 1-3/8" and 1-3/4" and includes through-bolts for secure attachment. With a satin brass finish (606/US4) that complements various architectural styles, this lock combines form and function. The Corbin Russwin CL3857 is an excellent investment for any building professional seeking reliable door hardware that balances value and performance.

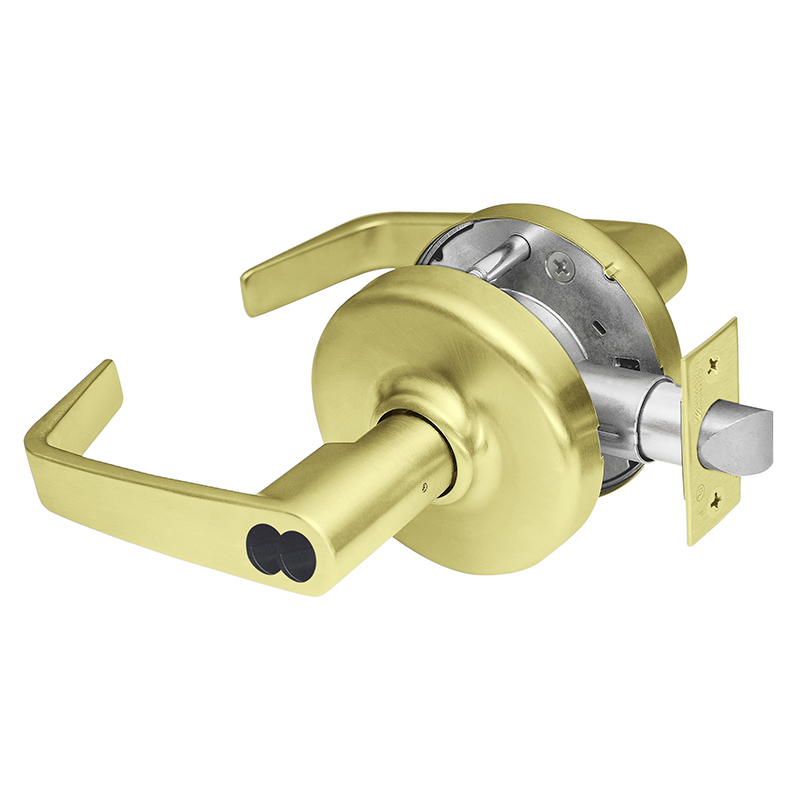

Grade 2 Storeroom or Closet Cylindrical Lock, Newport Lever, Corbin Russwin 6-Pin LFIC Less Core, Satin Brass Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
Attributes
Ansi Function: F86 - Storeroom
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Prep Less Core
Door Thickness: 1-3/8" - 1-3/4"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet Lock
Function Family: Storeroom
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
