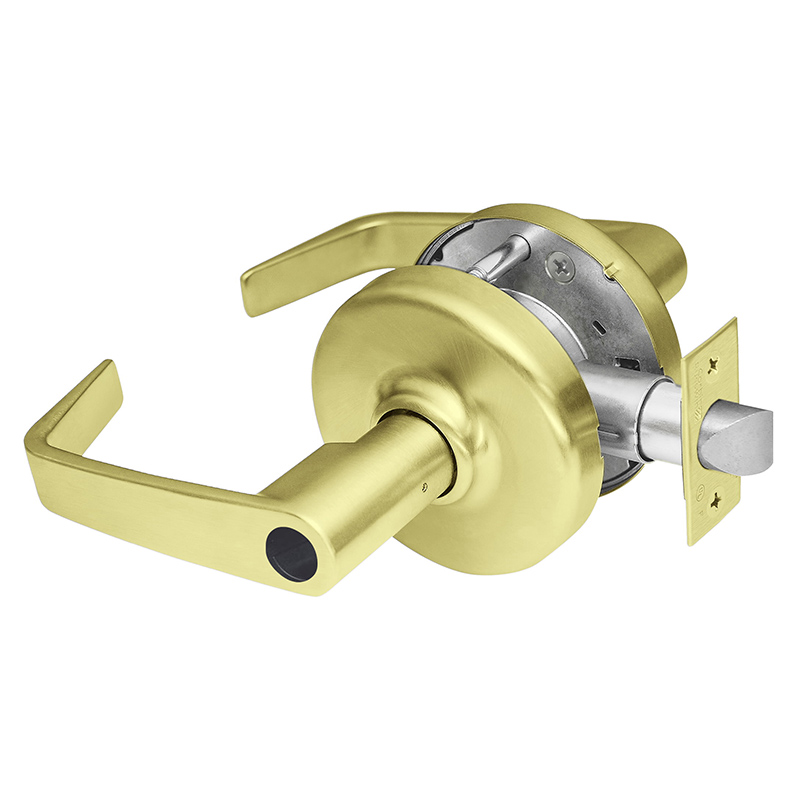

Corbin Russwin CL3857 NZD 606 LC Grade 2 Storeroom LockCorbin Russwin CL3857 NZD 606 LC Grade 2 Storeroom Lock offers an exceptional combination of value and performance, making it an ideal choice for standard commercial applications. This Grade 2 storeroom or closet cylindrical lock features a stylish Newport lever design in a satin brass finish, ensuring both aesthetic appeal and durability. Designed for versatility, the CL3857 is non-handed, accommodating a range of door configurations. It boasts a robust ANSI Grade 2 certification and a UL 3-hour fire rating, ensuring safety and security in various environments, including interior offices, closets, multifamily housing, restaurants, and retail complexes. The lever release™ mechanism provides enhanced vandal resistance, while solid cast levers and independent lever return springs contribute to long-lasting performance. Installation is straightforward, with through-bolts ensuring a solid attachment to the door. The lock covers ANSI/DHI door prep A115.18-1994 "Spider Cut Out," making it an easy fit for existing door preparations. With a latch projection of 1/2" and compatibility for door thicknesses ranging from 1-3/8" to 1-3/4", the Corbin Russwin CL3857 is engineered for reliability in demanding environments. Backed by a 7-year limited warranty, this storeroom lock is a smart investment for any commercial setting.
Grade 2 Storeroom Lock
Grade 2 Storeroom or Closet Cylindrical Lock, Newport Lever, Less Conventional Cylinder, Satin Brass Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI Grade 2 certification
- UL 3-hour fire rating
- Independent lever return springs
- Through-bolts on door for solid attachment
- Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”
Attributes
Ansi Function: F86 - Storeroom
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Thickness: 1-3/8" - 1-3/4"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet Lock
Function Family: Storeroom
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
