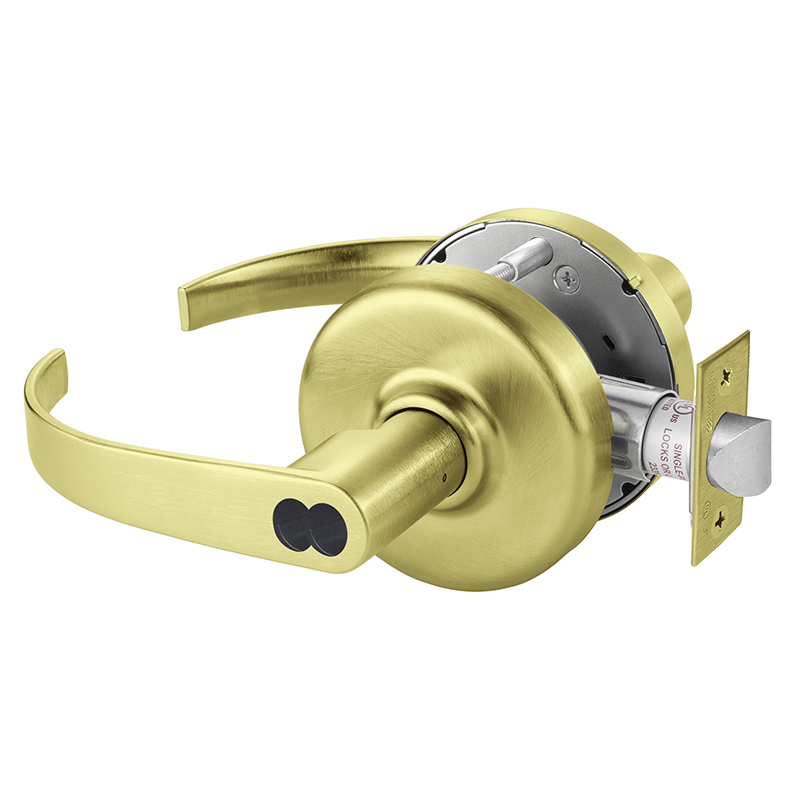

Corbin Russwin CL3857 PZD 606 CL6 Grade 2 Storeroom Lock offers a reliable solution for securing storerooms or closets in commercial environments. This Grade 2 cylindrical lock features the elegant Princeton lever design, providing both aesthetic appeal and functional durability. Constructed with solid cast levers, it ensures longevity and resistance to vandalism, thanks to its Lever Release™ mechanism. Designed for standard commercial applications, the CL3800 Series is ideal for interior offices, multifamily housing, restaurants, and retail complexes. The lock is ANSI Grade 2 certified and comes with a UL 3-hour fire rating, ensuring safety and compliance with industry standards. It is non-handed, allowing for easy installation on doors between 1-3/8" and 1-3/4" thick. Additional features include independent lever return springs for reliable operation, through-bolts for solid door attachment, and coverage of ANSI/DHI door prep A115.18. The lock fits a 2-1/8" bore hole and has a bolt projection of 1/2", making it a versatile choice for various door types. Backed by a 7-year limited warranty, the Corbin Russwin CL3857 lock is a smart investment for any commercial setting, providing both security and peace of mind.
Grade 2 Storeroom or Closet Cylindrical Lock, Princeton Lever, Corbin Russwin 6-Pin LFIC Less Core, Satin Brass Finish, Non-handed
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
Attributes
Ansi Function: F86 - Storeroom
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: LFIC Prep Less Core
Door Thickness: 1-3/8" - 1-3/4"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet Lock
Function Family: Storeroom
Grade: Grade 2
Handing: Not Handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Princeton
Leverknob Design: PZ - Princeton Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Rose Escutcheon: Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
