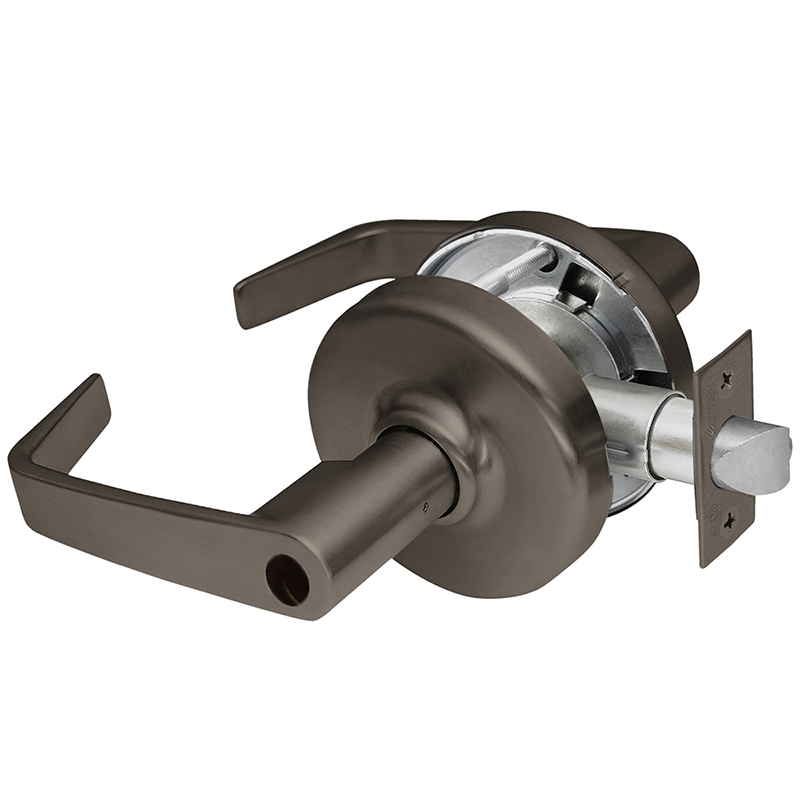

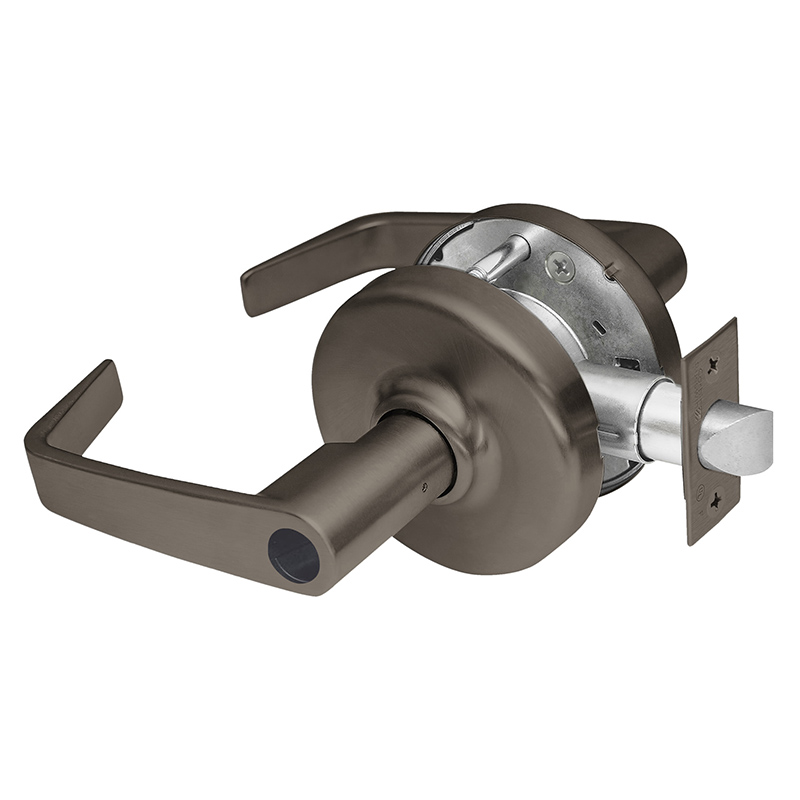

Corbin Russwin CL3857NZD613LC Zinc Newport Lever and D Rose Single Cylinder Storeroom is engineered for reliability and security in commercial settings. Meeting ANSI/BHMA Grade 2 requirements, this lockset ensures durability and performance that stand the test of time. The unit features a UL 3-hour fire rating, providing an additional layer of safety for storeroom applications. Crafted from die-cast zinc with an elegant oil rubbed bronze finish, the lockset combines aesthetic appeal with robust functionality. Its solid-cast levers and independent lever-return springs effectively prevent lever sag, ensuring smooth operation. Designed for easy installation, the lockset is non-handed and mounts through-bolt onto the door, preventing chassis rotation and maintaining alignment. The Corbin Russwin CL3857 is suitable for doors with a thickness range of 1-3/4" to 2" and includes a 2-3/4" backset. With a 4-1/2" lever and 3-1/2" rose dimension, it fits seamlessly into various architectural designs. The ANSI curved lip strike and 1-1/8" x 2-1/4" latch faceplate further enhance its usability. Backed by a limited 7-year warranty, this lockset is a smart choice for those seeking quality and reliability in door hardware.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Ansi Function: F86 - Storeroom
Backset: 2-3/4" Backset
Base Series: CL3800
Bolt Projection: 1/2" Latch
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Crossbore Size: 2-1/8" Bore with 5/16" Thru Bolt Holes
Cylinder Type: Less Cylinder
Design: Zinc Newport Lever and D Rose
Dimension: 4-1/2" Lever with 2-13/16" Projection and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/8" - 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 2
Hand: Not Handed
Handing: Not Handed
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 600F10
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Return Lever
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Warranty: Limited 7 Year Warranty
Material: Die Cast Zinc
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 337.5 in³
Pack Volume 2: 2359.88 in³
Pack Width: 7.5"
Pack Width 2: 14.5"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Number: D
Roseescutcheon Design: D Rose
Screws: Combination
Series: CL3800 Series
Ship Weight: 4.1 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 600F10
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 217L13
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Curved Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: 57
Structure Outside Finish: 613/US10B
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL38
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL 3 Hour Rated
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
