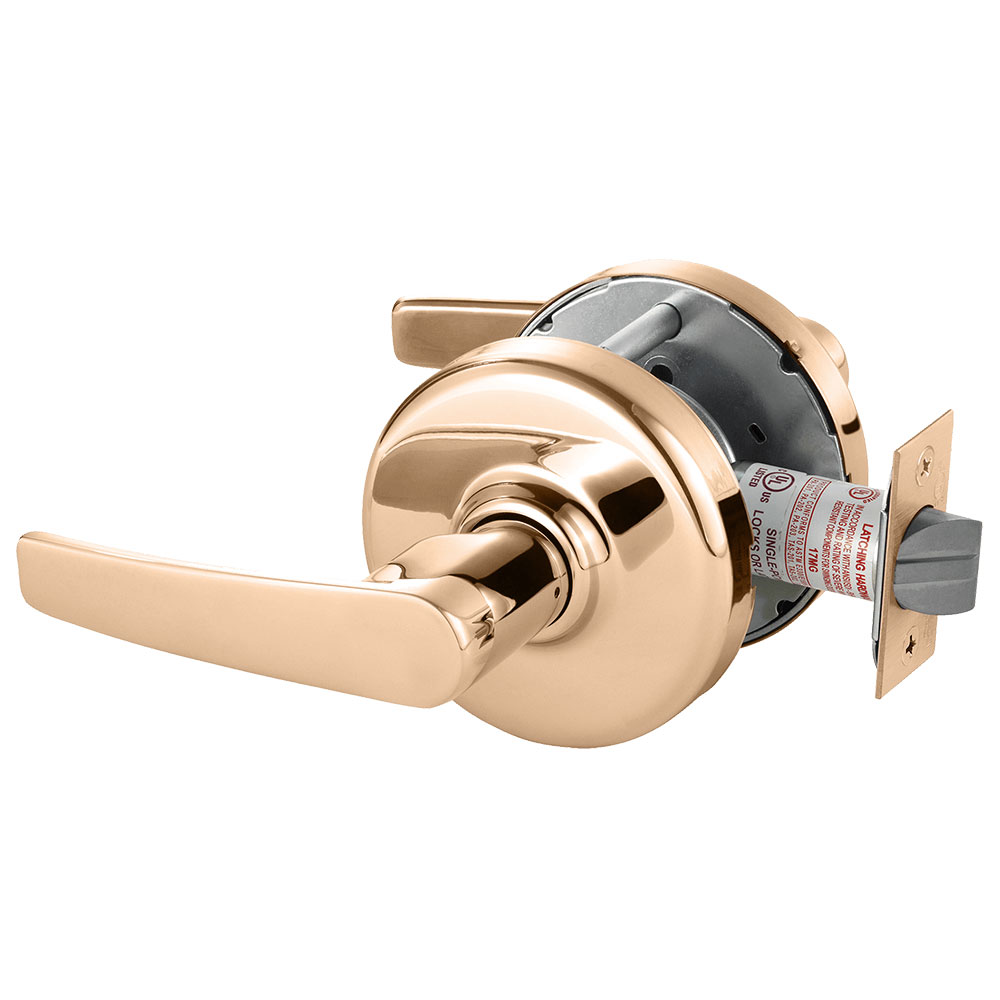

Corbin Russwin CLX3310 AZD 611 Grade 1 Passage Latch offers unmatched durability and style for high-traffic areas. Designed for versatility, this Grade 1 cylindrical lock features the elegant Armstrong Lever and a non-keyed functionality, making it ideal for passage or closet doors. Its bright bronze finish not only enhances aesthetic appeal but also provides a robust layer of protection against wear and tear. Manufactured from high-quality brass, the CLX3300 Series meets ANSI/BHMA Grade 1 standards, ensuring reliable performance and security. The non-handed design allows for easy installation on doors ranging from 1-3/4" to 2" in thickness. With a bolt projection of 1/2" and a standard latch backset of 2-3/4", this lock is compatible with various door configurations. Fire-rated for up to 3 hours, the Corbin Russwin CLX3310 is suitable for commercial applications, ensuring safety in case of emergencies. The large D Rose escutcheon adds a sophisticated touch, while the 10-year limited warranty gives added peace of mind. Whether you’re working on new construction or a retrofit project, this passage latch combines strength and style, making it a reliable choice for any environment.
Grade 1 Passage/Closet Cylindrical Lock, Armstrong Lever, D Rose, Non-Keyed, Bright Bronze Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 611/US9
Finish Family: Polished Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage or Closet
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Passage/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F20
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
