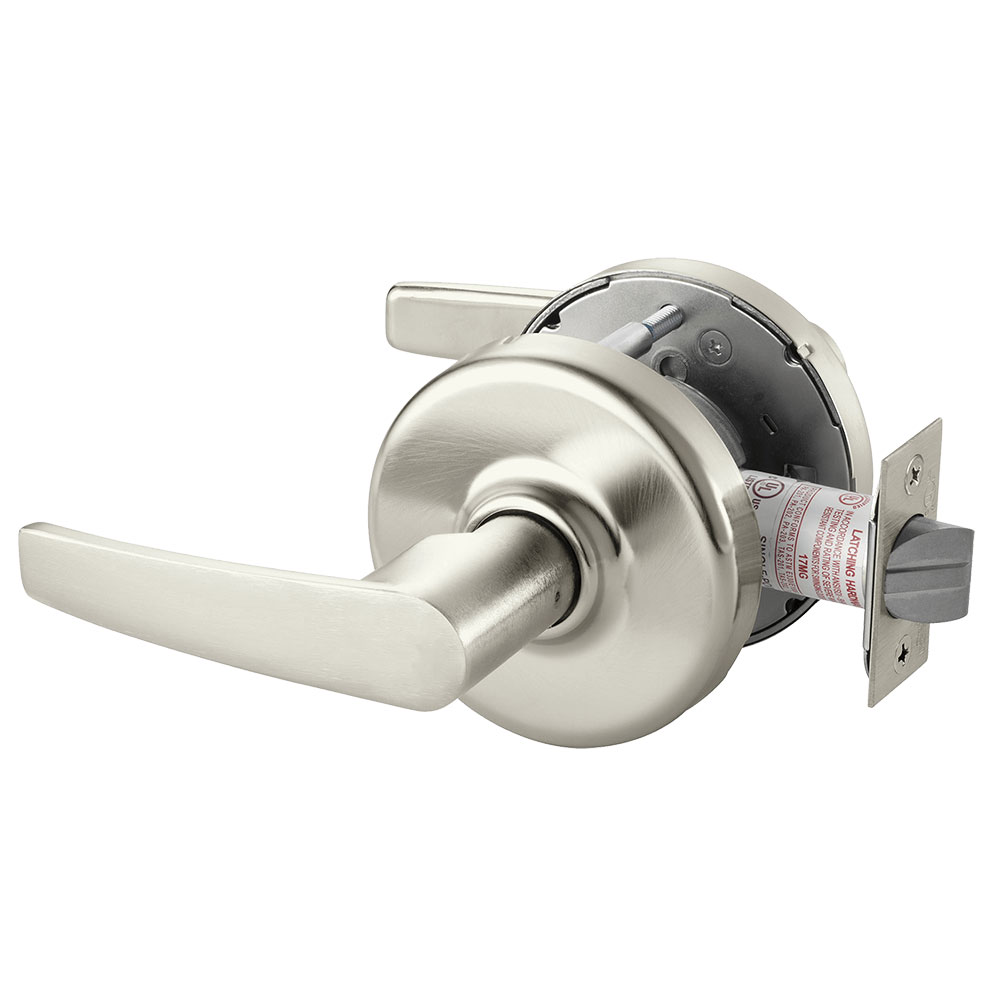

Corbin Russwin CLX3310 AZD 619 Grade 1 Passage Latch is a robust solution tailored for high-traffic environments where style and security are paramount. This Grade 1 cylindrical lock features the elegant Armstrong lever design and comes with a D Rose rose escutcheon, both finished in a sleek satin nickel that enhances any decor. Non-handed and non-keyed, this lock is ideal for passage or closet applications, providing seamless access without sacrificing security. Constructed from premium brass and bronze materials, the CLX3310 ensures durability and reliability, meeting the highest standards of performance. With a bolt projection of ½ inch and compatibility with standard door thicknesses ranging from 1-3/4 inches to 2 inches, it is perfectly suited for both new constructions and retrofits. The lock also supports all cylinder formats, including fixed and interchangeable cores. Certified to ANSI/BHMA Grade 1 standards, this lock offers exceptional strength and a fire rating of up to three hours, making it a dependable choice for commercial settings. Backed by a 10-year limited warranty, the Corbin Russwin CLX3310 is a stylish and trustworthy addition to your door hardware arsenal, ensuring lasting security and elegance.
Grade 1 Passage/Closet Cylindrical Lock, Armstrong Lever, D Rose, Non-Keyed, Satin Nickel Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 10-Passage or Closet
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Passage/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F20
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
