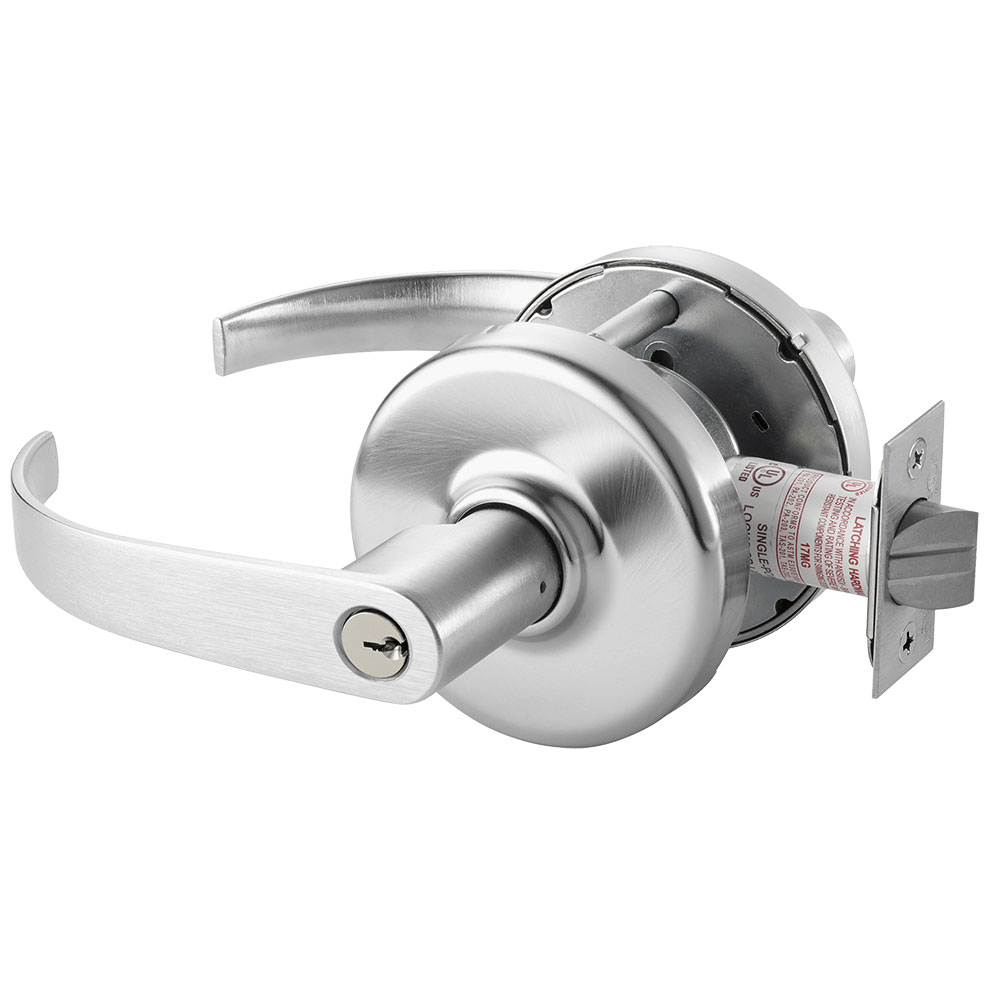

Corbin Russwin CLX3329 PZD 626 Grade 1 Hotel Lock is engineered for high-traffic environments, ensuring security without compromising on style. This Grade 1 cylindrical lock features the elegant Princeton lever design and a durable satin chrome finish that complements various architectural aesthetics. Designed for hotel and motel applications, the CLX3300 series is ANSI/BHMA certified and built from premium brass and bronze materials, offering unmatched strength and reliability. The lock is non-handed, accommodating door thicknesses from 1-3/4" to 2", making it versatile for both new constructions and retrofits. With a conventional cylinder and compatibility with all cylinder formats, it provides flexibility in keying options. The lock face size measures 1-1/8" x 2-1/4", and the latch bore diameter is 1", optimized for secure installation. Additional features include a 3-hour fire rating and a 10-year limited warranty, ensuring peace of mind in performance and durability. The Corbin Russwin CLX3329 PZD lock is not just a functional element; it’s a stylish addition to any commercial space, showcasing both quality craftsmanship and cutting-edge design. Secure your property with a lock that embodies strength, aesthetics, and reliability.
Grade 1 Hotel/Motel Cylindrical Lock, Princeton Lever, D Rose, Conventional Cylinder, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F93
Ansi Function: F93 - Hotel/Motel
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 29-Hotel or Motel
Function Family: Hotel/Motel
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Princeton
Leverknob Design: PZ - Princeton Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Hotel/Motel
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
