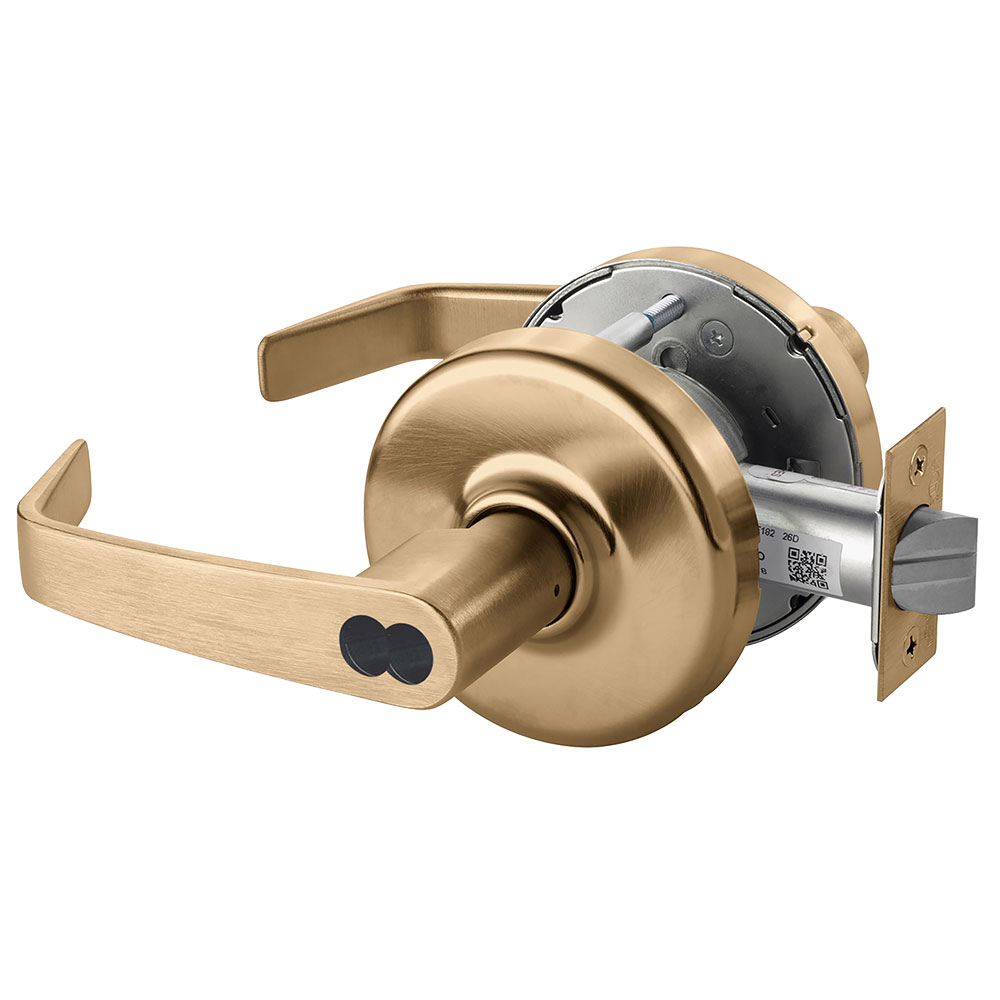

Corbin Russwin CLX3332 NZD 612 CL6 Grade 1 Institution Lock offers a robust solution for securing high-traffic areas without compromising on aesthetics. This Grade 1 Institutional/Utility cylindrical lock features the stylish Newport lever design and is finished in a sleek satin bronze, ensuring it complements a variety of decors. Designed for durability and reliability, the lock is constructed from high-quality bronze materials and is non-handed, making it versatile for various installations. The CLX3300 series is ANSI/BHMA Grade 1 rated, providing the strength needed for heavy use in commercial settings. With a 6-pin LFIC less core cylinder type, it supports multiple cylinder formats, allowing for easy adaptability in both new construction and retrofit projects. The lock's bolt projection measures ½ inch, and it fits doors with thicknesses ranging from 1-3/4 inches to 2 inches, making it suitable for a wide range of door types. Fire rated for up to 3 hours, this lock ensures safety alongside security. Each unit is backed by a 10-year limited warranty, affirming its quality and reliability. For professionals seeking a dependable locking solution with a touch of elegance, the Corbin Russwin CLX3332 is an outstanding choice.
Grade 1 Institutional/Utility Cylindrical Lock, Newport Lever, D Rose, LFIC 6-Pin Less Core, Satin Bronze Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F87
Ansi Function: F87 - Asylum
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 32-Institutional or Utility
Function Family: Institutional
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Institutional/Utility
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
