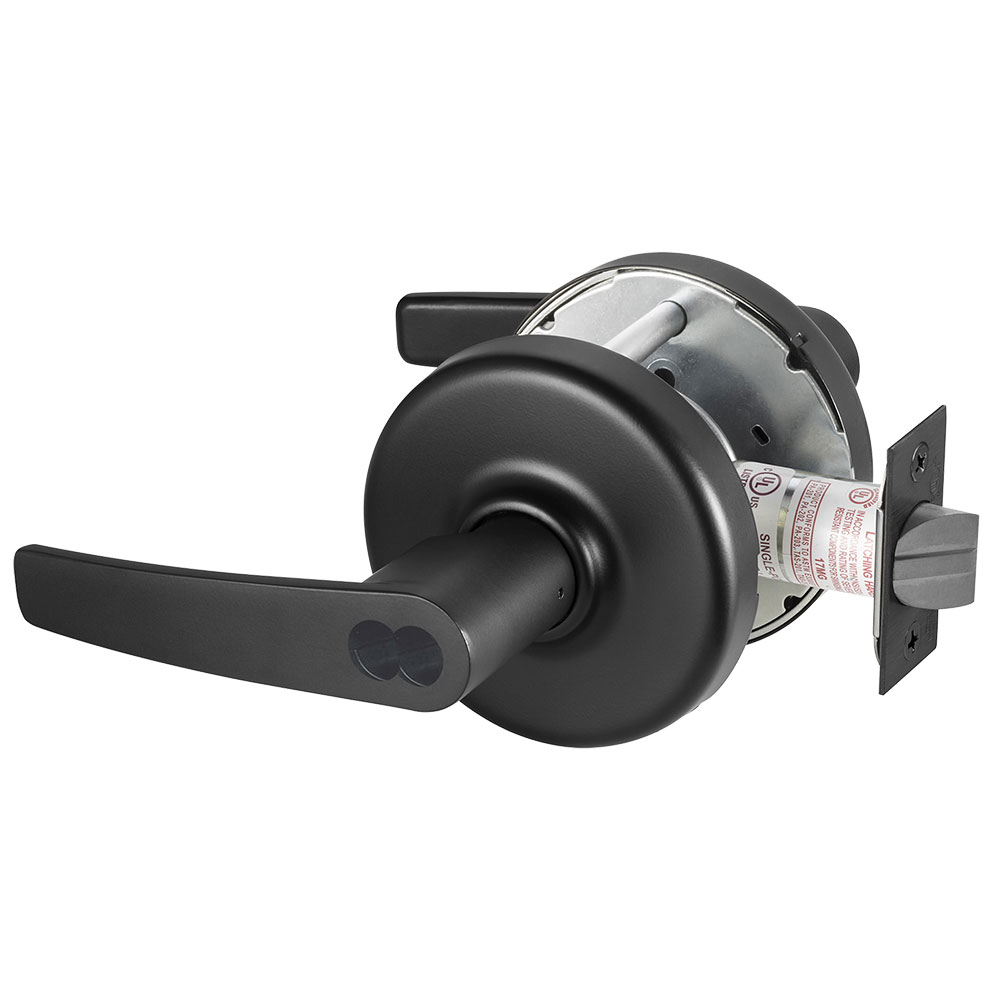

Corbin Russwin CLX3351 AZD BSP CL6 Grade 1 Entrance Lock is a robust solution for securing high-traffic areas, perfectly marrying strength with aesthetic appeal. This Grade 1 cylindrical lock is engineered to withstand daily wear while enhancing the decor of any entrance. Featuring the elegant Armstrong lever and a sleek D Rose design, this lock is not just functional but also visually pleasing. Constructed with high-quality steel, the CLX3351 boasts a non-handed configuration, making it versatile for various installation needs. It supports a Corbin Russwin 6-Pin LFIC less core cylinder type, accommodating both fixed and interchangeable cores. With a bolt projection of 1/2" and a bore hole diameter of 2-1/8", it is designed for doors with a thickness ranging from 1-3/4" to 2". The lock is fire-rated for 3 hours, ensuring safety without compromising on style. Additionally, it is UL listed, meeting ANSI A156.2 (2017) standards, and comes with a 10-year limited warranty, providing peace of mind. Available in a sophisticated black suede finish, the CLX3351 is an ideal choice for both commercial and retrofit projects that demand both security and style.
Grade 1 Entrance/Office Cylindrical Lock, Armstrong Lever, D Rose, LFIC 6-Pin Less Core, Black Suede Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Base Material: Steel
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: BSP
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
