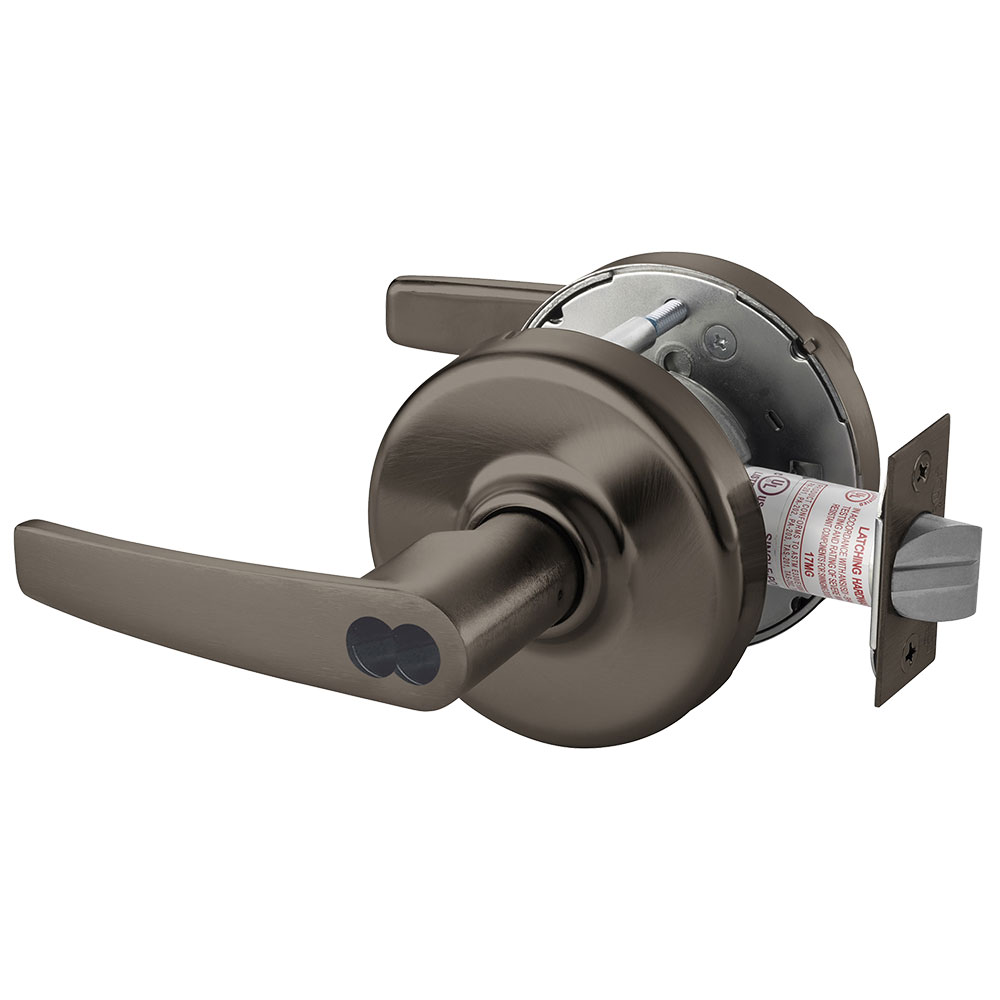

Corbin Russwin CLX3357 AZD 613 CL6 Grade 1 Storeroom Lock is engineered for high-traffic environments, combining reliability with aesthetic appeal. This Grade 1 cylindrical lock features the Armstrong lever design and is finished in a sophisticated oil-rubbed bronze, making it a stylish choice for storerooms or closets. Designed to meet ANSI/BHMA F86 standards, this lock is non-handed, accommodating a range of door thicknesses from 1-3/4" to 2". Its robust construction ensures durability, while the 6-pin less core cylinder offers flexibility in keying options, including fixed and interchangeable cores. The lock's 1/2" bolt projection and deadlatch mechanism provide enhanced security, ensuring peace of mind in commercial settings. Installation is straightforward thanks to the standard 2-3/4" backset and compatibility with wood and machine screws. The CLX3357 is UL listed and fire-rated for up to 3 hours, making it a safe choice for various applications. With a 10-year limited warranty, this lock promises long-lasting performance, making it the ideal solution for both new construction and retrofit projects. Choose the Corbin Russwin CLX3357 for a perfect blend of function, security, and style.
Grade 1 Storeroom/Closet Cylindrical Lock, Armstrong Lever, D Rose, LFIC 6-Pin Less Core, Oil-Rubbed Bronze Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
