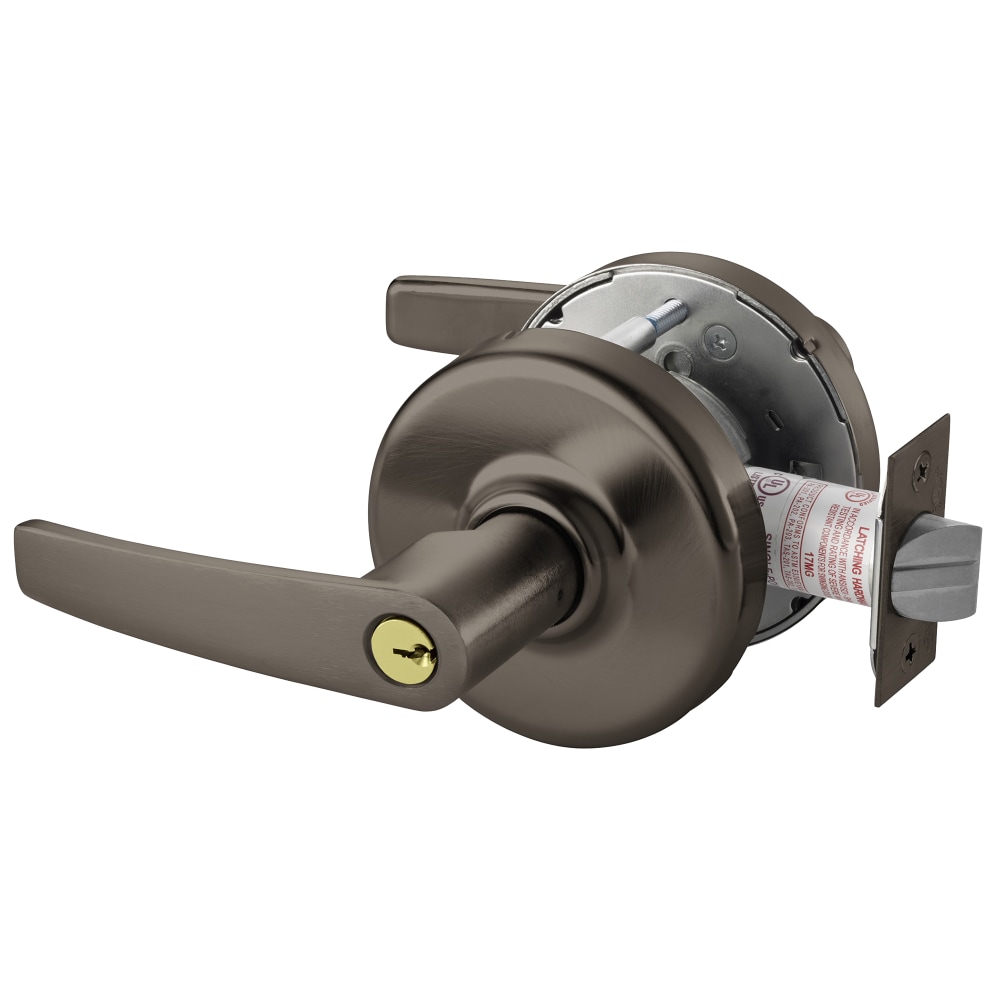

Corbin Russwin CLX3357 AZD 613 Grade 1 Storeroom Lock is engineered to provide robust security for high-traffic environments while ensuring a polished aesthetic. This Grade 1 cylindrical lock features the elegant Armstrong lever and is finished in a rich Oil-Rubbed Bronze, making it a stylish choice for storerooms or closets. Its non-handed design allows for flexible installation on doors ranging from 1-3/4" to 2" thick, accommodating various applications with ease. Constructed from high-quality bronze, the CLX3357 delivers exceptional durability and reliability. It supports conventional cylinder types and is compatible with fixed and interchangeable cores, making it an ideal solution for both new constructions and retrofit projects. The lock's ANSI/BHMA Grade 1 rating promises strength and resilience, designed to withstand daily use. With a bolt projection of 1/2" and a latch bore diameter of 1", this lock features a standard latch type of deadlatch and includes two cut keys. Additionally, it is UL Listed, meeting rigorous safety standards for fire resistance of up to 3 hours. The CLX3357 combines functionality with sophisticated design, ensuring security without compromising style in any setting.
Grade 1 Storeroom/Closet Cylindrical Lock, Armstrong Lever, D Rose, Conventional Cylinder, Oil-Rubbed Bronze Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ship via: Can Ship UPS
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
