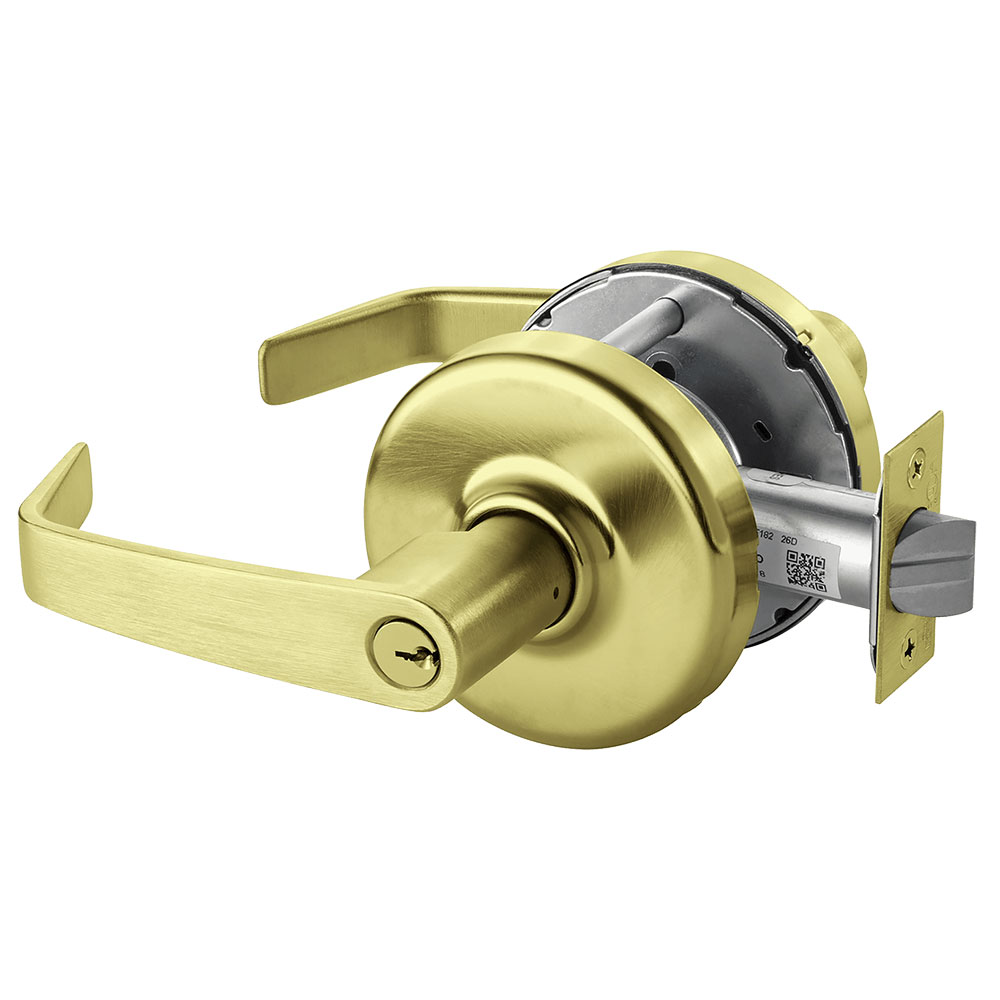

Corbin Russwin CLX3357 NZD 606 Grade 1 Storeroom Lock offers a robust and elegant solution for securing high-traffic areas. Designed with the Newport lever and finished in satin brass, this Grade 1 cylindrical lock combines durability and style, ensuring it complements various decor while providing exceptional security. Manufactured to meet ANSI/BHMA standards, this lock is ideal for storerooms and closets, featuring a non-handed design that simplifies installation. The conventional cylinder accommodates various formats, including fixed and interchangeable cores, making it versatile for both new constructions and retrofit projects. With a bolt projection of ½ inch and a latch bore diameter of 1 inch, it guarantees reliability and ease of use. The CLX3300 Series also boasts a fire rating of 3 hours, providing peace of mind in emergencies. Measuring for doors with a thickness of 1-3/4 inches to 2 inches, it includes a standard latch backset of 2-3/4 inches and comes with two cut keys. Backed by a 10-year limited warranty, the Corbin Russwin CLX3357 NZD is a trusted choice for building professionals and homeowners alike, ensuring safety without compromising on aesthetics.
Grade 1 Storeroom/Closet Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Satin Brass Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
