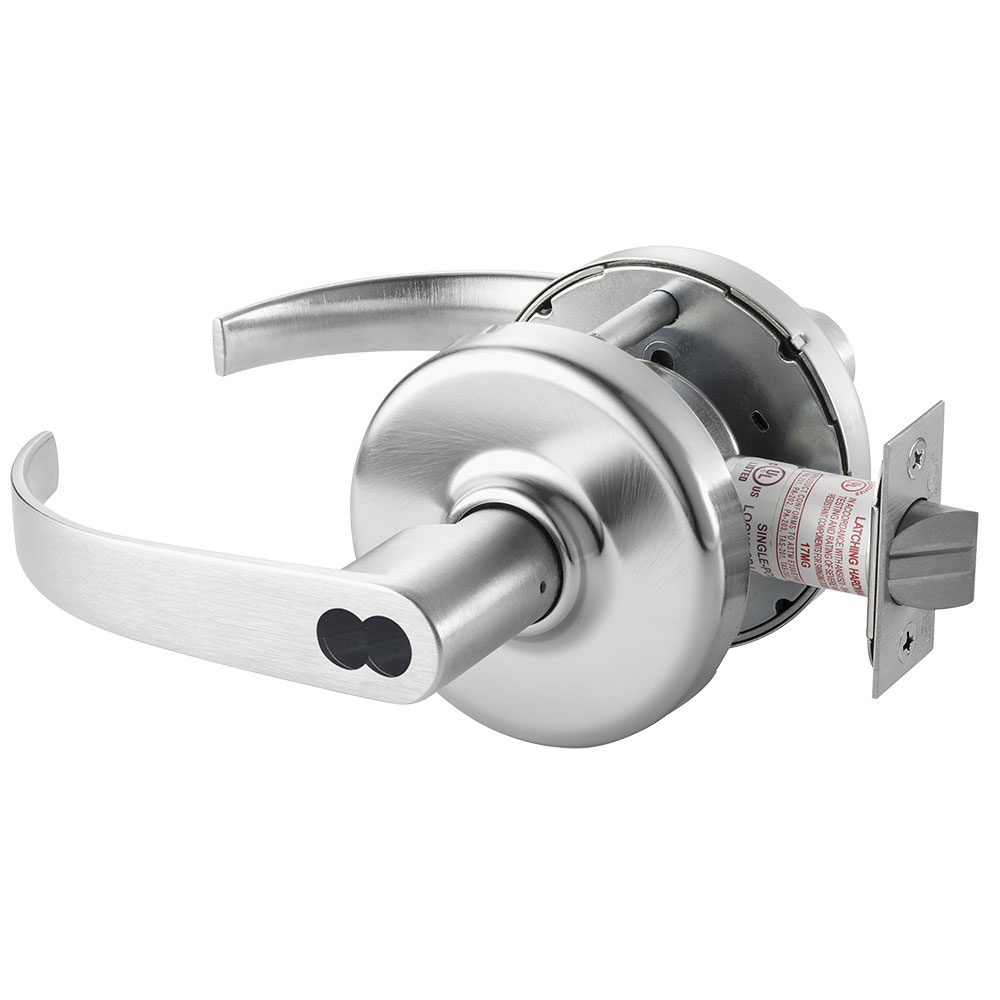

Corbin Russwin CLX3361 PZD 626 CL6 Grade 1 Entry/Office Lock is crafted to meet the demands of high-traffic environments while offering a sleek design. This Grade 1 cylindrical lock features the elegant Princeton lever and is finished in a sophisticated satin chrome, ensuring it complements a variety of décor styles without sacrificing durability or security. Designed for commercial settings, the CLX3300 Series lock boasts a robust 6-Pin LFIC less core cylinder, accommodating a broad range of cylinder formats, from fixed to interchangeable cores. Its non-handed configuration allows for versatile installation on doors with a thickness of 1-3/4" to 2". The lock’s bolt projection of 1/2" and deadlatch mechanism enhance security, making it ideal for entry and office applications. With an ANSI/BHMA rating of F82A, this lock guarantees reliability and peace of mind. It is fire-rated for up to 3 hours, adding an extra layer of safety. The lock is easy to install with wood or machine screws and comes with a 10-year limited warranty, underscoring its quality. Choose the Corbin Russwin CLX3361 for a blend of style, strength, and exceptional performance in any commercial space.
Grade 1 Entry/Office Cylindrical Lock, Princeton Lever, D Rose, LFIC 6-Pin Less Core, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F82A
Ansi Function: F82A - Entry
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 61-Entry of Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Princeton
Leverknob Design: PZ - Princeton Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entry/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
