Corbin Russwin CLX3362 NZD 626 Grade 1 Communicating Lock offers a perfect blend of durability and style, making it ideal for high-traffic areas where aesthetics matter. This Grade 1 cylindrical lock features a Newport lever and a D Rose escutcheon, ensuring a sophisticated appearance that complements any decor. Constructed from high-quality brass and bronze, the lock provides exceptional strength and reliability. Designed for commercial applications, the CLX3362 is non-handed and supports all cylinder formats, including conventional cylinders. Its convenient installation accommodates doors with a thickness ranging from 1-3/4" to 2", making it suitable for both new constructions and retrofit projects. The lock also boasts a fire rating of 3 hours, offering added safety in critical environments. With a robust bolt projection of 1/2", this lock meets ANSI/BHMA standards (F80) for communicating functions, ensuring secure access and privacy. The satin chrome finish not only enhances its visual appeal but also ensures resistance to wear and tear. Each unit comes with two cut keys and is backed by a 10-year limited warranty, underscoring its quality and performance. Choose the Corbin Russwin CLX3362 for reliable security solutions without compromising on style.

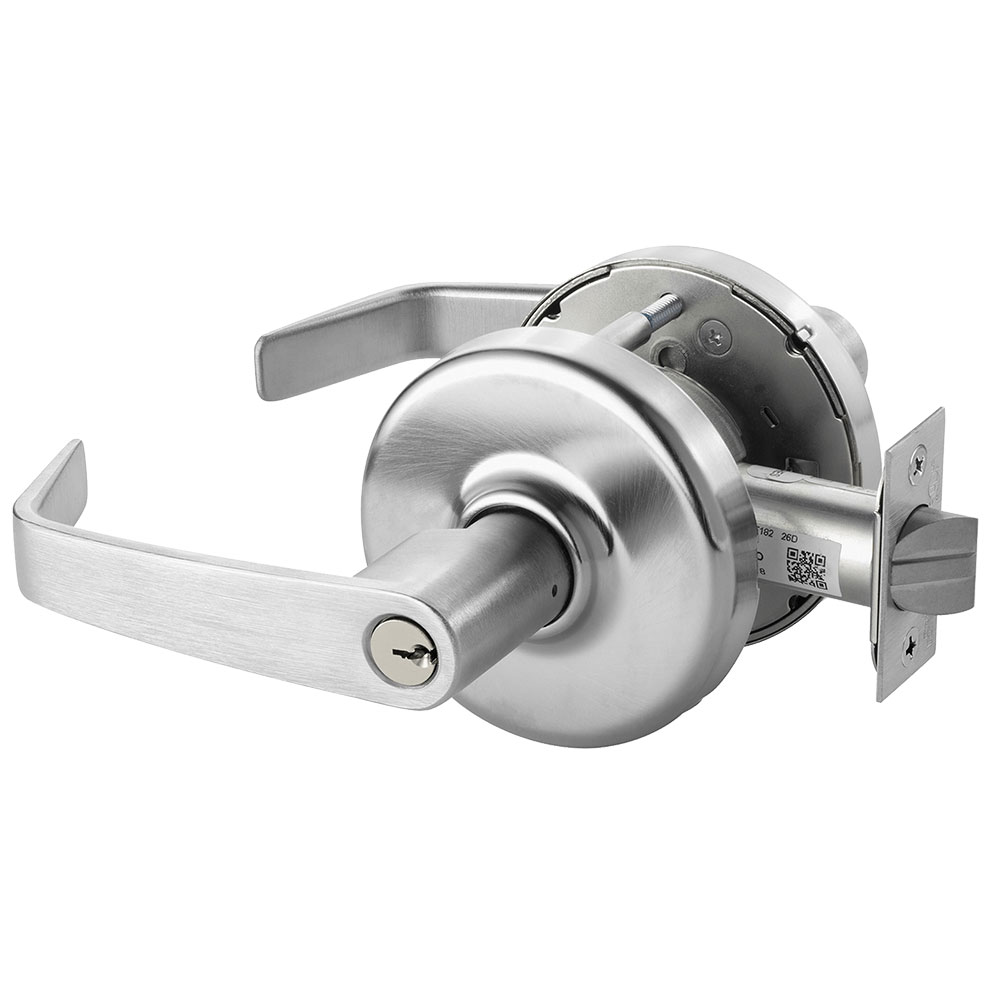

Grade 1 Communicating Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Manufacturer surcharge: $ 0.0
Ansi: F80
Ansi Function: F80 - Communicating
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 62-Communicating
Function Family: Communicating
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Communicating
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
