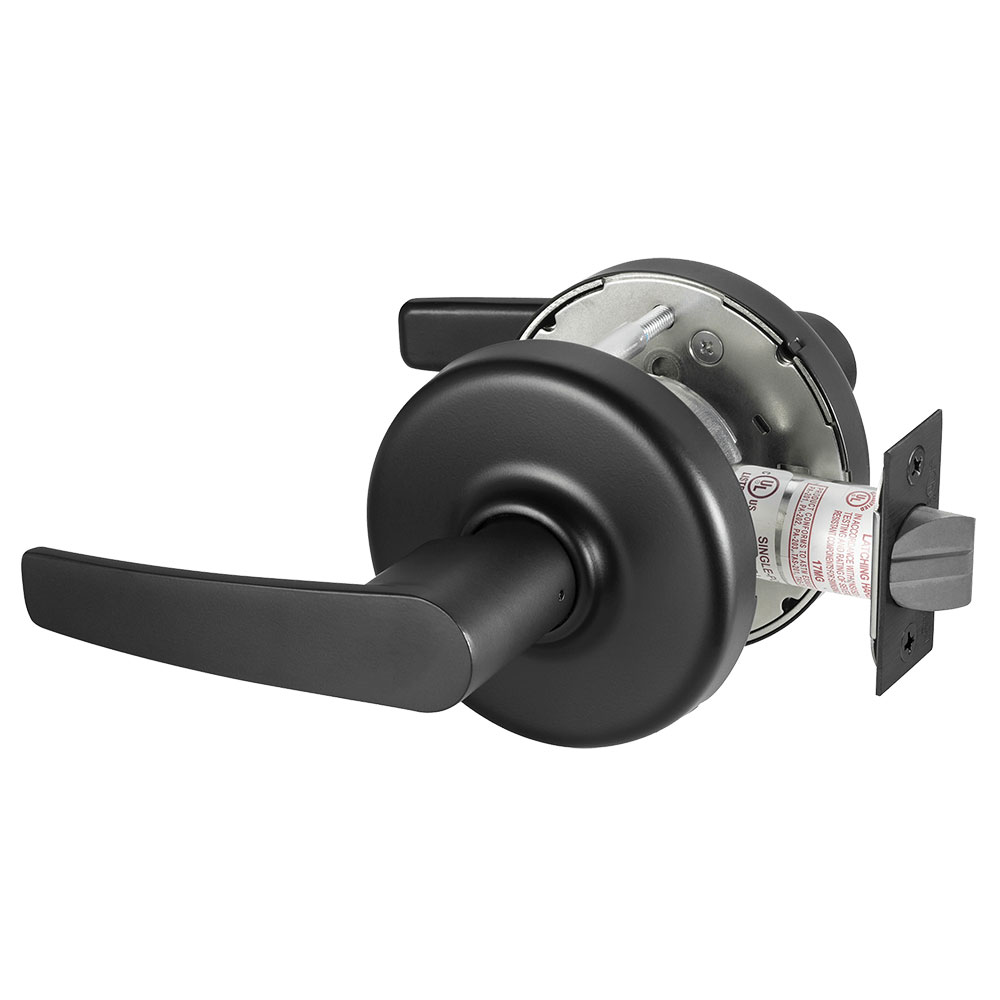

Corbin Russwin CLX3370 AZD BSP Grade 1 Full Dummy Trim HardwareCorbin Russwin CLX3370 AZD BSP Grade 1 Full Dummy Trim is a robust and stylish option for securing high-traffic areas that also emphasizes aesthetic appeal. This Grade 1 full dummy trim cylindrical lock features the Armstrong Lever design and a non-keyed, black suede finish, making it an elegant choice for commercial settings. Crafted from high-quality steel, it ensures durability and reliability, while its non-handed configuration allows for flexible installation on any door. The CLX3300 Series meets ANSI/BHMA Grade 1 standards, demonstrating its strength and suitability for demanding environments. This trim is designed to accommodate door thicknesses ranging from 1-3/4" to 2", making it versatile for various applications. Additionally, the unit is fire-rated for up to three hours, providing an extra layer of safety. With dimensions of 10" in length, 8" in width, and 4.5" in height, the lock is easy to handle and install. Ideal for both new constructions and retrofit projects, the Corbin Russwin CLX3370 ensures you don’t have to compromise on style for functionality. Backed by a 10-year limited warranty, it is a reliable choice for those seeking quality in door hardware solutions.
Grade 1 Full Dummy Trim
Grade 1 Full Dummy Trim Cylindrical Lock, Armstrong Lever, D Rose, Non-Keyed, Black Suede Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Base Material: Steel
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: BSP
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 70-Full Dummy Trim
Function Family: Dummy
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: Armstrong
Leverknob Design: AZ - Armstrong Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Function: Full Dummy Trim
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
