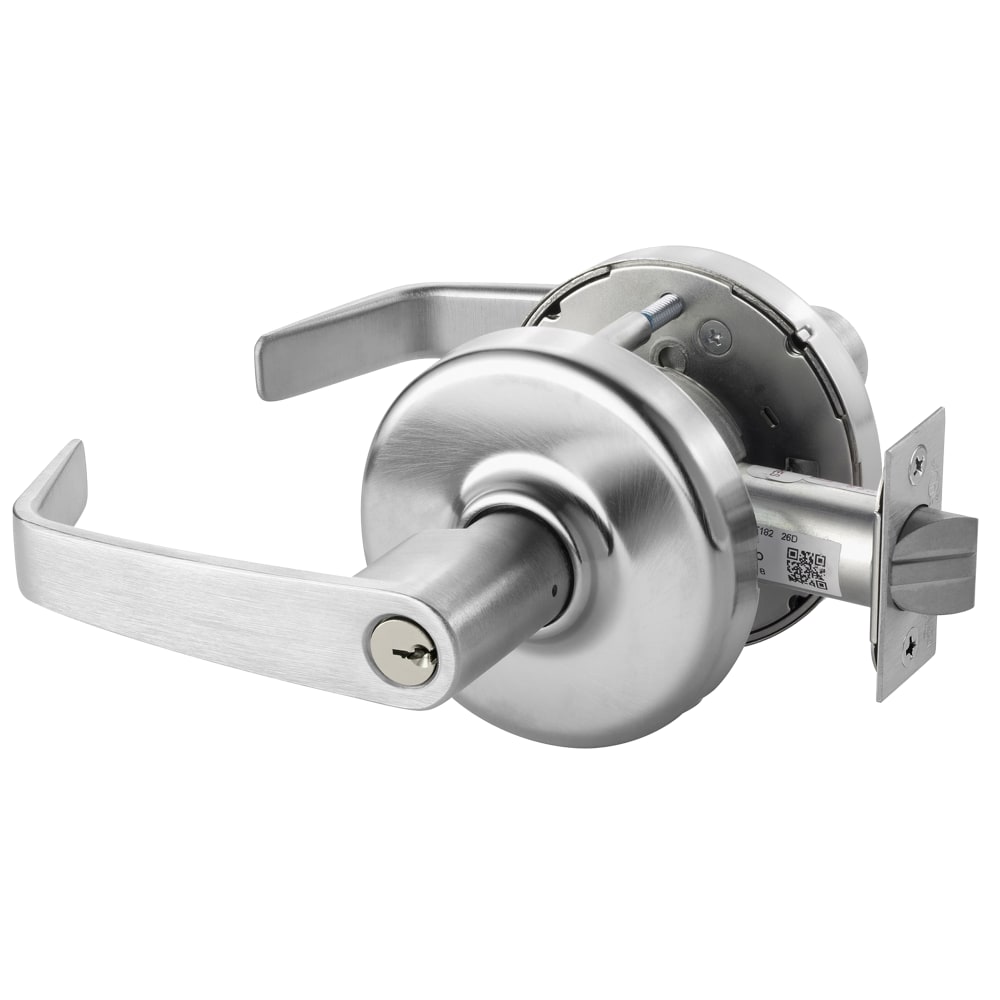

Corbin Russwin CLX3372 NZD 626 Grade 1 Public Toilet Lock is a robust solution designed for high-traffic environments where both security and aesthetics are paramount. This Grade 1 cylindrical lock features the elegant Newport lever and is finished in a sleek satin chrome, making it an excellent choice for commercial spaces that demand style without compromising on strength. Designed for versatility, the CLX3372 is non-handed and supports all cylinder formats, including conventional and interchangeable cores. The lock accommodates doors with a thickness ranging from 1-3/4" to 2", making it suitable for new constructions and retrofit projects alike. Its 1/2" bolt projection ensures reliable security, while the ANSI/BHMA F88 entry/restroom function provides ease of use. With a fire rating of 3 hours and a 10-year limited warranty, this lock not only meets but exceeds industry standards. The package includes wood and machine screws for straightforward installation. Weighing just 7 lbs., the Corbin Russwin CLX3372 NZD 626 is a durable, high-quality choice for any commercial restroom or apartment exit, ensuring peace of mind and style in every application.
Grade 1 Apartment/Exit Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F88
Ansi Function: F88 - Entry/Restroom
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 72-Apartment Exit or Public Toilet
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Apartment/Exit
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
