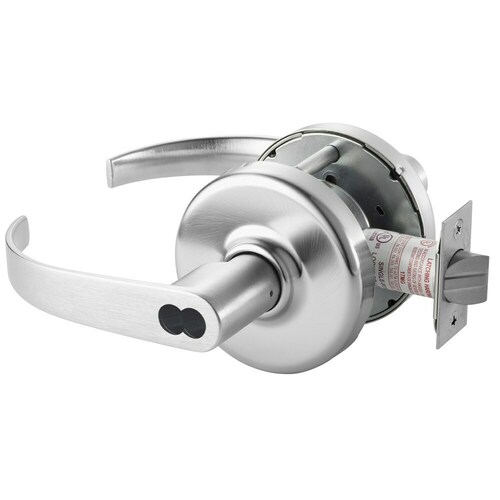

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Attributes
Ship via: Can Ship UPS
Alternate Codes: CLX3382-NZD-626-LC, CLX3382NZD626LC
Ansi: F91
Ansi Function: F91 - Store Door
Backset: 2-3/4"
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Double Cylinder
Door Application: Commercial Locks
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Store Lock
Function Family: Store Lock
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Design: Newport
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer: Corbin Russwin
Manufacturer Function: Store Door
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Rose/ Escutcheon: D Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Lip Length: 1-1/4"
Strike Type: Curved Lip Strike
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
