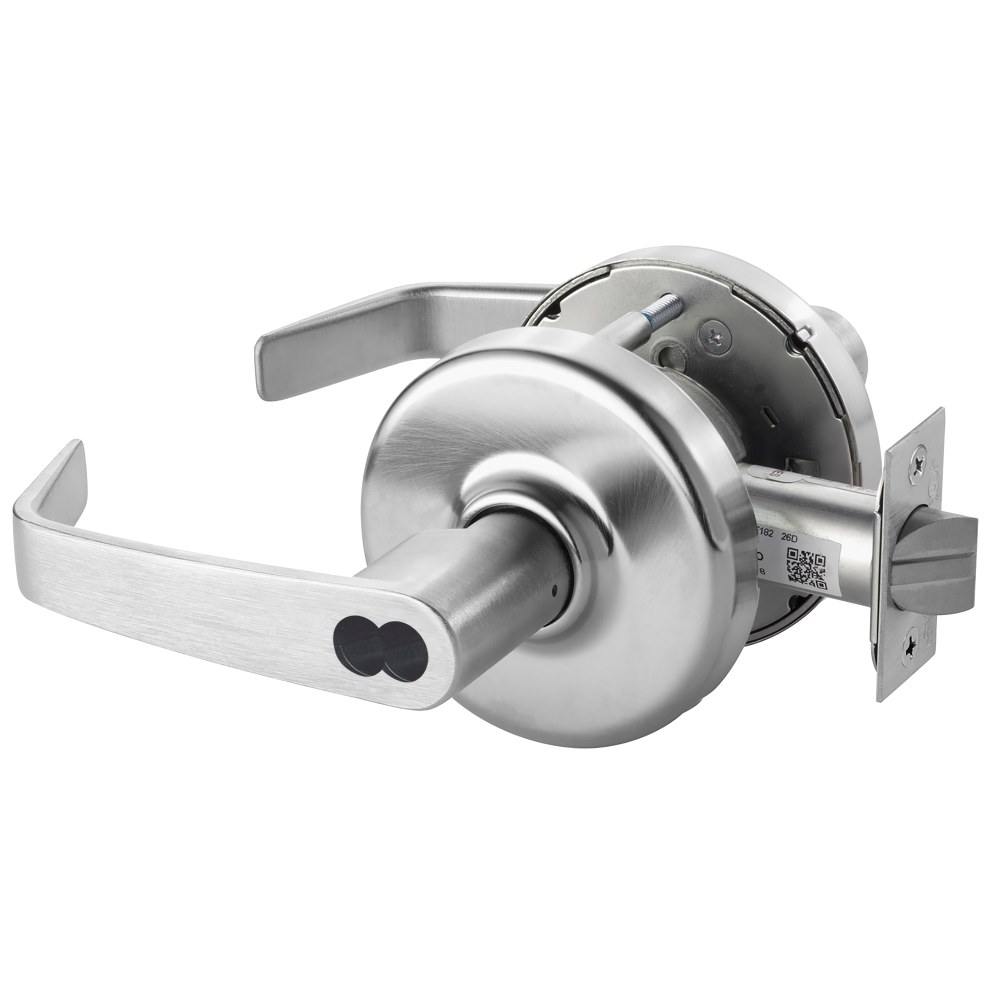

Corbin Russwin CLX3393 NZD 626 M08 Grade 1 Service Station Lock offers a blend of durability and style, making it ideal for high-traffic environments where aesthetics matter. This cylindrical lock, part of the renowned CLX3300 Series, is ANSI/BHMA Grade 1 certified, ensuring it meets stringent security standards. Designed with a Newport lever and a D Rose escutcheon, it features a sleek satin chrome finish that enhances any decor. Crafted from high-quality brass and bronze, the lock supports all cylinder formats, including SFIC Prep Less Core, making it versatile for both new constructions and retrofit projects. With a non-handed design, installation is straightforward, accommodating doors with thicknesses ranging from 1-3/4" to 2". The lock includes a deadlatch mechanism and a standard latch backset of 2-3/4", ensuring reliable performance. Additionally, it boasts a fire rating of 3 hours, providing peace of mind in safety-conscious settings. Backed by a 10-year limited warranty, the Corbin Russwin CLX3393 is an excellent choice for commercial applications, combining security, functionality, and style in one dependable package.
Grade 1 Service Station Cylindrical Lock, Newport Lever, D Rose, SFIC Less Core, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F92
Ansi Function: F92 - Service Station Door Lock
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 93-Service Station
Function Family: Service Station
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Service Station
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8"
Pins: 6 or 7
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
