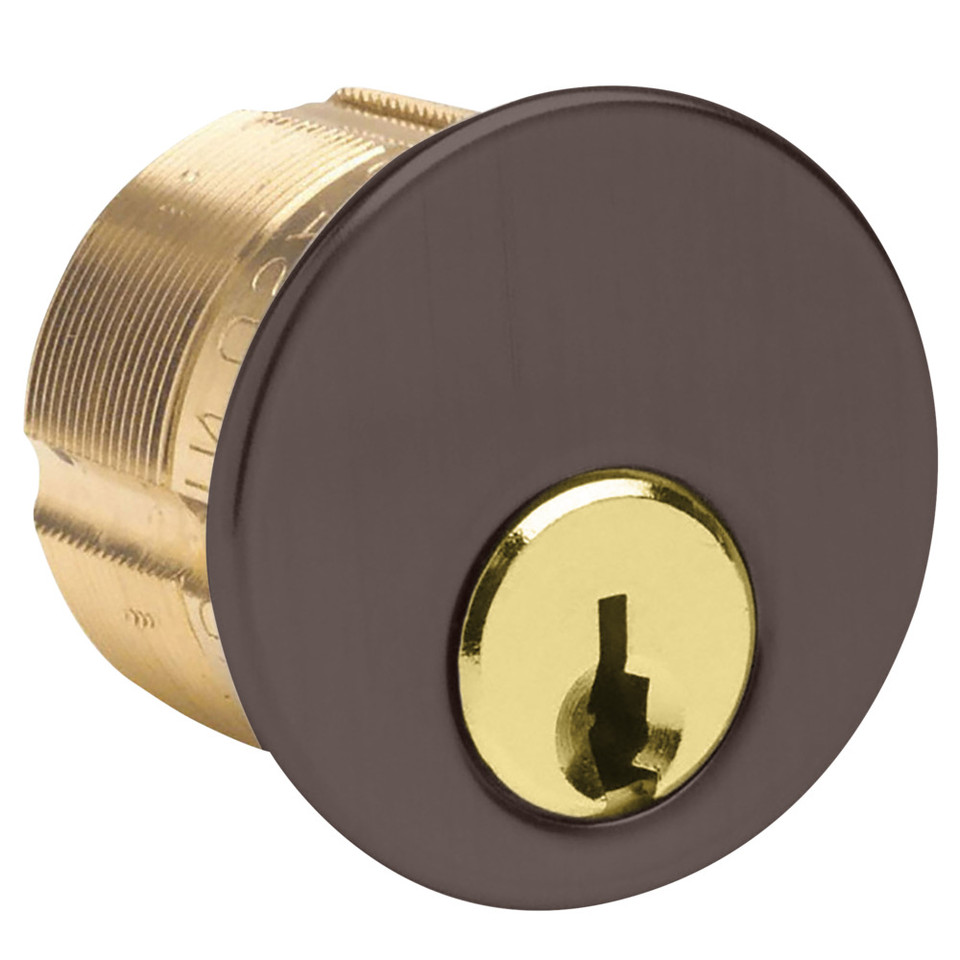

Corbin Russwin CR1000 114 A02 6 613E L4 0BIT KB10 2 1-1/4in Mortise Cylinder 6-Pin Cam L4, Standard Collar, Dark Oxidized Bronze

Corbin Russwin CR1000 114 A02 6 613E L4 0BIT KB10 2 1-1/4in Mortise Cylinder is engineered for reliability and versatility in security applications. This mortise cylinder features a 6-pin design, ensuring robust protection while allowing for smooth operation with its straight cam. The standard collar and dark oxidized satin bronze finish (613E/US10BE) not only enhance its aesthetic appeal but also provide superior corrosion resistance, making it an ideal choice for both residential and commercial environments. Designed for compatibility with Corbin Russwin Standard and Marks Standard cam cylinders, this model supports a range of keyways, including the Corbin L4. It comes with two standard shape keys, each stamped with the coined logo for easy identification. The cylinder length of 1-1/4 inches makes it suitable for various door applications, ensuring a snug fit. Additionally, the CR1000 series is notable for its flexibility; it allows for fixed or interchangeable core types, with the option for geographically restricted key sections. Whether you are looking to enhance security or simply replace an existing cylinder, the Corbin Russwin CR1000 Mortise Cylinder stands out as a reliable choice that meets the demands of modern locking systems.

1-1/4in Mortise Cylinder 6-Pin Straight Cam L4 6-Pin 0-Bit, Standard Collar, 613E/US10BE Dark Oxidized Satin Bronze

Corbin Russwin provides a full range of keyways for mortise, rim, deadbolt and component cylinders that provide a minimal level of control. Geographically restricted key sections are also available.

Features:

• Provides a full range of keyways for mortise, rim, deadbolt and Key In Knob/Key In Lever cylinders that provide a minimal level of control
• Geographically restricted key sections are also available.

Specifications:

• Core Type: Fixed, Interchangeable
• Cylinder Pins: 6 pin, 7 pin
• Cylinder Type: Mortise, Component, Rim

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black Suede Powder Coat
• WSP - White Suede Powder Coat
