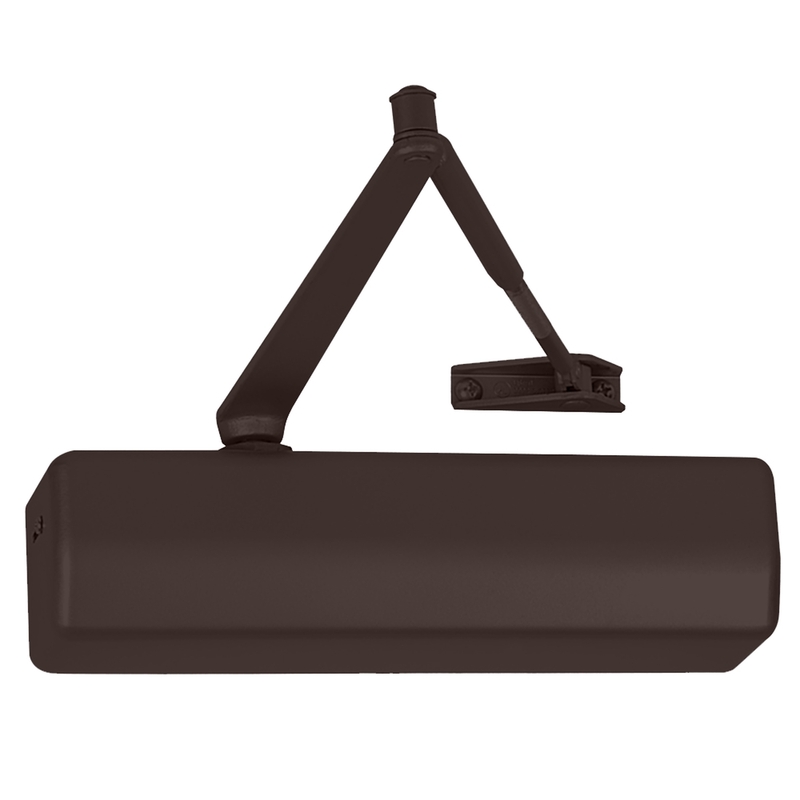

Corbin Russwin DC3200 690 M54 Grade 1 Cast Iron Body Door Closer

Corbin Russwin DC3200 690 M54 Grade 1 Closer Cast Iron Body is a robust solution designed for high-traffic environments where durability and reliability are paramount. This Grade 1 surface door closer features a full cover and a sleek dark bronze painted finish, ensuring it not only performs well but also complements a variety of architectural styles. Engineered for pull-side mounting, the DC3200 is non-handed and accommodates door sizes 1-6, making it versatile for both new constructions and renovations. Its seamless steel spring tube is designed to seal hydraulic fluid, while tapered valves provide precise adjustability, ensuring compliance with barrier-free codes. Capable of a full 180° door opening, this closer is ideal for diverse applications, including schools, healthcare facilities, commercial buildings, and more. With features like adjustable back check and a Quik-Install™ mounting bracket, installation is straightforward, minimizing labor costs and errors. The DC3200 meets or exceeds ANSI/BHMA A156.4 Grade 1 standards and has a UL10C fire rating, ensuring safety and compliance. Backed by a five-year limited warranty, this door closer is a dependable choice for professionals looking for quality hardware that stands the test of time.

Grade 1 Closer Cast Iron Body

Grade 1 Surface Door Closer, Regular, Pull Side Mount, Size 1-6, Full Cover, Dark Bronze Painted Finish, Non-Handed

The mid-priced, cost-effective choice for high-traffic situations. The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovation

Ideal for high-traffic situations and has reliable latching for access control and fire code compliance.

THE DC3000 Series is a mid-priced, cost-effective choice. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including schools and universities, health care, governement, commercial/industrial, office/retail, transportation/utilies, hotels/conference centers, and religious.

• Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
• Compliance with building and barrier-free codes
• Up to full 180° door opening
• One-piece seamless steel spring tube seals in hydraulic fluid
• Tapered valves allow precise adjustment
• Cast iron body
• Quik-Install™ mounting bracket speeds installation, reducing cost and errors
• Five-year limited warranty
• UL10C, UBC
• Powder painted arms and retrofit plates

Resources

• DC3000 Series Catalog
• DC3000 Series Door Closers Cut Sheet
• DC3200 Non-Hold Open, Regular Arm Application with A10 Heavy Duty Arm
• DC3200 Regular, Parallel or Top Jamb Mount
• DC3210 x HD Parallel Arm (A2, A4 or A5)
• DC3210 x HD Parallel Arm (A3)
• DC3210 x HD Spring Stop Parallel Arm (A11 or A12)
• ED3000 Series Lever Handle Control
• ED3200/ED3200A Series Rim Type Exit Device
• ED3400/ED3400A Series SVR Exit Devices
• ED3600 & ED3600A Series Mortise Exit Device
