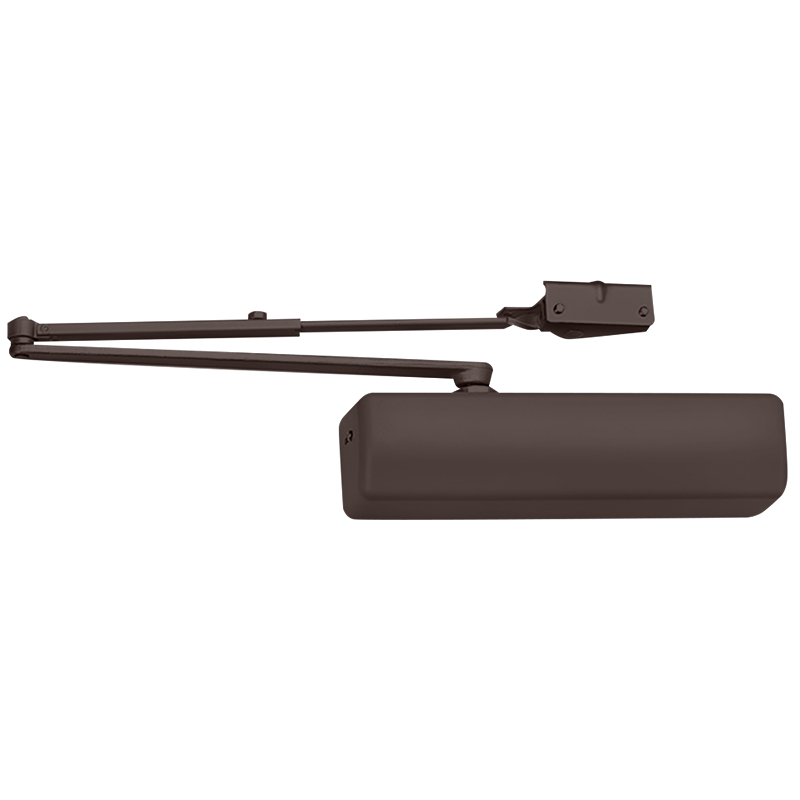

Corbin Russwin DC3210690M54 Grade 1 Tri-Packed Adjustable Door Closer with Sex Nuts and Bolts features a robust design, ideal for high-traffic commercial and institutional environments. Meeting or exceeding ANSI/BHMA A156.4 Grade 1 requirements, this door closer ensures durability and reliability, making it a superior choice for demanding applications. Constructed from cast iron with a dark bronze finish, this surface-mounted closer not only enhances aesthetic appeal but also offers exceptional performance. Its one-piece seamless steel spring tube is sealed in hydraulic fluid, providing smooth operation and longevity. The closer accommodates a full 180-degree door opening, while tapered valves allow for precise adjustments to suit specific needs. With a dimension of 3" x 11-5/8" x 2-3/4", this adjustable closer is designed for push side mounting, featuring a mounting hole pattern of 1" x 4-5/16" rectangular. It is UL listed and complies with building and barrier-free codes, ensuring safety and accessibility. Additionally, the limited 15-year warranty underscores Corbin Russwin's commitment to quality. Choose the DC3210690M54 for a reliable, stylish, and highly functional door closing solution.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: CORDC3210-690, CORDC3210690, DC3210-690, DC3210-690-M54, DC3210690, DC3210690M54
Arm Type: Double Lever Arm with PA Bracket
Back Check: Adjustable
Base Material: Varies
Bracket: Available
Category: Door Closers and Accessories
Cement Case: No
Closer Size: Adj. 1 to 6
Closer Type: Surface Mounted Closer
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Full
Degree Swing: 180 Deg.
Dimension: 3" x 11-5/8" x 2-3/4"
Door Application: Door Closers
Drop Plate: Available
Fasteners: Sex Bolts
Finish: Dark Bronze
Finish Code: 690
Finish Color: EB, Oil Rubbed Bronze, Statuary Bronze
Finish Description: Dark Bronze Painted
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Hand: Non-Handed
Handing: Non-Handed
Hazardous Material: NO
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Manufacturer Warranty: Limited 15 Year Warranty
Material: Cast Iron
Mounting: Parallel Arm (Pull Side)
Mounting Group: Hydraulic
Mounting Hole Pattern: 1" x 4-5/16" Rectangular Mounting
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-12-06
Pack Height: 3.88"
Pack Height 2: 14.25"
Pack Length: 13.75"
Pack Length 2: 15"
Pack Qty: 1
Pack Volume: 392.95 in³
Pack Volume 2: 1656.56 in³
Pack Width: 7.38"
Pack Width 2: 7.75"
Physically Handicapp: Yes
Screw Type: Self Tapping
Sealed Closer: Yes
Series: DC3200 Series
Ship Weight: 11.4 lbs.
Spacer: Available
Special Rust Inhibitor: No
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Subtype: Door Closer
Through Bolts: Yes
Type: Surface
Ul Listing Type: UL / ULC / UL10C Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Voltage: Mechanical
