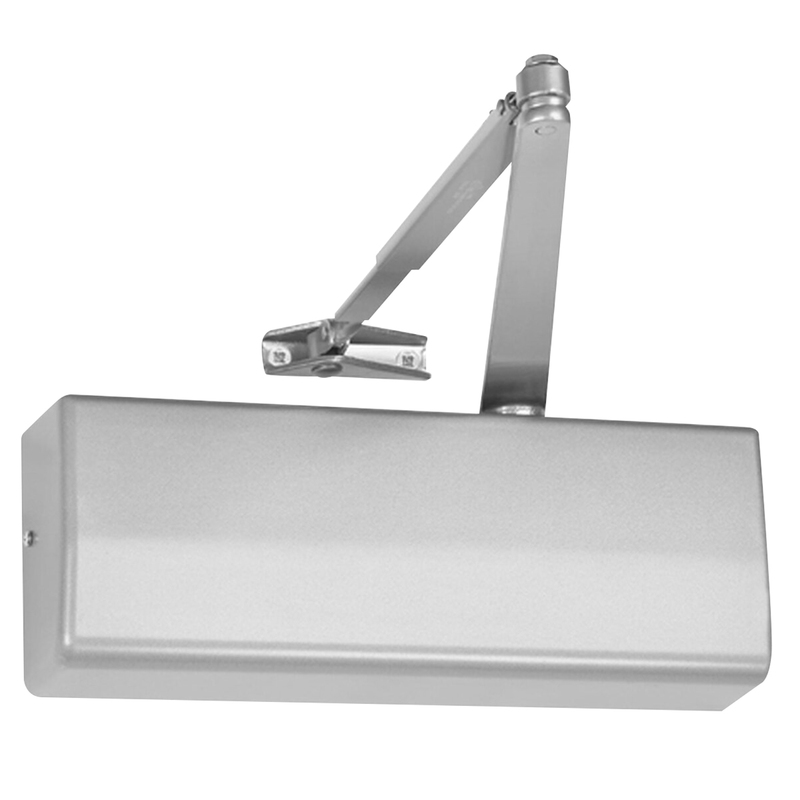

Corbin Russwin DC8200 A1 689 Grade 1 Cast Iron Door Closer

Corbin Russwin DC8200 A1 689 Grade 1 Closer Cast Iron Body is a robust and reliable surface door closer designed to meet the demands of high-use environments. Built with a heavy-duty forged arm and a cast-iron body, the DC8200 is engineered for durability and performance, making it an ideal choice for schools, office buildings, healthcare facilities, and retail spaces. This Grade 1 closer features a double lever arm with friction hold open capability, allowing for adjustable degree hold open and swing up to 180 degrees. Non-handed and easy to install, it accommodates sizes 1 through 6, ensuring flexibility for various door applications. The closer also includes captured valves and Torx® security screws for enhanced security, making it vandal- and tamper-resistant. Additionally, the DC8200 meets ADA requirements and UL10C positive pressure requirements for fire-rated openings, making it a safe choice for any commercial setting. It is equipped with a universal Quik-Install™ bracket and self-drilling screws for straightforward installation. With a 25-year limited warranty, this closer promises long-lasting performance and peace of mind for building professionals and homeowners alike.

Grade 1 Closer Cast Iron Body

Grade 1 Surface Door Closer, Double Lever Arm Friction Hold Open, Pull Side Mount, Size 1 to 6, Full Cover, Non-Handed, Aluminum Painted

High-quality products and innovative designs are the foundation for the long history and reputation of Corbin Russwin Architectural Hardware. That tradition continues with the Grade 1 DC8000 Series door closer, the perfect choice for high-use openings and doors that must meet ADA requirements. A variety of arms, finishes and quality features make the easy-to-install DC8000 ideal for schools, office buildings, health care facilities and retail complexes. The series also meets UL10C and UBC7-2c positive pressure requirements for fire-rated openings.

Grade 1 closer that meets ADA requirements.

The DC8000 offers added muscle for high-use and high-abuse situations. Captured valves and optional Torx® security screws offer added security, making the closer highly vandal- and tamper-resistant.

• Heavy-duty forged arm
• Multi-sized (1 through 6)
• Captured valves
• Self-drilling screws
• Double heat-treated steel pinion
• Universal Quik-Install™ bracket
• Optional Tri-packed arm assembly
• Cast-iron closer body
• Retrofit plates allow direct retrofit of competitor's product
