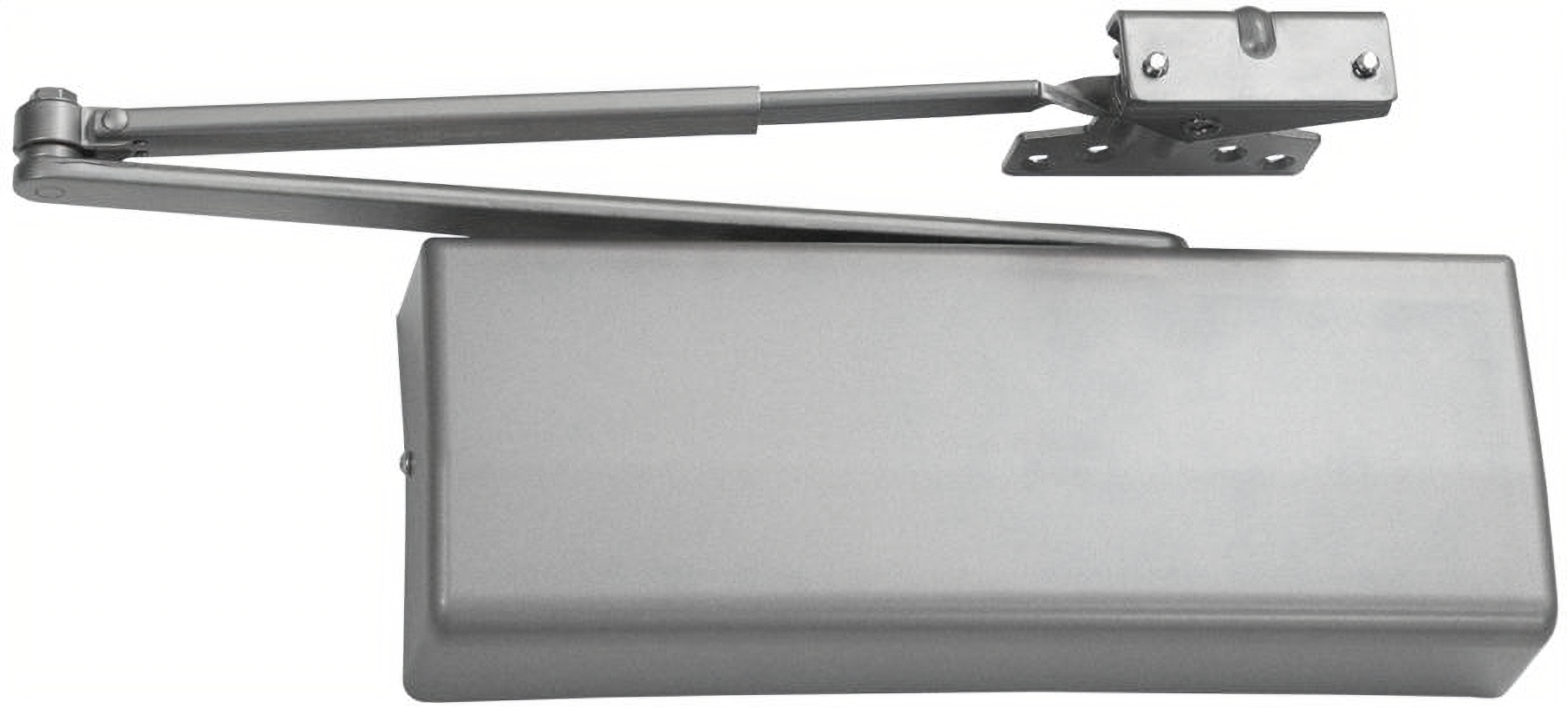

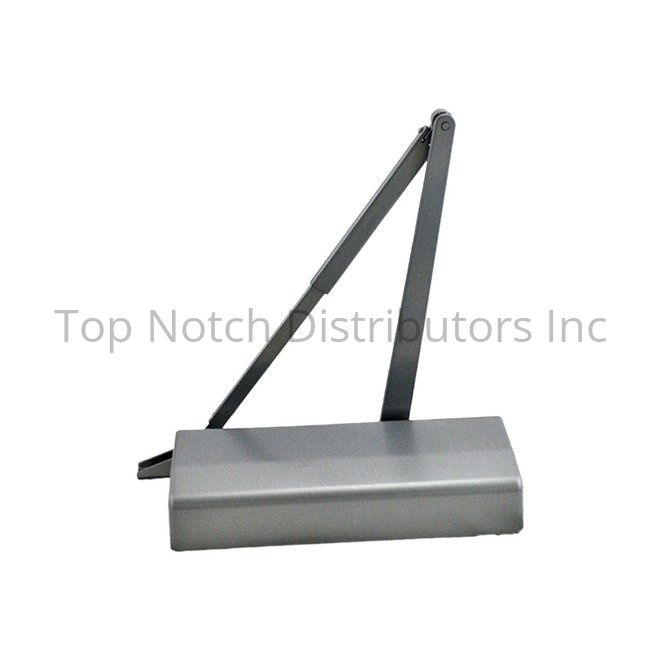

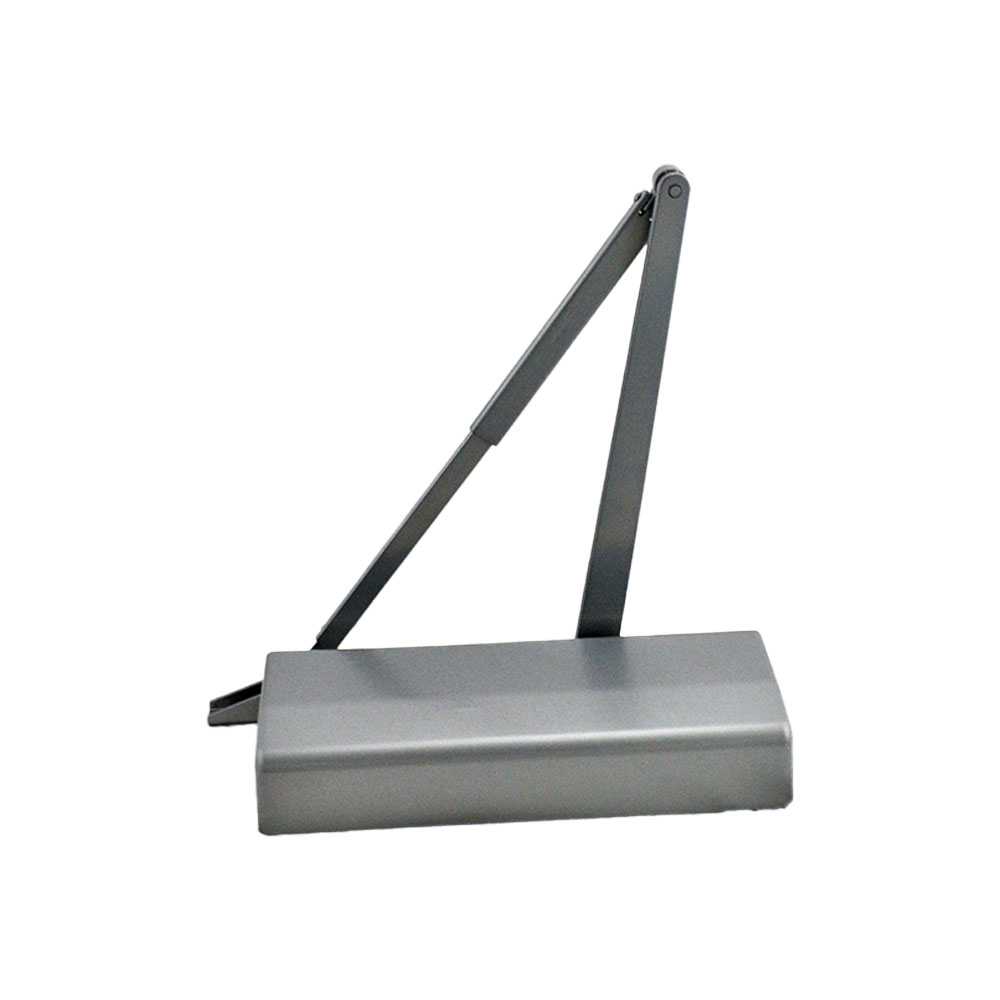

Corbin Russwin DC8210689M54 Grade 1 Adjustable Door Closer Tri-Pack, Aluminum Finish

Corbin Russwin DC8210689M54 Grade 1 Tri-Packed Adjustable Door Closer with Sex Nuts and Bolts Aluminum Finish ensures durability and reliability for your commercial and institutional facilities. Designed for surface mounting, this door closer features a heavy-duty forged arm and a double heat-treated steel pinion, providing robust performance even in high-traffic areas. With its adjustable spring size ranging from 1 to 6, the DC8210689M54 allows for customized closing speeds and strengths, accommodating various door sizes and weights. The closer is equipped with captured valves for precise control over hydraulic fluid, ensuring smooth and consistent operation. Installation is simplified with the included Quik-Install bracket and self-drilling screws, making it an efficient choice for contractors and builders. This model measures 4-7/16" x 12" x 2-1/4" and comes with a sleek aluminum finish (code 689), enhancing the aesthetic appeal of any entryway. The DC8200 Series is UL listed, ensuring compliance with safety standards. Backed by a limited 25-year warranty, it offers peace of mind for long-term use. Ideal for both new constructions and retrofits, the Corbin Russwin DC8210689M54 is a trusted solution for secure and functional door control.

Grade 1 Tri-Packed Adjustable Door Closer with Sex Nuts and Bolts Aluminum Finish

Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.

• Heavy Duty Forged Arm
• Double Heat Treated Steel Pinion
• Captured Valves
• Self Drilling Screws
• Quik-Install Bracket

Features

• Handing: Non-handed.
• Arm: Standard: heavy-duty forged steel.
• Power Adjustment Arm Bracket: 15% adjustment standard for regular arm and top jamb (non-hold open only).
• Seals: "O" rings.
• Fluid: Standard high lubricity extreme temperature hydraulic fluid.
• Mountings: Standard: regular and top jamb. Optional mountings available.
• Springs: Chrome silicon wire.
• Tri-packed: DC8210 comes with screws, brackets and soffit plates to allow for regular, top jamb and parallel arm installations.
• Mounting Bracket: Universal Quick-Install™ mounting bracket standard.
• Spring Power: DC8200 Series closers: multi-sized; fully adjustable size 1 through 6.
• Valves: Latching speed valve, closing speed valve and backcheck valve are standard. Delayed action valve optional. Delayed action preset for 20 seconds. Between 90° and 70° for all mountings. To order specify M71.
• Degree of Opening: Up to full 180° opening standard for regular, top jamb and parallel arm mountings, conditions permitting.
• Fasteners: Self drilling and machine screws standard. Sleeve nuts and bolts (SNB) optional; specify M54.
• Cover: Standard: full ABS cover. Optional: full metal cover; specify M73 x hand.
• Body: Cast-iron case with seamless cold headed steel spring tube..
• Spindle: Cold headed heat-treated steel.
• Piston: 1-1/2" diameter; Precision machined, heat-treated steel.
