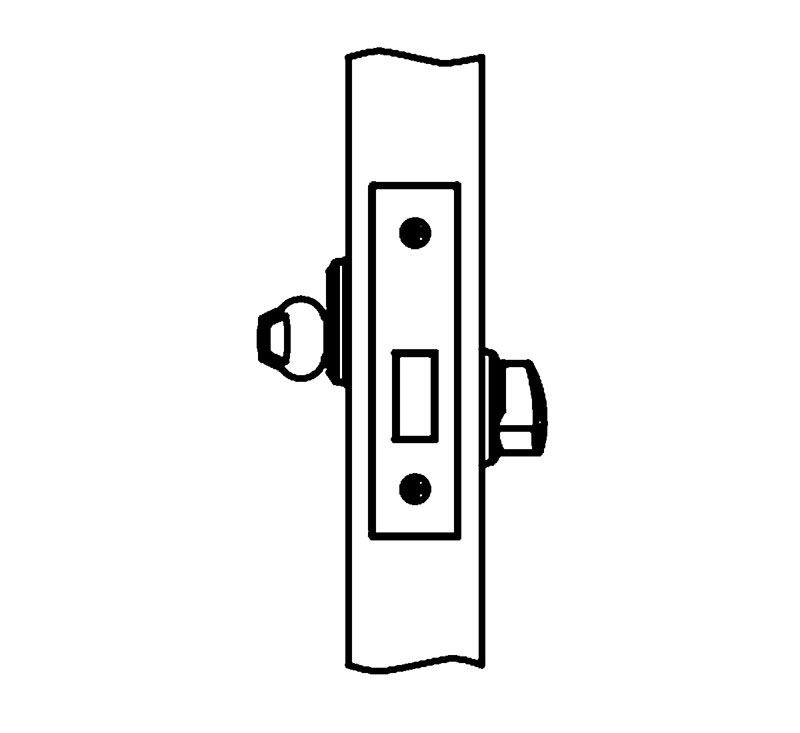

Corbin Russwin DL4117 613 CL6 Mortise Deadbolt

Corbin Russwin DL4117 613 CL6 Mortise Deadbolt delivers robust security with its classroom function, making it an ideal choice for educational and commercial settings. This large format interchangeable deadbolt features a non-handed design, accommodating standard door thicknesses of 1-3/4 inches, with optional thicknesses available. The backset measures 2-3/4 inches, ensuring compatibility with a variety of door configurations. Constructed from heavy wrought steel with a zinc dichromate finish, the lockcase guarantees durability and long-lasting performance. The deadbolt itself is made of steel with a hardened pin, providing a secure 1-inch throw. The striking plate, available in wrought brass or bronze, measures 3-1/2 inches by 1-1/8 inches, and optional strikes can be requested to meet specific needs. The Corbin Russwin DL4117 is equipped with a 6-pin L4 keyway cylinder and comes with two nickel silver standard keys. It supports various keying options, including master keying and interchangeable core systems, enhancing its versatility. Additionally, this deadbolt is listed for use on fire doors, offering a fire rating of 3 hours. Backed by a one-year limited warranty, this deadbolt is as reliable as it is functional, ensuring peace of mind for users.

Mortise Deadbolt

Classroom Function, Large Format Interchangeable Less Core, Dark Oxidized Satin Bronze Oil Rubbed

Mortise Deadbolt. Features Handing: Non-handed. Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes. Backset: 2-3/4" (70mm). Lockcase: Heavy wrought steel; zinc dichromate finish. Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm). Deadbolt: Steel with hardened pin; 1" (25mm) throw. Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available. Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes. Keys: Two nickel silver standard. Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC) Warranty: One-year limited.

Listed for use on fire doors.

• Handing: Non-handed.
• Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy wrought steel; zinc dichromate finish.
• Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
• Deadbolt: Steel with hardened pin; 1" (25mm) throw.
• Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available.
• Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.
