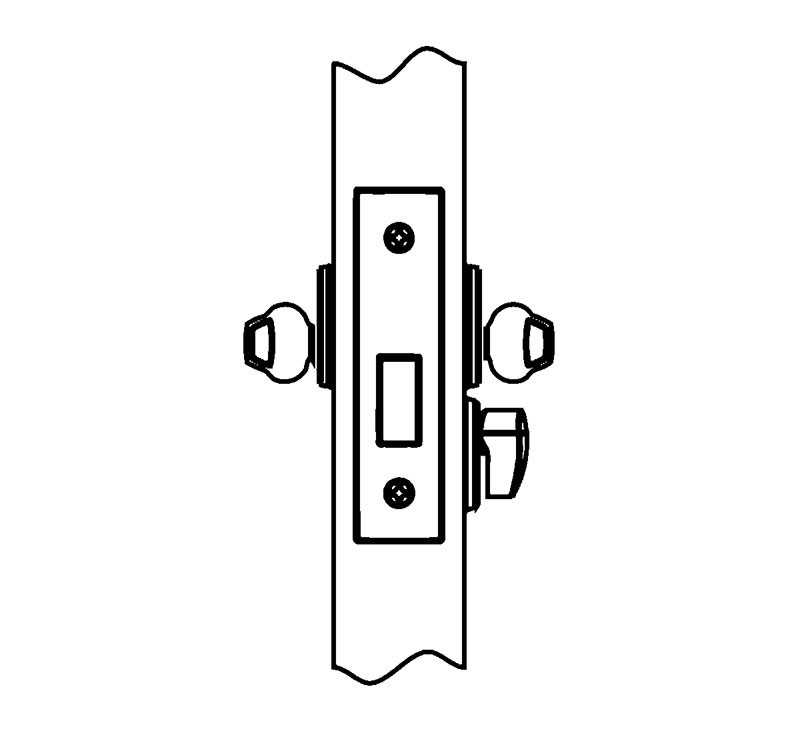

Corbin Russwin DL4122 626 LC Mortise Deadbolt

Corbin Russwin DL4122 626 LC Mortise Deadbolt offers a robust security solution for both commercial and residential applications. This double cylinder deadbolt features a thumbturn mechanism and comes less cylinder, allowing for customizable keying options to meet your specific security needs. Designed for standard door thicknesses of 1-3/4" (44mm), it is adaptable for various door types with an adjustable front that accommodates flat or beveled edges. Constructed from heavy wrought steel with a zinc dichromate finish, the lockcase guarantees durability and reliability. The deadbolt is crafted from hardened steel, providing a 1" (25mm) throw for enhanced security. The standard strike, available in wrought brass or bronze, measures 3-1/2" (89mm) x 1-1/8" (29mm), delivering a solid strike point for maximum effectiveness. The Corbin Russwin DL4122 includes a 6-pin L4 keyway with two nickel silver keys, and offers various keying features, including master keying and interchangeable cores. Its one-year limited warranty ensures peace of mind, while the fire-rated certification for up to three hours makes it suitable for use on fire doors. Choose the DL4122 for a blend of strength, adaptability, and ease of use in securing your spaces.

Mortise Deadbolt

Double Cylinder x Thumbturn, Less Cylinder, Satin Chrome

Mortise Deadbolt. Features Handing: Non-handed. Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes. Backset: 2-3/4" (70mm). Lockcase: Heavy wrought steel; zinc dichromate finish. Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm). Deadbolt: Steel with hardened pin; 1" (25mm) throw. Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available. Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes. Keys: Two nickel silver standard. Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC) Warranty: One-year limited.

Listed for use on fire doors.

• Handing: Non-handed.
• Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: 2-3/4" (70mm).
• Lockcase: Heavy wrought steel; zinc dichromate finish.
• Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
• Deadbolt: Steel with hardened pin; 1" (25mm) throw.
• Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available.
• Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.
