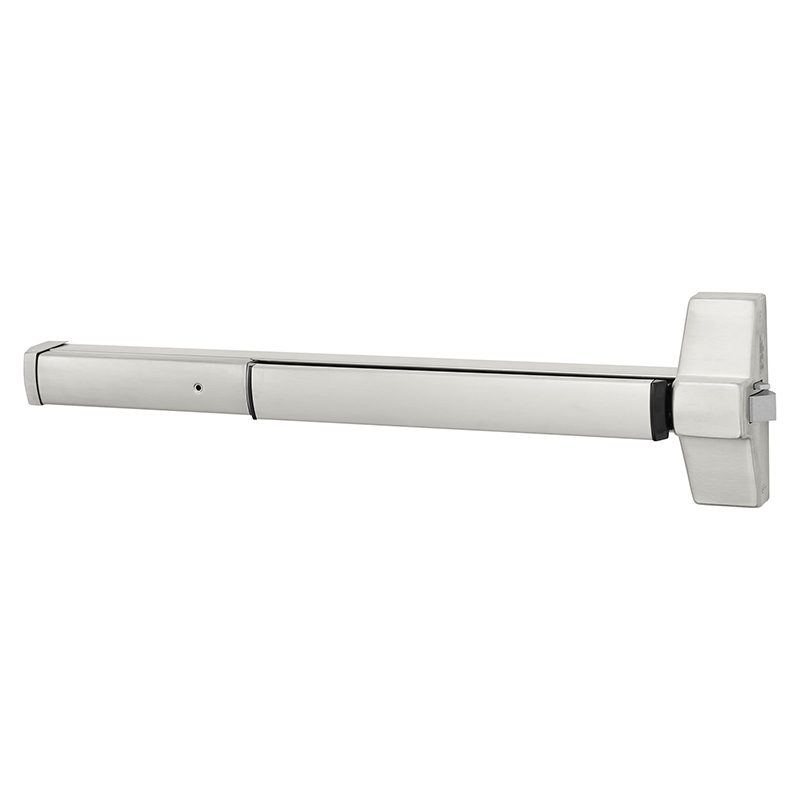

Corbin Russwin ED5200 630 MELR M92 Grade 1 Rim Exit Device offers an exceptional blend of security and convenience, making it an ideal choice for commercial applications. This 36" rim exit device features motorized latch retraction and touchbar monitoring, providing ease of use while ensuring safety compliance. The ED5200 Series is constructed from durable satin stainless steel, designed to withstand heavy use and backed by a 5-year warranty. The ED5200 excels in both functionality and versatility, with modular construction that allows for various configurations, including rim, mortise, surface vertical rod, and concealed vertical rod options. Additionally, it is equipped with a range of electrified solutions, such as delayed egress and electrically controlled trim, catering to diverse security needs. This exit device meets ANSI/BHMA Grade 1 requirements for strength and cycle durability, ensuring reliable performance in demanding environments. It is also ADA compliant and available with optional Microshield® antimicrobial coating for enhanced hygiene. Designed to fit doors ranging from 30 to 36 inches wide and accommodating various materials, including metal and wood, the Corbin Russwin ED5200 is a robust choice for modern architectural requirements.
Grade 1 Rim Exit Device
Rim Exit Device, 36", Motorized Latch Retraction, Touchbar Monitoring, REX, Satin Stainless Steel
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field. Testing procedures go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 Series, which is backed by a 5-year warranty. Over the past 100 years, Corbin Russwin has been well known for weaving pleasing aesthetics and inventive designs into architectural door hardware. The ED5000 Series offers smooth lines and a full range of trim designs with visual diversity. Today's door hardware must fulfill life-safety and security needs. The ED5200 Series offers features that excel in these areas. The ED5200 Series also offers a full range of electrified options, including delayed egress, motorized electric latch retraction, electrically controlled trim and switches among several other options.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36"
Device Type: Rim
Door Material: Metal or Wood
Door Thickness: 1-3/4 in.
Door Width: 30 In. - 36 In.
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Handing: Non-Handed
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Series: ED5000 Series Pushpad Exit Devices
Strike Standard: 650F30-8
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Type: Exit Devices
Unit of Measure: EACH
