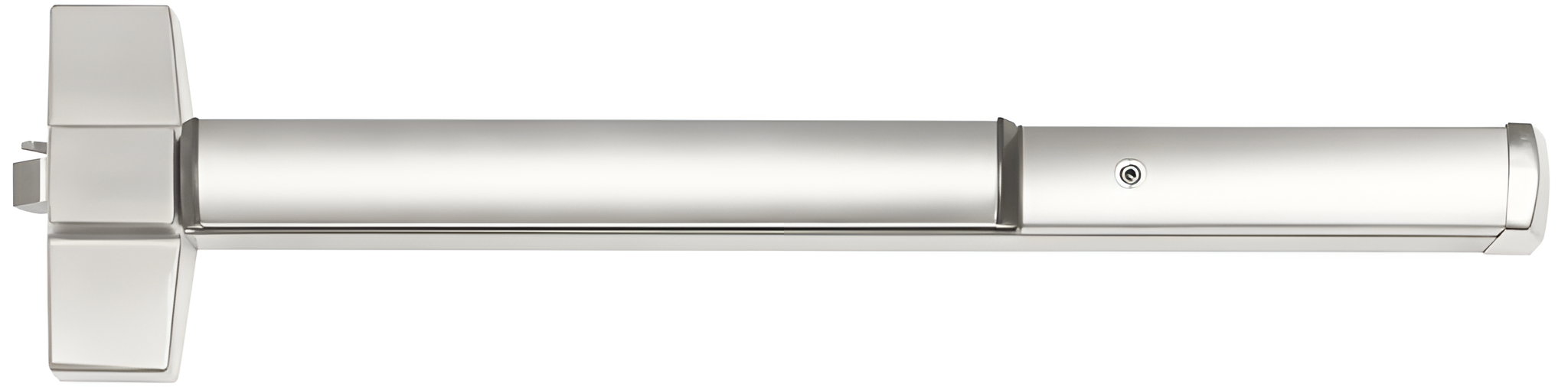

Corbin Russwin ED5200A-630-36-M54 36in Fire Rated (3hr) Rim Exit Device offers a robust solution for emergency egress in various commercial applications. With a fire rating of 180 minutes, this exit device is designed to meet stringent safety standards, making it ideal for schools, hospitals, office buildings, and theaters. Constructed with durability in mind, it exceeds ANSI/BHMA Grade 1 requirements, ensuring long-lasting strength and reliability. The modular design allows for easy installation and maintenance, while the satin stainless steel finish not only provides an attractive look but also complements a range of architectural styles. This device features a single point rim latching mechanism, suitable for both single and double door applications with mullions. The ED5200 series is compatible with a variety of electro-mechanical solutions, offering additional security features such as the SecureBolt® Security Deadbolt and options for a delayed egress exit device. Environmentally conscious consumers will appreciate that this device is made from 61% post-consumer recycled content, contributing to sustainability efforts. With a five-year warranty and available in various decorative trim designs, the Corbin Russwin ED5200A-630-36-M54 is a reliable and stylish choice for enhancing safety and accessibility in any building.

36in Fire Rated (3hr) Rim Exit Exit Device, Thru Bolts SNB (M54), 630/US32D Satin Stainless Steel

Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength. These exit devices are aesthetically pleasing and offer a full range of decorative trim designs, including the Museo® and Vineyard™ Collections. If electronic access control is required, or just a simple monitoring switch, the ED5000 series offers a full range of electrified options, including a delayed egress exit device and electrically controlled trim. All options can be tied into existing security and fire alarm systems for easy monitoring.

Applications:

• Schools
• Hospitals
• Office Buildings
• Theaters

Features:

• Modular construction, maintenance-free design
• Available in rim, mortise, surface vertical rod and concealed vertical rod
• Complete offering of electro-mechanical solutions
• Available with Microshield® antimicrobial coating
• Made from 61 percent post-consumer recycled content as per LEED MR credit 4
• 5 year warranty
• Available with Museo® decorative levers and 13 architectural finishes

Benefits:

• Strength & Reliability: Independently-verified cycle and strength testing proves the ED5000 Series exceeds ANSI/BHMA Grade 1 standards for long life.
• Security: Multiple security features provide additional resistance against vandalism and unauthorized entry.
• Ease of Install & Maintenance: Modular components and robust design allow for quick and easy installation, and maintenance free operation.
• Aesthetics: Attractive, minimalist design featuring many levers and architectural finishes to blend with any decor.
• Sustainable: Less product replacements due to long life and high post-consumer recycled content – contributing to your sustainability efforts.

Collections:

• ED5200 Series Rim Exit Device
• Designed for standard width stile applications on wood and metal doors
• Single point rim latching device
• Single and double door applications with mullions
• ANSI/BHMA Grade 1
• UL Fire and Panic listed
• Also available in narrow stile (ED4200 Series)
• ED5400 Series Surface Vertical Rod Exit Device
• Designed for standard width stile applications on wood and metal doors
• Two point latching (top & bottom with adjustability through center case)
• Single or double door applications
• ANSI/BHMA Grade 1
• UL Fire and Panic Listed
• Also available in narrow stile (ED4400 Series)
• ED5600 Series Mortise Lock Exit Device
• Designed for standard width stile applications on wood and metal doors
• Concealed single point guarded latching for additional security
• Available for single door applications or double door applications
• ANSI/BHMA Grade 1
• UL Fire and Panic listed
• ED5800 Series Concealed Vertical Rod Exit Device
• Designed for standard width stile applications on metal or aluminum doors
• Concealed rods for security and aesthetics
• Single and double door applications
• Available less bottom rod
• ANSI/BHMS
• UL Fire and Panic listed
• Also available in narrow stile (ED4800 Series)

Options:

• SecureBolt® Security Deadbolt provides increased security by resisting unauthorized entrance from the use of credit cards, crowbars, door rattling and shaking, etc.; therefore significantly reducing the threat of unauthorized entry.
• PathLite™ Photoluminescent Option the PathLite illuminated exit device increases the visibility of exit locations in dark or smoke filled passages, supplementing existing codes for egress lighting.
• Double Cylinder Function Corbin Russwin offers a double cylinder function for mortise, rim and SecureBolt® exit devices. This function allows the outside trim to be locked by the inside or outside cylinder. A cylinder on the inside cover provides a quick, easy way to lock the outside trim without opening the door.
