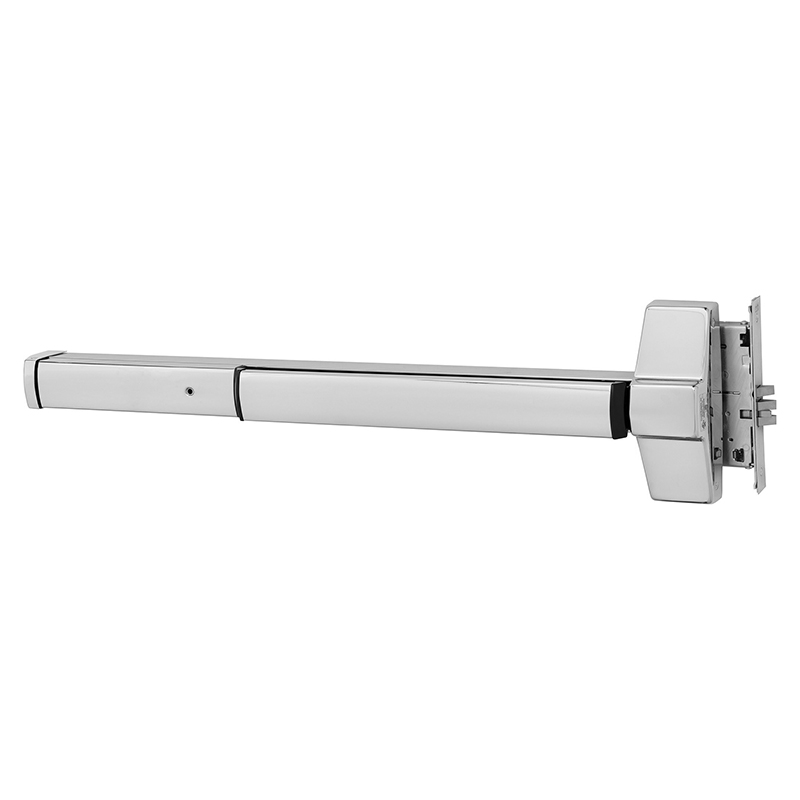

Corbin Russwin ED5600L 625 LHR Grade 1 Mortise Exit Device offers exceptional durability and security for commercial applications. Designed for left-hand reverse installations, this 36-inch exit device is perfect for use with classroom or passage lever trim, providing both functionality and versatility. The sleek bright chrome finish not only enhances aesthetic appeal but also ensures longevity. With a modular construction and maintenance-free design, the ED5600L is built to withstand the rigors of high-traffic environments while exceeding ANSI/BHMA Grade 1 standards for cycle and strength. It features hex key dogging for added convenience and is compatible with various door materials, including metal and wood, with a thickness of 1 3/4 inches. The wide stile pushpad design allows for easy operation, making it an ideal choice for quick egress. This exit device is part of the ED5000 Series, which includes options for rim, mortise, surface vertical, and concealed vertical rod configurations. Environmentally responsible, the device is made from 61% post-consumer recycled content and is EPD certified. A five-year warranty ensures peace of mind, making the Corbin Russwin ED5600L a reliable choice for enhancing safety and accessibility in commercial spaces.
Grade 1 Mortise Exit Device
Mortise Exit Device, Left Hand Reverse, 36", Exit Only or for use with Classroom or Passage Lever Trim (Not Included), Bright Chrome
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware, and today's wide stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit device bar and a full range of trim designs with visual diversity, including the MusÂo and Vineyard Collections.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
Base Material: Brass or Bronze
Commercial Residential: Commercial
Device Length: 36"
Device Type: Mortise
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1 3/4 In.
Door Width: 30 In. - 36 In.
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Grade: Grade 1
Handing: LHR
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Accepts Passage or Classroom Lever Trim
Minimum Stile Size: 4-1/2 In.
Pack Height: 5.75"
Pack Length: 39.75"
Pack Qty: 1
Pack Volume: 2342.77 in³
Pack Width: 10.25"
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: ED5000 Series Pushpad Exit Devices
Ship Weight: 16.1 lbs.
Strike Standard: 650L65
Subtype: Mortise Exit Devices
Type: Exit Devices
Unit of Measure: Each
