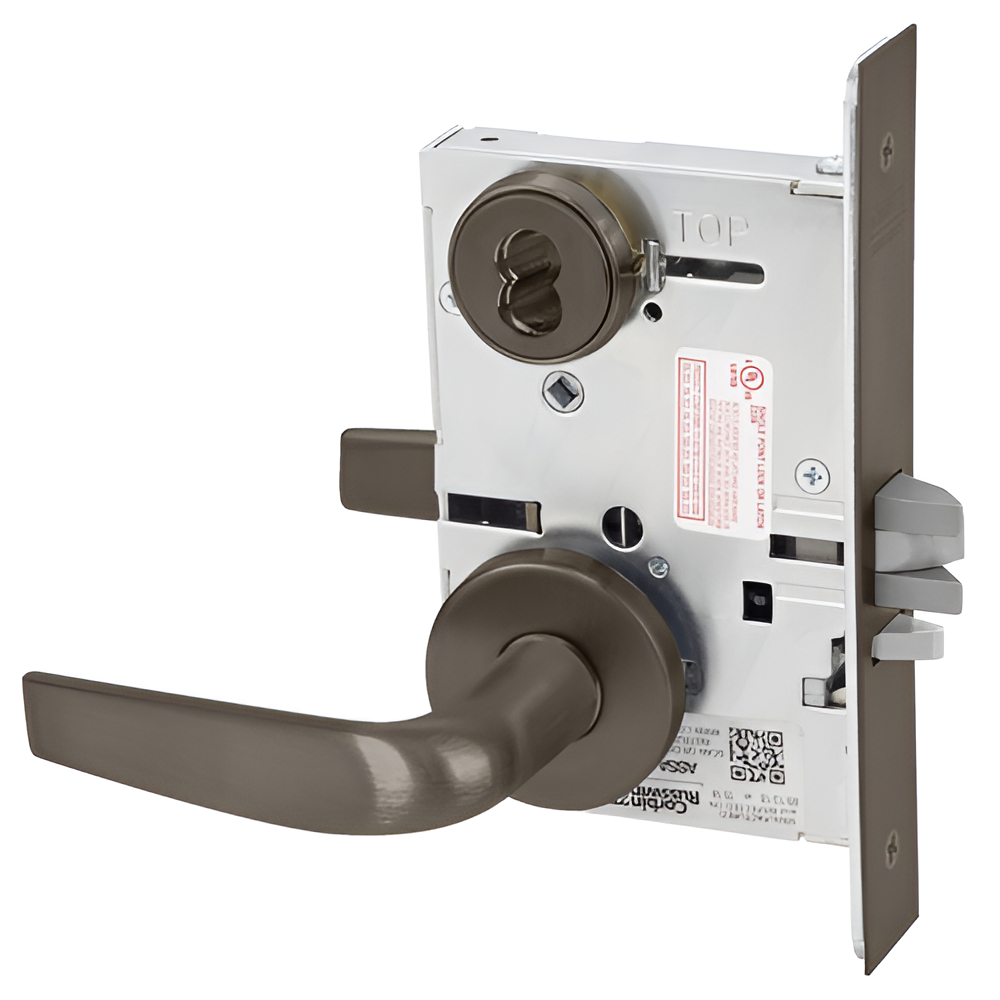

Corbin Russwin ML2002 CSA 613E CL6 V20 V01 Classroom Intruder Mortise Lock Kit with Citation Lever LFIC HousingsCorbin Russwin ML2002 CSA 613E CL6 V20 V01 KIT is a robust classroom intruder mortise lock designed for high-traffic environments, combining durability with advanced security features. Constructed from heavy-gauge steel, this ANSI/BHMA Grade 1 lock is built to withstand abuse while offering a full range of functions, including a dual visual indicator system that clearly shows the locked/unlocked status of the door both inside and outside. This model features a stylish Citation lever with an A Rose trim, integrating seamlessly with a wide variety of trim options. The lock includes two LFIC 6-pin large format interchangeable core mortise housings, ensuring flexibility within existing Corbin Russwin key systems. Its innovative design incorporates direct drive performance, delivering consistent torque during lever operation and eliminating sag. The ML2002's field-reversible latchbolt simplifies installation, while its compatibility with access control platforms enhances security options. Environmentally conscious users will appreciate the EcoFlex®️ technology, which promotes energy savings. Furthermore, the lock's ten-year limited warranty underscores its reliability. With specifications including a backset depth of 2 3/4", maximum door thickness of 4", and available finishes including dark oxidized satin bronze, the Corbin Russwin ML2002 is an ideal choice for those seeking both performance and style in their security solutions.
KIT - Classroom Intruder Mortise Lock, Citation Lever with A Rose Trim, 2 Each LFIC 6-Pin Large Format Interchangeable Core Mortise Housings, A01 Clover Cam, Less IC Cores, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2002 CSA 613E CL6 V20 V01, ML2002CSA613ECL6V20V01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Cylinder Type: 6-Pin, Less Core, LFIC - Corbin
Door Application: Mortise Locks

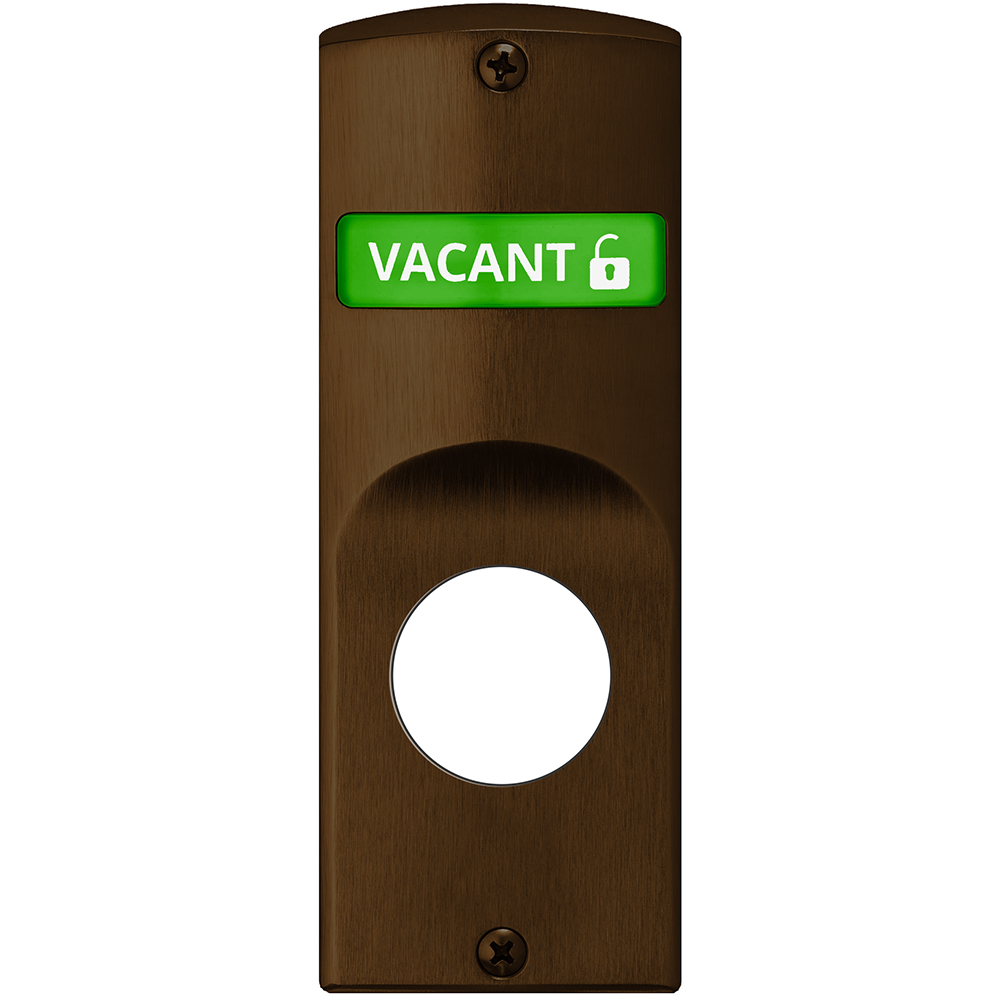

Door Indicators: Double Visual Indicator, Exterior Indicator - Green/Red, Exterior Indicator - Vacant/Occupied, Interior Indicator - Green/Red, Interior Indicator - Locked/Unlocked
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze
Function: Classroom Intruder
Lever Design: Citation
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
