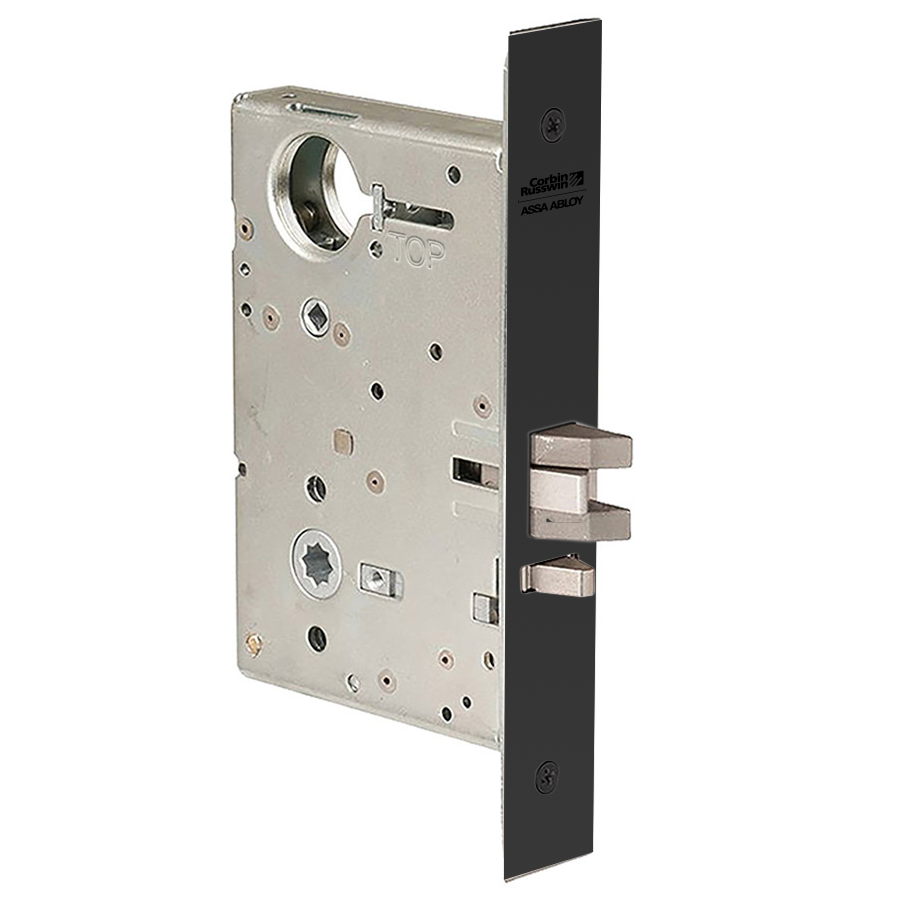

Corbin Russwin ML2002 LL BSP LC Classroom Intruder Mortise Lock Body, ANSI Strike Plate, Grade 1, Black Suede

Corbin Russwin ML2002 LL BSP LC KIT is a robust classroom intruder mortise lock body designed to withstand the demands of high-traffic environments. This Grade 1 lock features a durable black suede powder coat finish and comes equipped with an ANSI strike plate and armored front, ensuring both security and longevity. The handing is field reversible, making installation and adjustments straightforward without the need for disassembly. Engineered for performance, the ML2000 Series utilizes direct drive technology to provide consistent torque during lever rotation, while the crisp lever return eliminates sagging. The lock is compatible with a variety of cylinder types and integrates seamlessly with both new and existing Corbin Russwin key systems, including access control platforms. With 63 available functions, including vandal-resistant and behavioral health options, this lock offers versatility for diverse applications. Notably, the ML2002 is designed for sustainability, utilizing EcoFlex®️ technology for significant energy savings. It accommodates door thicknesses ranging from 1 3/8" to 4" and includes a ten-year limited warranty, underscoring its durability. For professionals looking for a reliable and flexible locking solution, the Corbin Russwin ML2002 LL BSP LC KIT stands out as a premier choice.

KIT - Classroom Intruder Mortise Lock Body, Includes ANSI Strike Plate and Armored Front, Handing is Field Reversible, No Deadbolt, No Trim, Grade 1, 622/US19/BSP Black Suede Powder Coat

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
