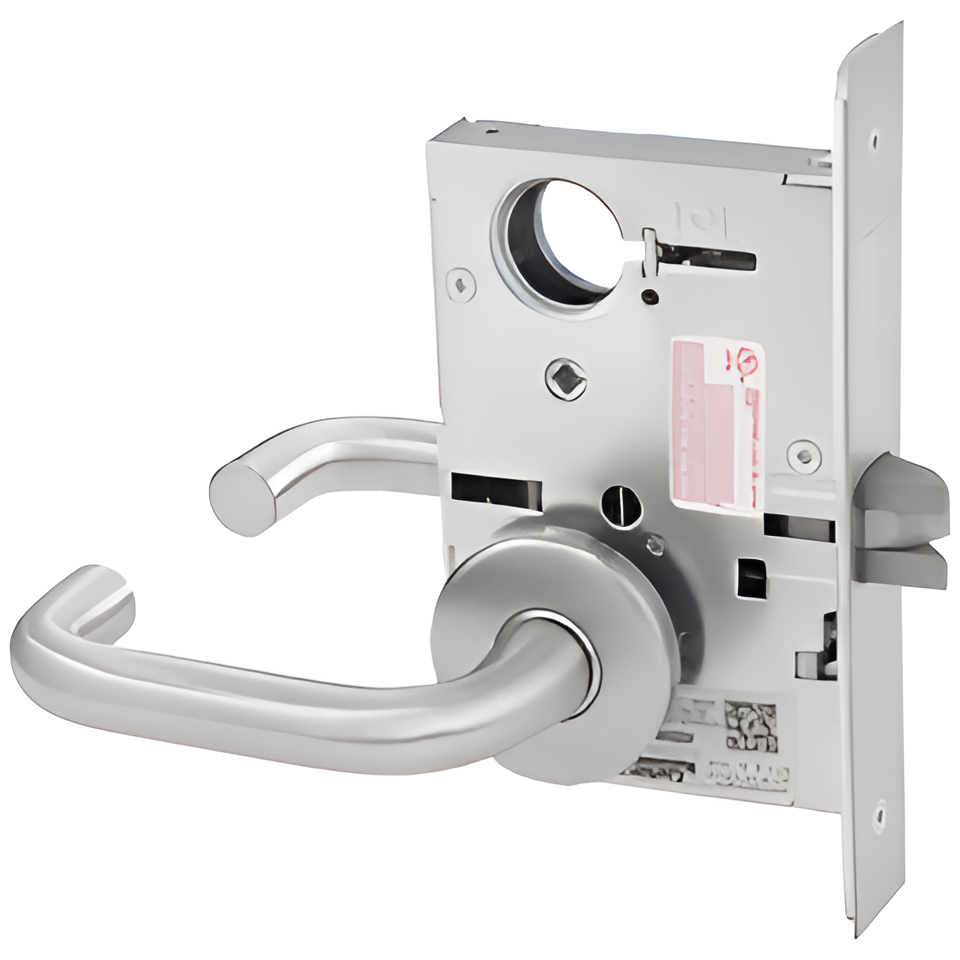

Corbin Russwin ML2002 LWA 626 LC V20 V01 KIT - Classroom Intruder Mortise Lock, Lustra Lever, Satin Chrome

Corbin Russwin ML2002 LWA 626 LC V20 V01 KIT is a top-of-the-line classroom intruder mortise lock designed for high-traffic environments. This lock features the Lustra lever with an elegant A rose trim, ensuring both functionality and aesthetic appeal. Crafted from heavy-gauge steel, the ML2000 Series meets ANSI/BHMA Grade 1 standards, making it robust enough to withstand daily abuse while providing reliable security. The ML2002 includes double visual indicators-green/red for the exterior and interior to clearly show vacant/occupied and locked/unlocked statuses. Its direct drive performance guarantees consistent torque and lever rotation, while the crisp lever return eliminates sagging. The lock is highly versatile, with the ability to integrate into existing Corbin Russwin key systems and access control platforms. Designed with sustainability in mind, the ML2002 utilizes EcoFlex® technology, creating up to 89% energy savings on electromechanical functions. The field-reversible latchbolt allows for easy re-handling without disassembly. With a ten-year limited warranty, this product not only offers peace of mind but also ensures a lower total cost of ownership. Available in a sleek satin chrome finish, the Corbin Russwin ML2002 is the perfect choice for ensuring safety and security in any educational setting.

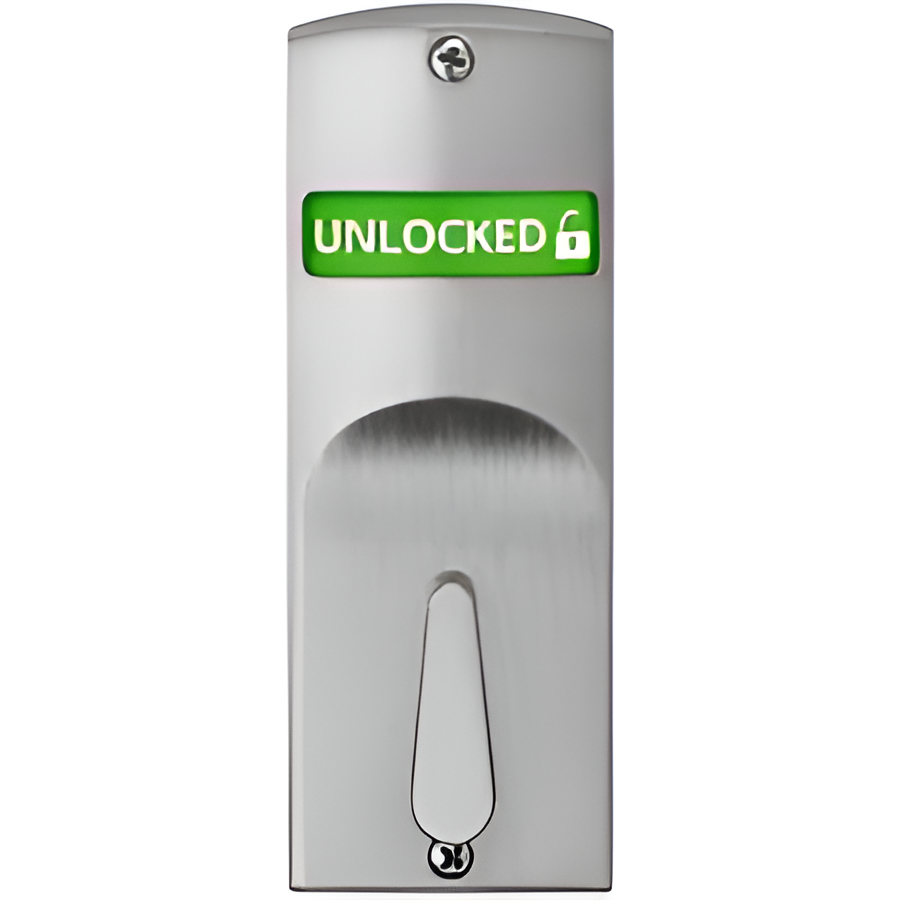

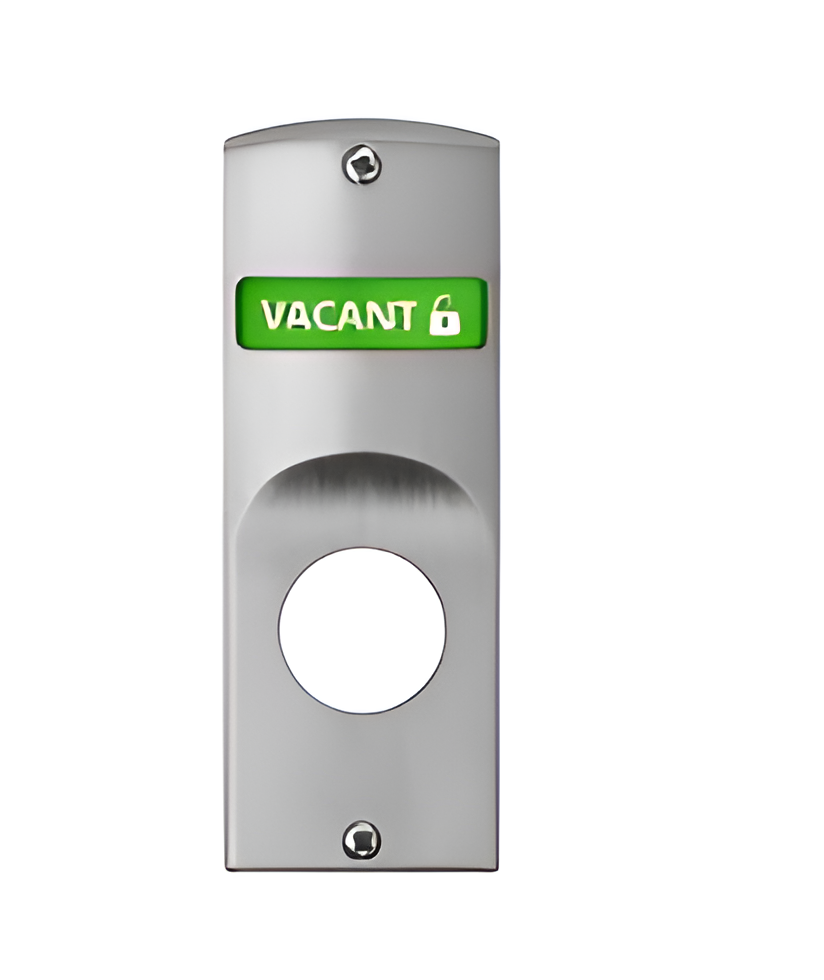

KIT - Classroom Intruder Mortise Lock, Lustra Lever with A Rose Trim, Less 2 Each 1-1/8 Mortise Cylinders, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
