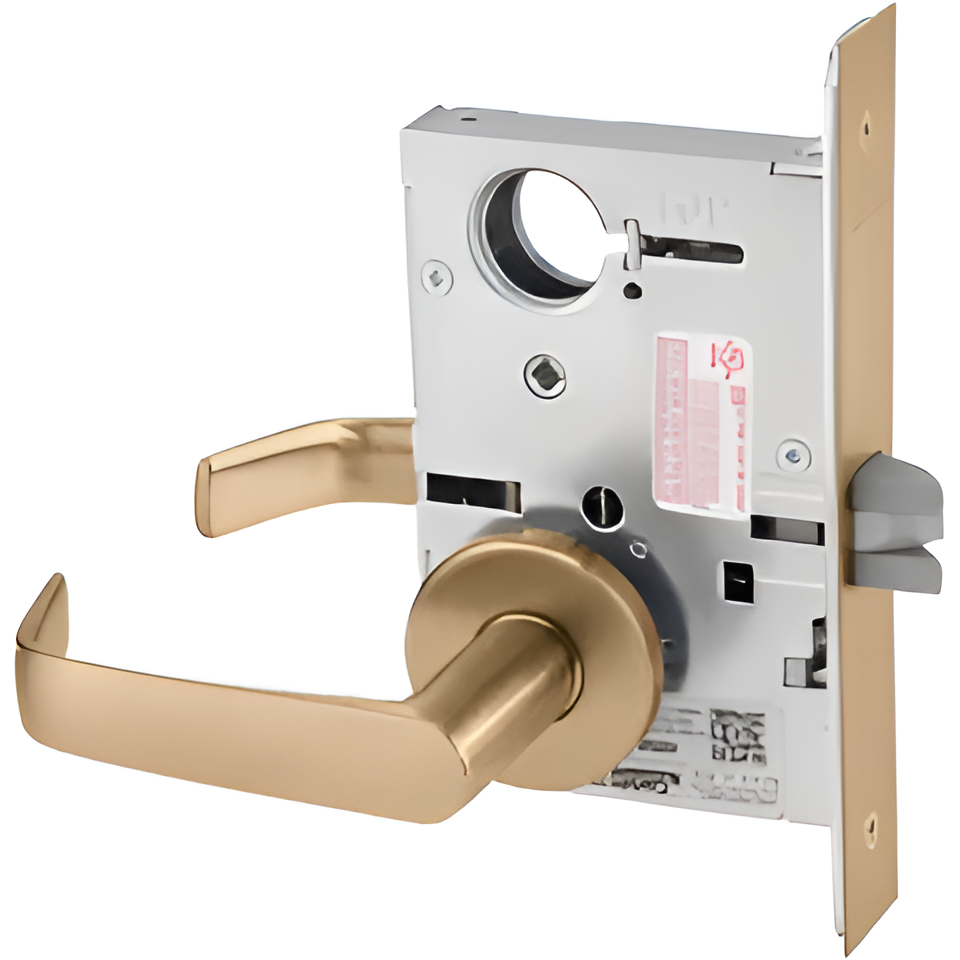

Corbin Russwin ML2002 NSA 612 LC KIT - Classroom Intruder Mortise Lock, Newport Lever, Satin Bronze, Field ReversibleCorbin Russwin ML2002 NSA 612 LC KIT is a robust classroom intruder mortise lock featuring the stylish Newport lever with A Rose trim. Designed for high-traffic environments, this ANSI/BHMA Grade 1 lock excels in durability and reliability, making it ideal for educational institutions and other facilities requiring top-notch security. The lock is constructed from heavy-gauge steel, ensuring it withstands the rigors of daily use. Equipped with a patented direct drive mechanism, the ML2002 provides consistent torque during lever operation, while its crisp lever return eliminates sagging. The lock is field reversible, allowing for easy re-handing without disassembly, enhancing its flexibility for various door installations. With an array of 63 functions available, including options for vandal resistance and behavioral health, this lock is adaptable to diverse security needs. The satin bronze finish not only adds an elegant touch but also ensures longevity. Installation is straightforward, as the lock fits standard door thicknesses ranging from 1 3/8" to 4". Backed by a ten-year warranty, the Corbin Russwin ML2002 delivers peace of mind with its reliable performance and security features, making it a valuable addition to any entrance.
KIT - Classroom Intruder Mortise Lock, Newport Lever with A Rose Trim, Less 2 Each 1-1/8 Mortise Cylinders, Handing is Field Reversible, ANSI Strike SS118, 612/US10 Satin Bronze
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2002 NSA 612 LC, ML2002NSA612LC
Ansi: A156.13, Series 1000
Baa Qualified: Yes
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 612/US10
Finish Code: 612
Finish Color: Satin Bronze, Satin/LT Bronze
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Intruder
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Newport
Leverknob Design: NS - Newport Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Cast
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
