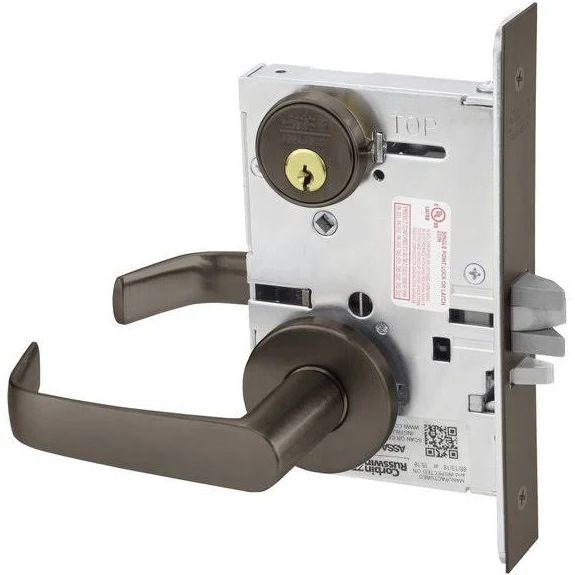

Corbin Russwin ML2002 NSA 613E L4 KIT is a robust classroom intruder mortise lock designed to excel in high-traffic environments. This lock features the elegant Newport lever with an A Rose trim, offering both style and functionality. The kit includes two standard 1-1/8 mortise cylinders and an A01 Clover cam, ensuring versatile application across various door types. Engineered with heavy-gauge steel, the ML2000 Series meets ANSI/BHMA Grade 1 standards, assuring durability and resistance against abuse. Its innovative direct drive performance provides consistent torque during lever rotation, while the crisp lever return eliminates sag, enhancing ease of use. The lock's field-reversible handing allows for quick adjustments without disassembly. With a dark oxidized satin bronze finish (613E), this lock seamlessly integrates into any décor. The compatibility with Corbin Russwin key systems and access control platforms further enhances its appeal for commercial applications. Occupancy indicators and EcoFlex® technology contribute to energy efficiency. This product's specifications include a standard backset depth of 2 3/4 inches and a maximum door thickness of 4 inches, accommodating a wide range of installations. Backed by a ten-year warranty, the Corbin Russwin ML2002 NSA L4 KIT is a reliable choice for securing educational and commercial spaces.

KIT - Classroom Intruder Mortise Lock, Newport Lever with A Rose Trim, 2 Each Standard 1-1/8 Mortise Cylinders, A01 Clover Cam, L4 Keyway 0-Bit, Handing is Field Reversible, ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
