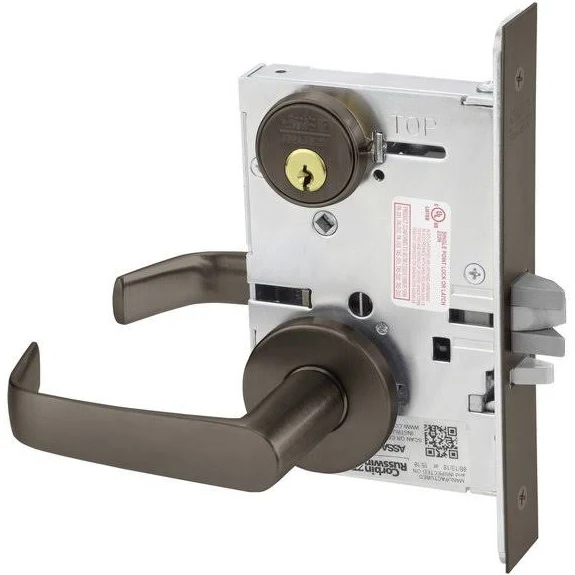

Corbin Russwin ML2002 NSA 613E L4 V20 V01 KIT is an advanced classroom intruder mortise lock that combines durability with innovative design. Engineered for high-traffic environments, this ANSI/BHMA Grade 1 lock is constructed from heavy-gauge steel, ensuring it can withstand the rigors of daily use. The Newport lever with A Rose trim offers both style and functionality, while the dual visual indicators provide clear status updates for occupied/vacant and locked/unlocked states. Equipped with two standard 1-1/8" mortise cylinders and an A01 Clover Cam, this lock features a field-reversible latchbolt for effortless adjustments without disassembly. The L4 keyway enhances security, and the UL listing ensures compliance with safety standards. The incorporation of EcoFlex® technology allows for significant energy savings, making it an environmentally friendly option. With its ability to integrate seamlessly into existing Corbin Russwin key systems and access control platforms, the ML2002 is versatile for various applications. Backed by a ten-year limited warranty, this lock is engineered for longevity and reliability. Available in a rich Dark Oxidized Satin Bronze finish, it not only enhances security but also complements the aesthetics of any building.

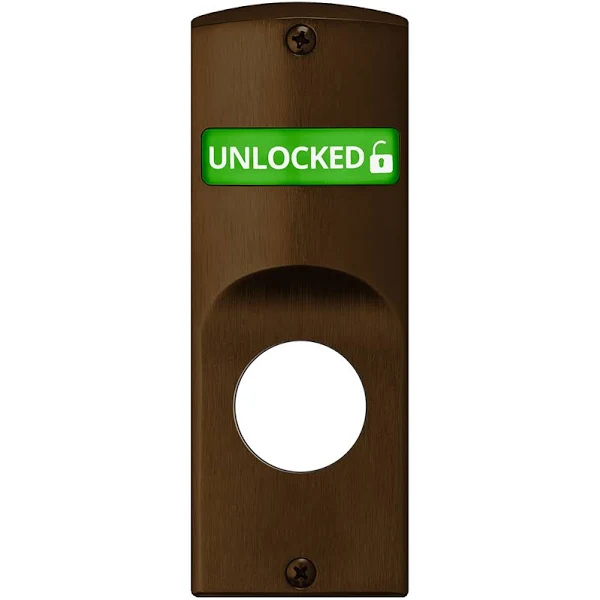

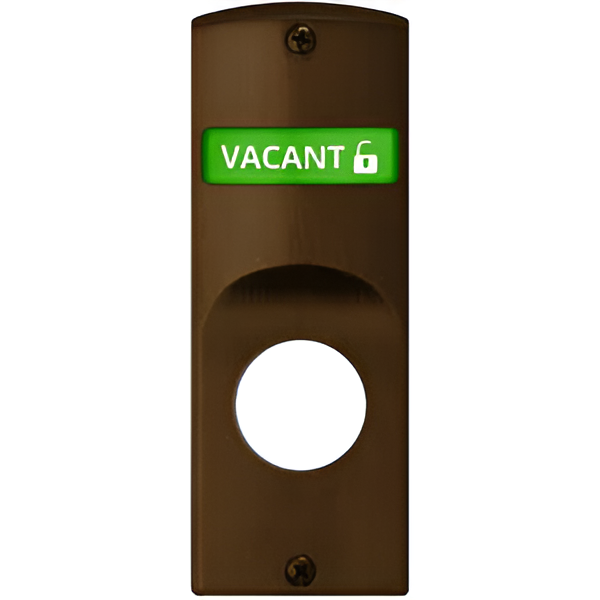

KIT - Classroom Intruder Mortise Lock, Newport Lever with A Rose Trim, 2 Each Standard 1-1/8 Mortise Cylinders, A01 Clover Cam, L4 Keyway 0-Bit, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 613E/US10BE Oil Rubbed Bronze

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
