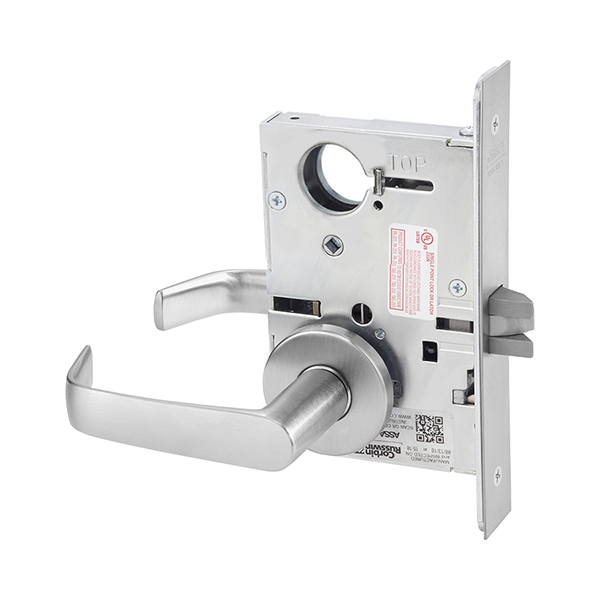

Corbin Russwin ML2002 NSA 625 LC KIT - Classroom Intruder Mortise Lock combines advanced security with exceptional design, ideal for high-traffic areas. This ANSI/BHMA Grade 1 mortise lock showcases a robust construction crafted from heavy-gauge steel, ensuring durability against intrusion and abuse. The lock features the Newport lever design, complemented by an A Rose trim, providing both functionality and aesthetic appeal. With a field-reversible handing, the ML2002 offers flexibility without the need for disassembly, simplifying installation. Its direct drive performance guarantees consistent torque during lever operation, enhanced by a crisp lever return that eliminates sag. The lock integrates seamlessly with existing Corbin Russwin key systems and access control platforms, making it a versatile choice for various applications. The lock is designed to accommodate standard door thicknesses of 1-3/8" to 4" and supports a range of cylinder formats. Available in a bright chrome finish (625/US26), it not only meets but exceeds ANSI/BHMA Grade 1 requirements, ensuring a lower total cost of ownership through long-lasting performance. With a ten-year limited warranty and options for occupancy indicators, the Corbin Russwin ML2002 is a reliable solution for modern security needs.
KIT - Classroom Intruder Mortise Lock, Newport Lever with A Rose Trim, Less 2 Each 1-1/8 Mortise Cylinders, Handing is Field Reversible, ANSI Strike SS118, 625/US26 Bright Chrome
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
Benefits:
Specifications:
Finishes:
Alternate Codes: ML2002 NSA 625 LC, ML2002NSA625LC
Ansi: A156.13, Series 1000
Baa Qualified: Yes
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 625/US26
Finish Code: 625
Finish Color: Bright Chrome, Polished Chrome
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Intruder
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Newport
Leverknob Design: NS - Newport Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Cast
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
