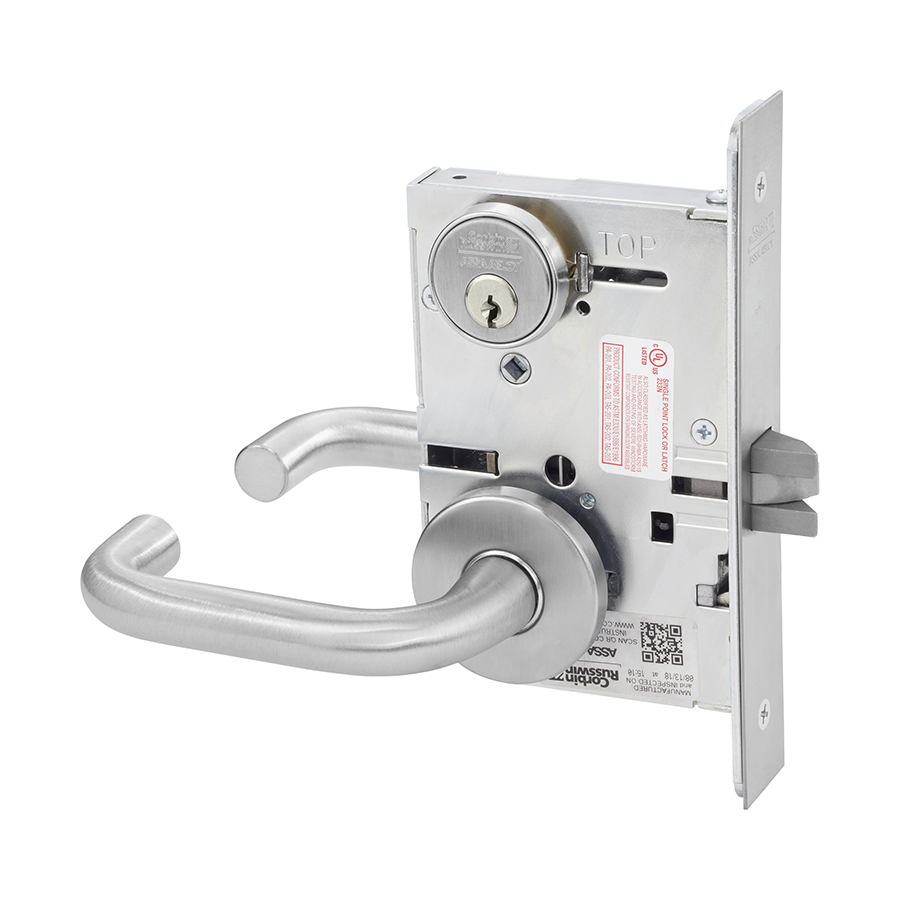

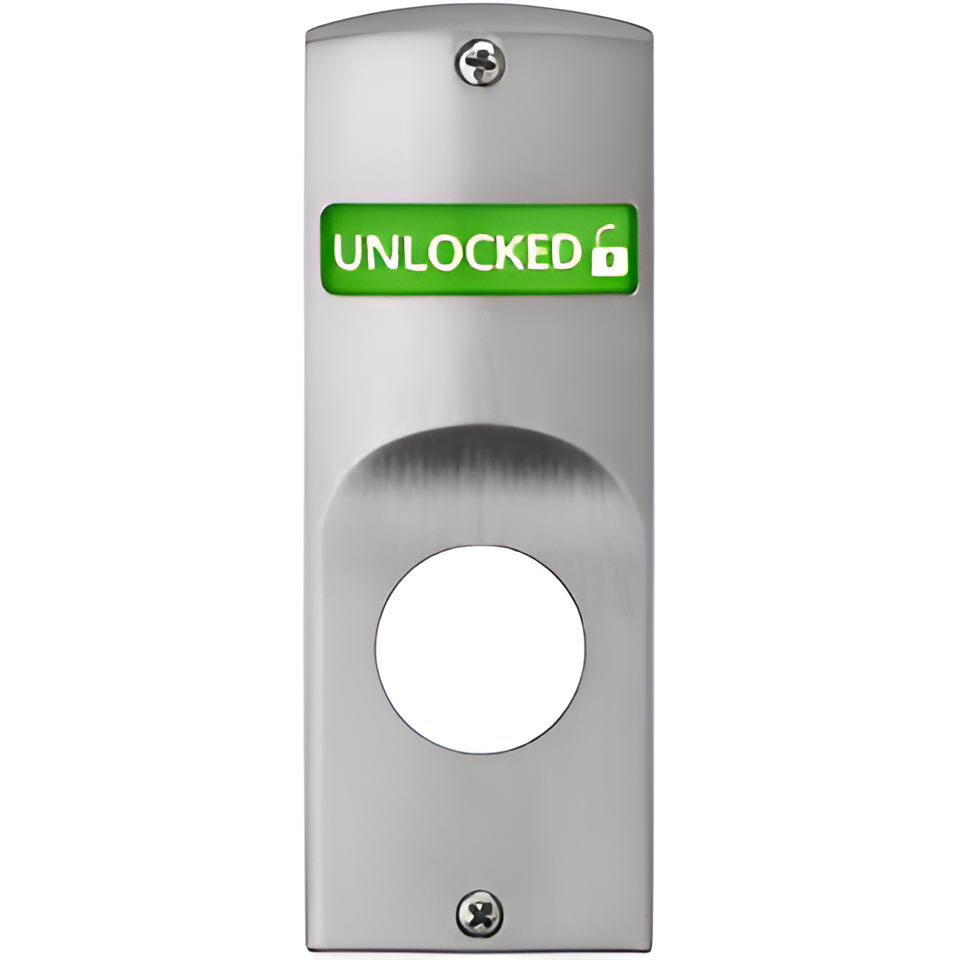

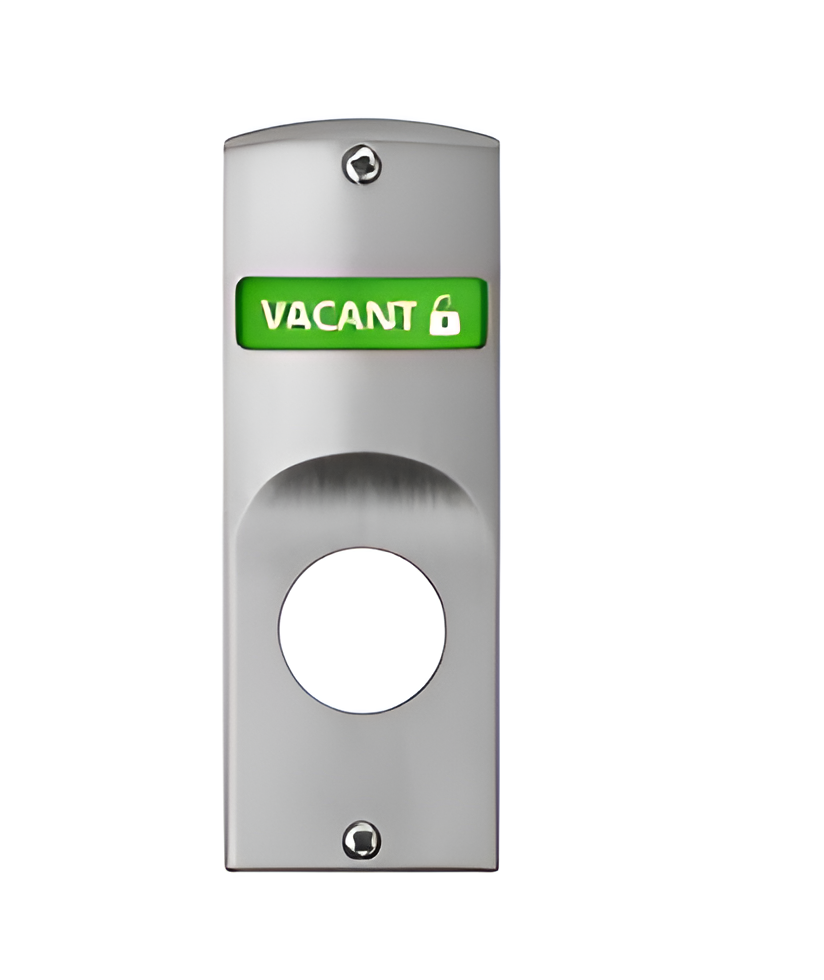

Corbin Russwin ML2003 LWA 626 L4 V20 V01 Lustra Classroom Mortise Lock Kit with Indicators and Satin Chrome FinishCorbin Russwin ML2003 LWA 626 L4 V20 V01 KIT is a robust classroom mortise lock designed for high-traffic environments. This lock features a Lustra lever with an A Rose trim, offering a blend of style and functionality. The standard 1-1/8 mortise cylinder and A01 Clover cam ensure reliable performance, while the L4 keyway provides enhanced security. Equipped with dual indicators, the V20 outside indicator displays vacant/occupied status in green/red, and the V01 inside indicator shows locked/unlocked status, enhancing user access awareness. Constructed from heavy-gauge steel, the ML2003 is engineered to withstand abuse and intrusion attempts, making it ideal for educational institutions and commercial facilities. With a field-reversible latchbolt, installation and adjustment are straightforward, eliminating the need for disassembly. Its direct drive performance ensures consistent torque during lever operation, while the crisp lever return prevents sagging over time. The lock complies with ANSI/BHMA Grade 1 standards, promising durability and longevity. Available in a satin chrome finish (626), this lock harmonizes with various architectural styles. Backed by a ten-year limited warranty, the Corbin Russwin ML2003 LWA lock offers peace of mind and reliable security for any classroom setting.
KIT - Classroom Mortise Lock, Lustra Lever with A Rose Trim, Standard 1-1/8 Mortise Cylinder, A01 Clover Cam, L4 Keyway 0-Bit, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2003 LWA 626 L4 V20 V01, ML2003LWA626L4V20V01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Locks
Door Indicators: Double Visual Indicator, Exterior Indicator - Green/Red, Exterior Indicator - Vacant/Occupied, Interior Indicator - Green/Red, Interior Indicator - Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Classroom
Keyway: Corbin L4
Lever Design: Lustra
Material: Wrought
Rose/ Escutcheon: A Rose
Series: ML2000
