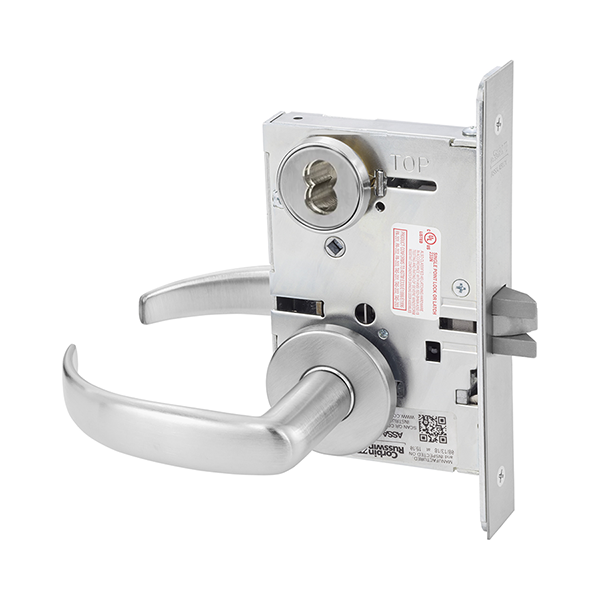

Corbin Russwin ML2003 PSA 626 CL6 Princeton Lever Mortise Lock, LFIC 6-Pin, Satin Chrome, Field ReversibleCorbin Russwin ML2003 PSA 626 CL6 KIT is a robust classroom mortise lock designed for high-traffic environments. This lock features the elegant Princeton lever with an A Rose trim, ensuring both functionality and aesthetic appeal. Constructed from heavy-gauge steel, the ML2003 meets the stringent ANSI/BHMA Grade 1 standards, making it ideal for abusive conditions. One of its standout features is the field-reversible handing, allowing for easy adjustment without disassembly. The lock is prepped for a large format interchangeable core (LFIC) with a 6-pin configuration, providing versatility for various keying systems, including Corbin Russwin's patented options. The crisp return of the lever eliminates sag, ensuring reliable operation. In addition to its mechanical strength, the ML2003 PSA offers innovative status indicators, which provide clear visibility of the door’s locked or unlocked status. With a durable satin chrome finish, this lock is not only stylish but also built to last, supported by a ten-year warranty. Specifications include a backset depth of 2 3/4", a maximum door thickness of 4", and compatibility with a variety of door types. Whether for educational facilities or commercial buildings, the Corbin Russwin ML2003 PSA 626 CL6 KIT delivers security and style in one dependable package.
KIT - Classroom Mortise Lock, Princeton Lever with A Rose Trim, LFIC Large Format Interchangeable Core 6-Pin Prep, A01 Clover Cam, Less IC Core, Handing is Field Reversible, ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4"
- Maximum Backset: 2 3/4"
- Maximum Door Thickness: 4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 611 - Bright Bronze
- 612 - Satin Bronze
- 613 - Dark Oxidized Satin Bronze, Oil Rubbed
- 613E - Dark Oxidized Satin Bronze, Equivalent
- 613L - Dark oxidized satin bronze, clear coated
- 618 - Bright Nickel Plated
- 619 - Satin Nickel Plated
- 619C - Satin nickel plated with MicroShield
- 625 - Bright Chromium Plated
- 626 - Satin Chromium Plated
- 626C - Satin Chromium Plated with MicroShield
- 629 - Bright Stainless Steel
- 630 - Satin Stainless Steel
- 630C - Satin stainless steel with MicroShield
- 722 - Black Oxidized Bronze, Oil Rubbed
- BSP - Black suede powder coated/sprayed
- WSP - White suede powder coated/sprayed
Attributes
Alternate Codes: ML2003 PSA 626 CL6, ML2003PSA626CL6
Ansi: A156.13, Series 1000
Baa Qualified: Yes
Base Series: ML2000
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 6-Pin, Less Core, LFIC - Corbin
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Design: Princeton
Leverknob Design: PS - Princeton Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Cast
Of Keys: 2
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Pins: 6
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Series: ML2000
Ship Weight: 4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
