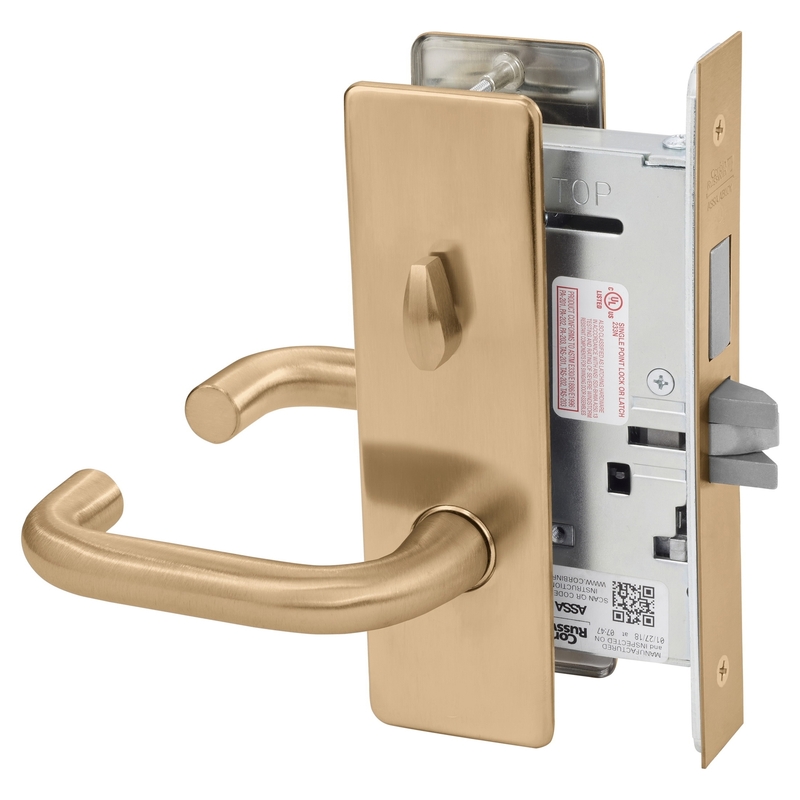

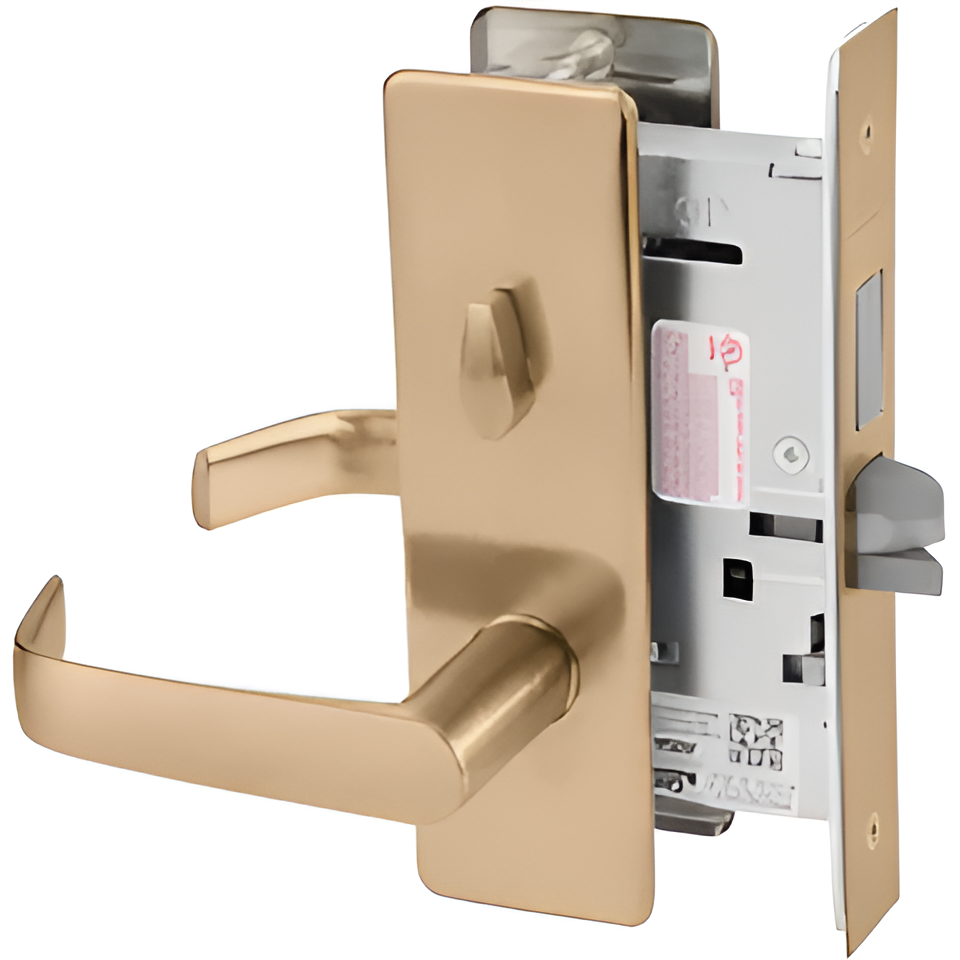

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2030 LWM 612, ML2030LWM612
Ansi Function: F19 - Privacy/Bed/Bath
Application: Complete Lock
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4" Latchbolt, 1" Deadbolt
Bolt Protection: 3/4" Latchbolt, 1" Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Usa
Country of origin: USA
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Finish: 612/US10
Finish Code: 612
Finish Color: Satin Bronze, Satin/LT Bronze
Finish Description: Satin Bronze Clear Coated
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 30-Privacy Bedroom or Bathroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible

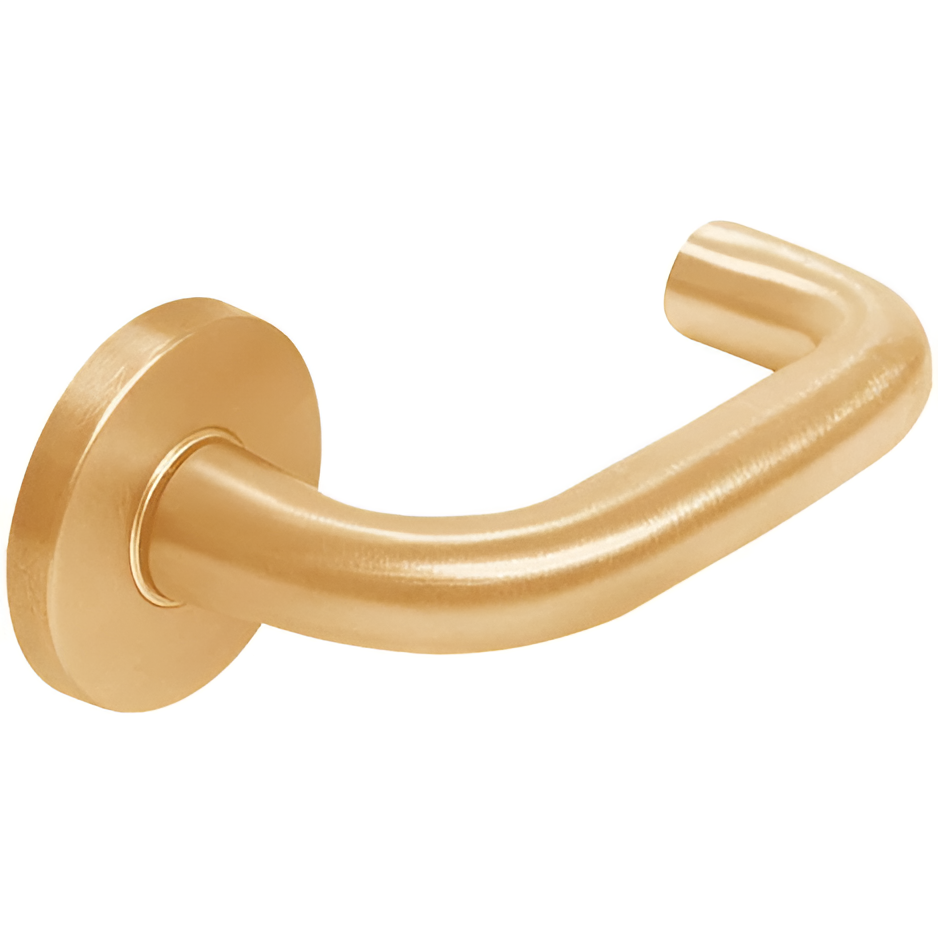

Lever Design: Lustra
Lever Knob Design: LW - Lustra
Leverknob Design: LW - Lustra
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Material: Wrought
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: M - Escutcheon
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M - Escutcheon
Screws: Combination
Series: ML2000
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
