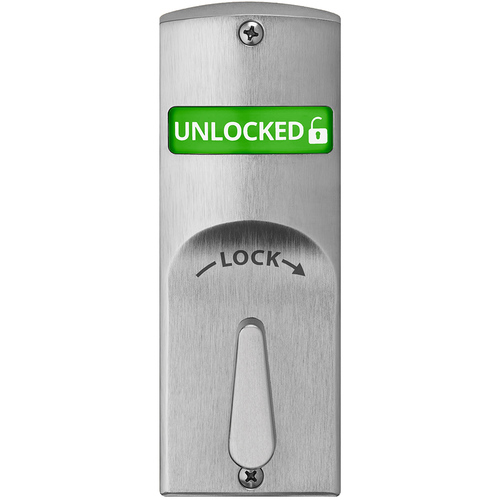

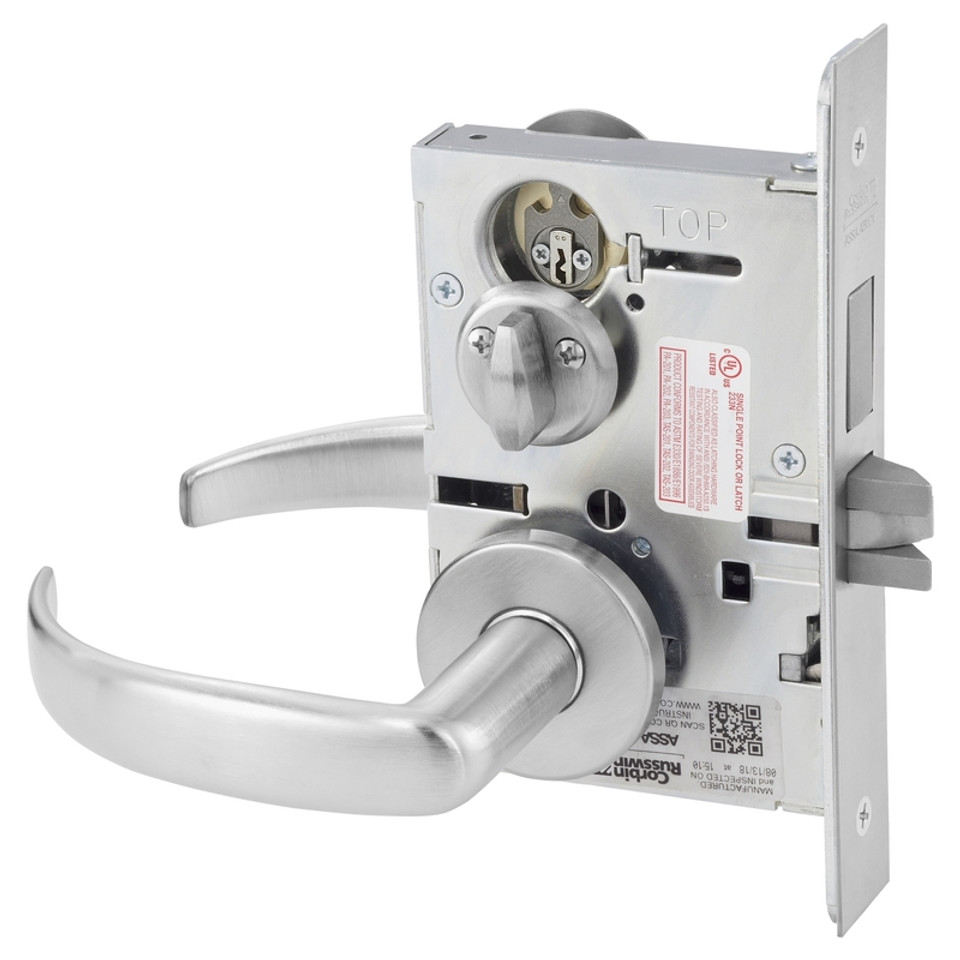

Corbin Russwin ML2030 PSA 626 V20 V01-EMB-LH Privacy with Deadbolt Mortise Lock is engineered for high-traffic environments, ensuring security and reliability. This Grade 1 mortise lock features a robust construction of heavy-gauge steel, making it ideal for both commercial and residential applications. The Princeton lever with A Rose trim adds an elegant touch, while the integrated V20 outside indicator clearly displays vacant/occupied status in green and red, and the V01 engraved inside indicator indicates locked/unlocked status. Designed for versatility, the ML2000 series supports a variety of functions, including 63 mechanical and electrified options, and integrates seamlessly with existing Corbin Russwin key systems and access control platforms. Its direct drive performance ensures consistent torque during operation, while the field-reversible latchbolt makes re-handing effortless without disassembly. With a UL listing for safety, this lock withstands intrusion attempts and abuse, thanks to its specialized security trim. The ML2030 also boasts EcoFlex® technology, promoting energy efficiency with up to 89% energy savings on electromechanical functions. Backed by a ten-year limited warranty, the Corbin Russwin ML2030 is a reliable choice for anyone seeking durability and peace of mind in their locking solutions.

Privacy with Deadbolt Mortise Lock, Princeton Lever with A Rose Trim, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Engraved Inside Indicator (Locked/Unlocked, Green/Red)(Left Hand LH/LHR), ANSI Strike SS118, 626/US26D Satin Chrome

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
