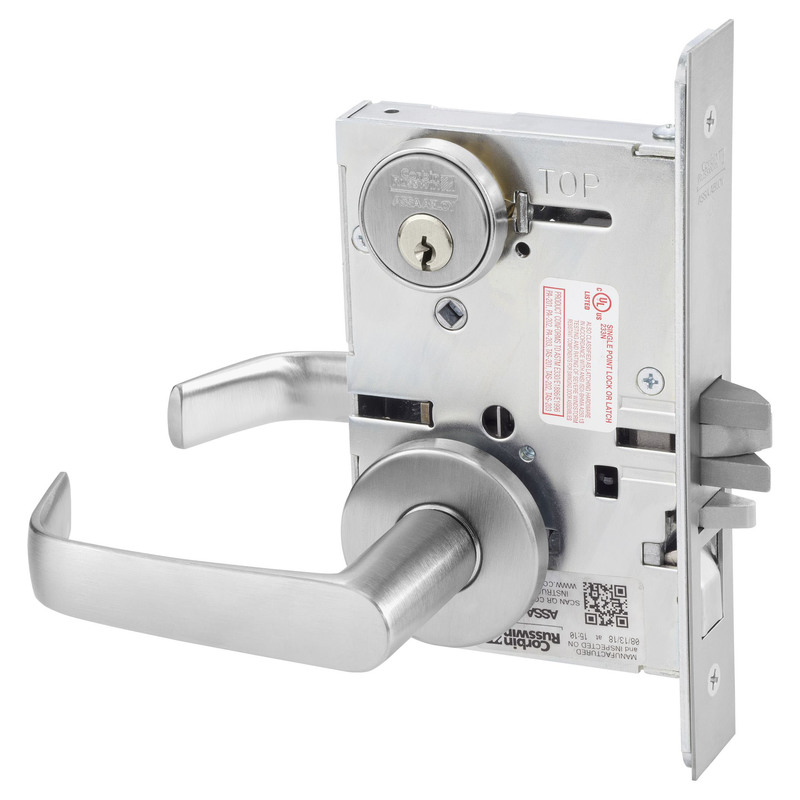

Corbin Russwin ML2051NSA626 Single Cylinder Office Mortise Lock with Newport Lever and A Rose L4 Keyway in Satin Chrome Finish delivers a blend of functionality and style, ideal for commercial and institutional settings. This lockset features direct drive performance, ensuring consistent torque and force during lever rotation, while the crisp lever return eliminates sag, providing reliable operation over time. Designed to accommodate a 2-3/4" backset and a door thickness of 1-3/4", this lock is versatile for various applications. The Newport lever design combined with an A Rose escutcheon enhances its aesthetic appeal, making it suitable for modern interiors. It integrates seamlessly with existing Corbin Russwin key systems, including the patented Access 3® and Pyramid, while also supporting various access control platforms. With an impressive selection of 63 mechanical and electrified functions, the ML2051NSA626 meets diverse security needs, including vandal-resistant and behavioral health options. Constructed from durable wrought brass and finished in sleek satin chrome, it is not only functional but also built to last. Backed by a limited 10-year warranty, this mortise lockset is a reliable choice for any office environment, ensuring both security and style.
Since the early 1800's, Corbin Russwin has produced high-quality, innovative door hardware for commercial and institutional facilities. Corbin Russwin, an ASSA ABLOY Group brand, remains a leader in locks, key systems, exit devices, door closers, decorative hardware and electronic access control.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2051-NSA-626, ML2051NSA626
Ansi Function: F04 - Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Backset: 2 3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4" Latchbolt
Bolt Protection: 3/4" Latchbolt
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Conventional Cylinder
Design: Newport Lever and A Rose
Dimension: 4-13/16" Lever with 2-5/8" Projection and 2-1/4" Rose
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Hazardous Material: NO
Keying: 0 Bitted
Keys: Blank
Keyway: L4
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: NS - Newport
Leverknob Design: NS - Newport Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Wrought Brass
No Of Inners: 1
No Of Pins: 6 Pin
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Height: 4.5"
Pack Length: 10"
Pack Qty: 1
Pack Width: 7.5"
Pins: 6
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series
Ship Weight: 4 lbs.
Std Keyway: L4
Std Strike Height: 4-7/8"
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Straight Lip Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing Type: UL and cUL - UL10C Positive Pressure
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
