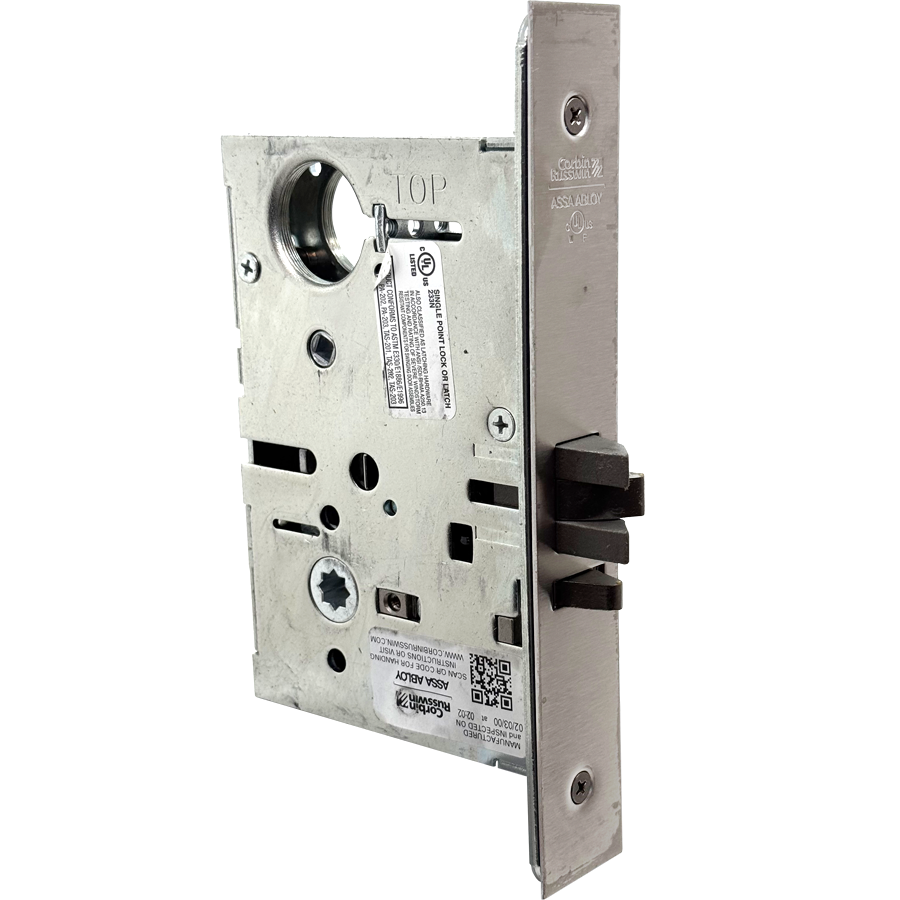

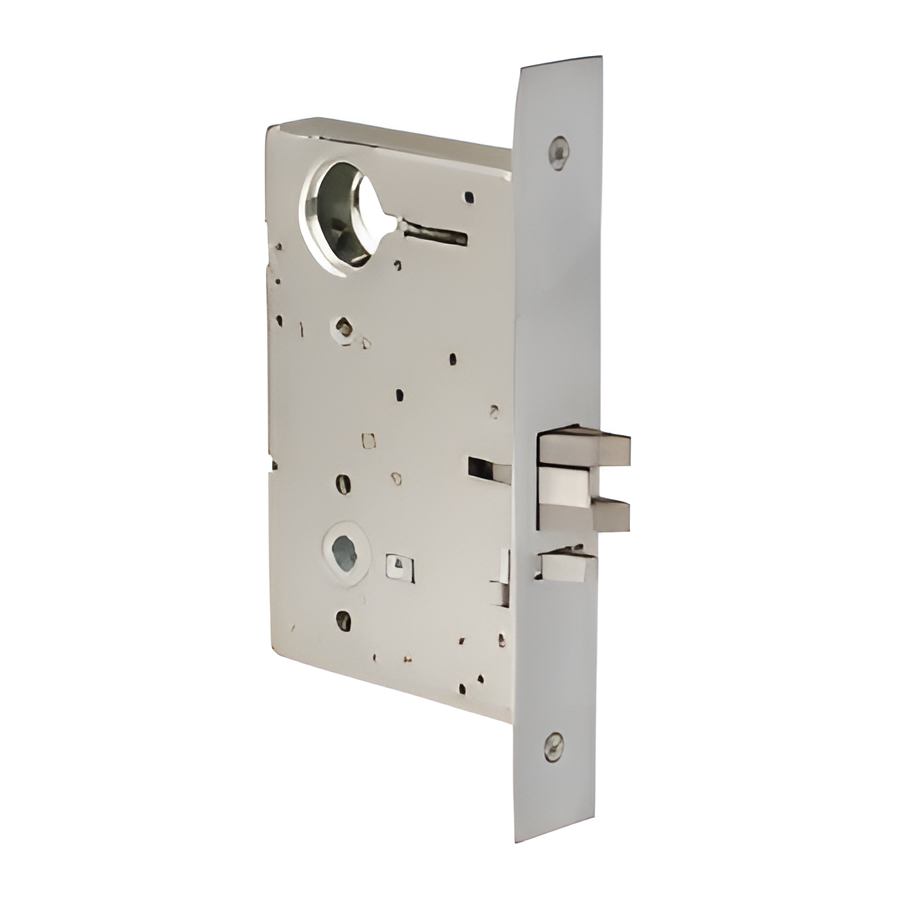

Corbin Russwin ML2054 LL 630 LC Multi-Function Mortise Lock Body, ANSI Strike Plate, Grade 1, Stainless Steel

Corbin Russwin ML2054 LL 630 LC Multi-Function Entry/Office with Auxiliary Latch Mortise Lock Body delivers robust security and versatility, perfect for high-traffic environments. This ANSI/BHMA Grade 1 mortise lock is crafted from heavy-gauge stainless steel, ensuring durability against wear and tear while featuring an attractive satin finish (630/US32D). Designed for ease of use, the ML2054 offers field-reversible handing, allowing for straightforward installation without disassembly. It includes an ANSI strike plate and armored front, enhancing its resilience against forced entry attempts. The lock body integrates seamlessly with both new and existing Corbin Russwin key systems, ensuring flexibility in security management. With a backset depth of 2 3/4 inches and compatibility with door thicknesses ranging from 1 3/8 inches to 4 inches, the ML2054 is adaptable to various door types, including wood and hollow metal. Its innovative direct drive performance guarantees consistent torque during operation, while the crisp lever return eliminates sagging. This mortise lock is also backed by a ten-year limited warranty, underscoring its quality and longevity. Ideal for offices, commercial buildings, and other facilities demanding reliable security, the Corbin Russwin ML2054 is a smart investment for any security-conscious professional.

Multi-Function Entry/Office with Auxiliary Latch Mortise Lock Body, Includes ANSI Strike Plate and Armored Front, Field Reversible Handing, No Trim, Grade 1, 630/US32D Stainless Steel

The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.

Features:

• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

Benefits:

• Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
• Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
• Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
• Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
• Sustainable: Environmental product declaration (EPD) in accordance with ISO14025

Specifications:

• ANSI/BHMA Code: A156.13
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Maximum Door Thickness: 4"
• Minimum Backset: 2 3/8"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Straight Lip
• UL Listed: Yes
• Warranty: 10-year limited warranty

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 611 - Bright Bronze
• 612 - Satin Bronze
• 613 - Dark Oxidized Satin Bronze, Oil Rubbed
• 613E - Dark Oxidized Satin Bronze, Equivalent
• 613L - Dark oxidized satin bronze, clear coated
• 618 - Bright Nickel Plated
• 619 - Satin Nickel Plated
• 619C - Satin nickel plated with MicroShield
• 625 - Bright Chromium Plated
• 626 - Satin Chromium Plated
• 626C - Satin Chromium Plated with MicroShield
• 629 - Bright Stainless Steel
• 630 - Satin Stainless Steel
• 630C - Satin stainless steel with MicroShield
• 722 - Black Oxidized Bronze, Oil Rubbed
• BSP - Black suede powder coated/sprayed
• WSP - White suede powder coated/sprayed
